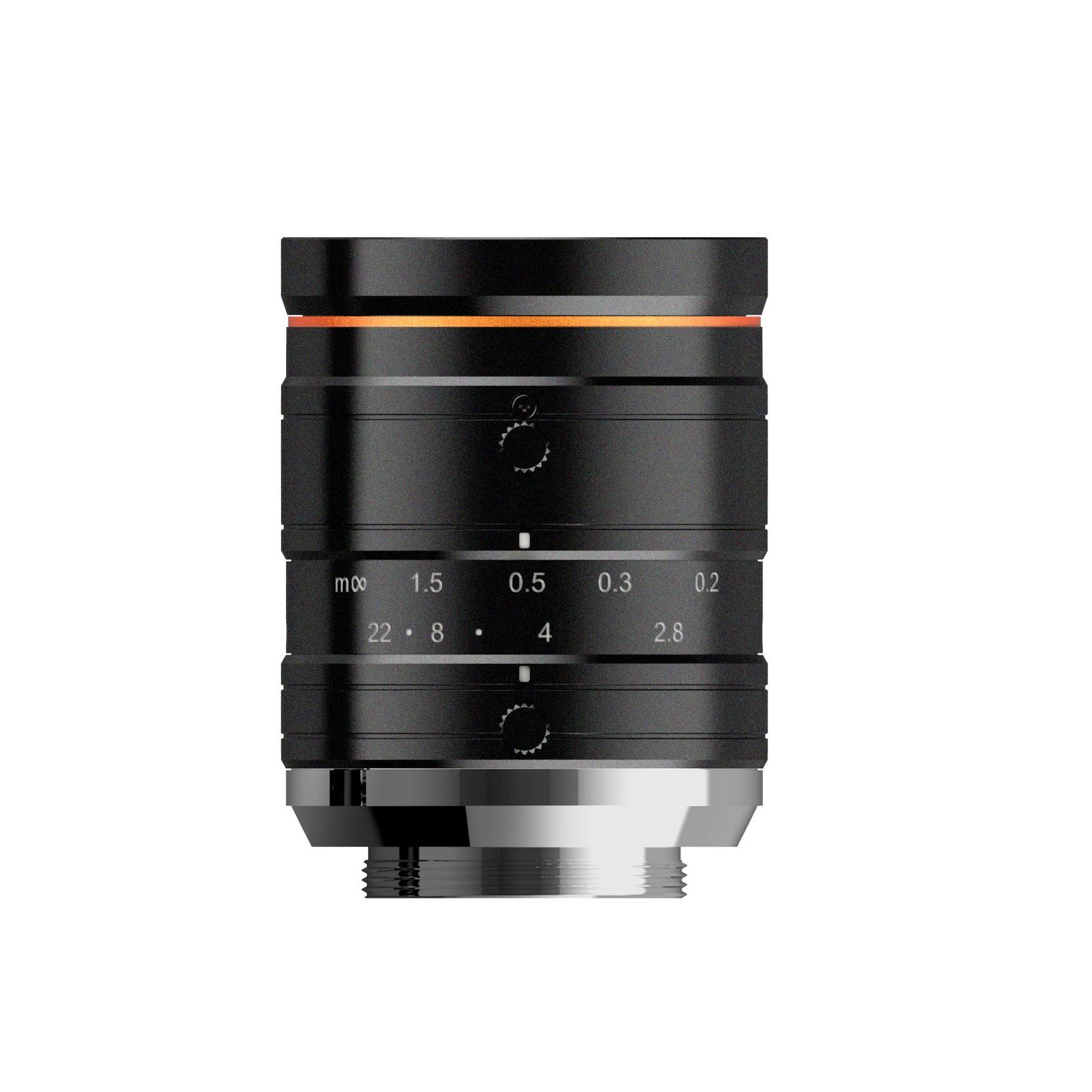

MVL-KF3528M-12MPE

HIKROBOT Lens, FA Series, KF

35mm, F2.8 ~ F22, Ø 17.6mm (1.1''), C-Mount

HIKROBOT Lens, FA Series, KF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

Data SheetDrawing

SKU: MVL-KF3528M-12MPE Categories: , Tags: , , ,
Compare
  • Ultra high resolution and consistency of image clarity
  • Super high image peripheral brightness ratio
  • Lower distortion
  • Excellent optical properties are maintained at different object distances

Model Product Model MVL-KF3528M-12MPE
Type 35mm, F2.8, 1.1″, 12MP Lens, C-Mount
Performance Focal length 35 mm
F-Number F2.8 ~ F22
Image Size Φ17.6 mm(1.1”)
Distortion 0.02%
Minimum Object Distance 0.2 m
Field of View D(17.52mm):28.3° H(14.14mm):22.6° V(10.35mm):17°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M35.5 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm

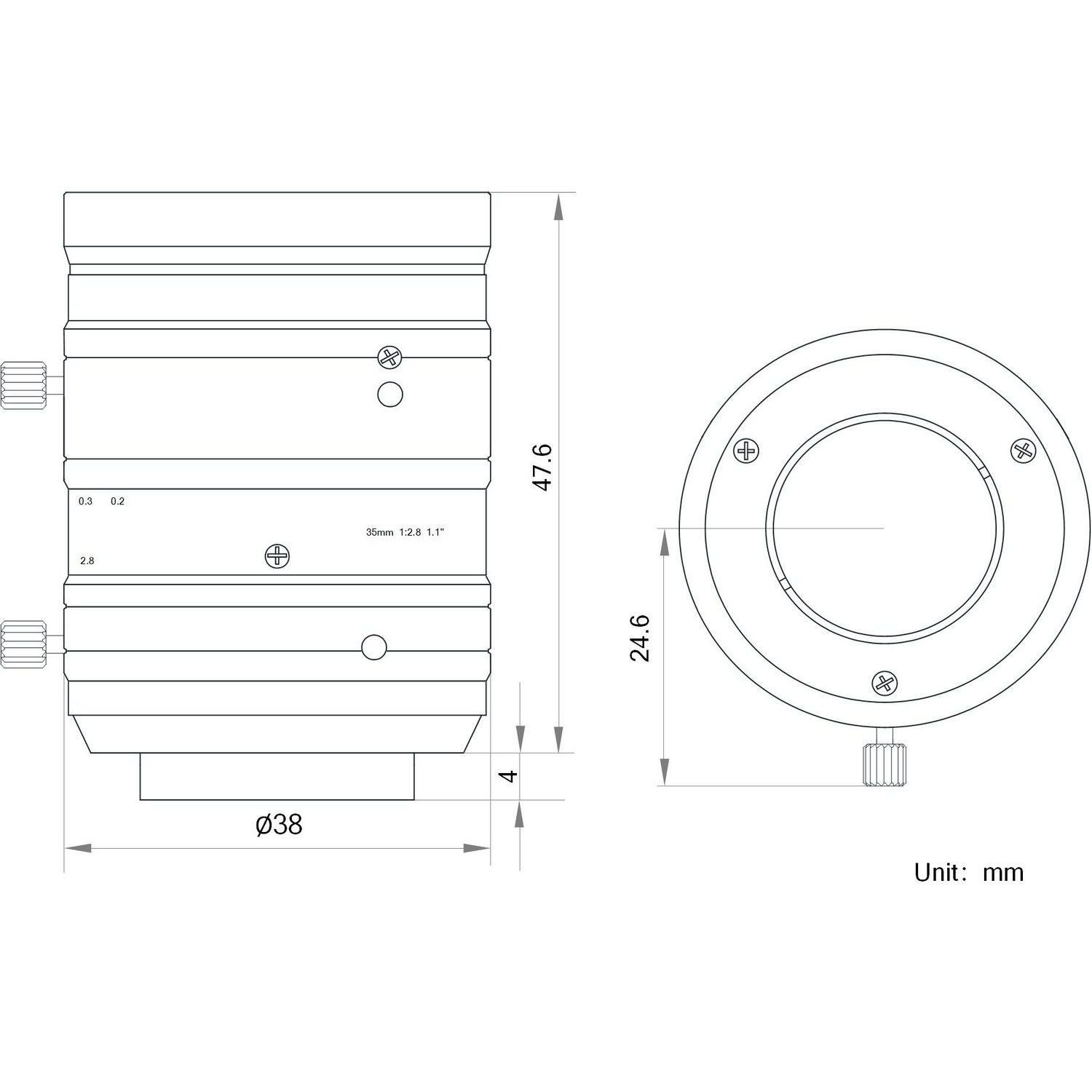

Dimension Φ38 × 47.6 mm
Weight 107 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
