| Model | HN-1226-20M-C1/1X | |
| Sensor Size | 1″ | |
| Focal Length (mm) | 12 | |
| Max. Aperture Ratio | 1：2.6 | |
| Max. Image Format (mm) | 12.8 x 9.6(Φ16) | |
| F/No. | F2.6 – F16.0 | |
| Working Distance | 0.1m – Inf. | |
| Control | Iris | Manual |
| Focus | Manual | |
| Object Dimension at M.O.D. (mm) | 1″ | 123.2 x 91.9 |
| 2/3″ | 84.1 x 62.7 | |
| 1/1.8″ | 68.5 x 51.2 | |
| Angle of View (D×H×V°) | 1″ | 67.4 x 56.7 x 44.1 |
| 2/3″ | 49.8 x 40.7 x 31.0 | |
| 1/1.8″ | 41.5 x 33.7 x 25.5 | |
| Distortion | 1″ | 0.0% |
| 2/3″ | -1.1% | |
| 1/1.8″ | -1.0% | |
| Back Focal Length | 10.6 mm | |
| Mount | C-Mount | |
| Filter Size | M37.5 P=0.5mm | |

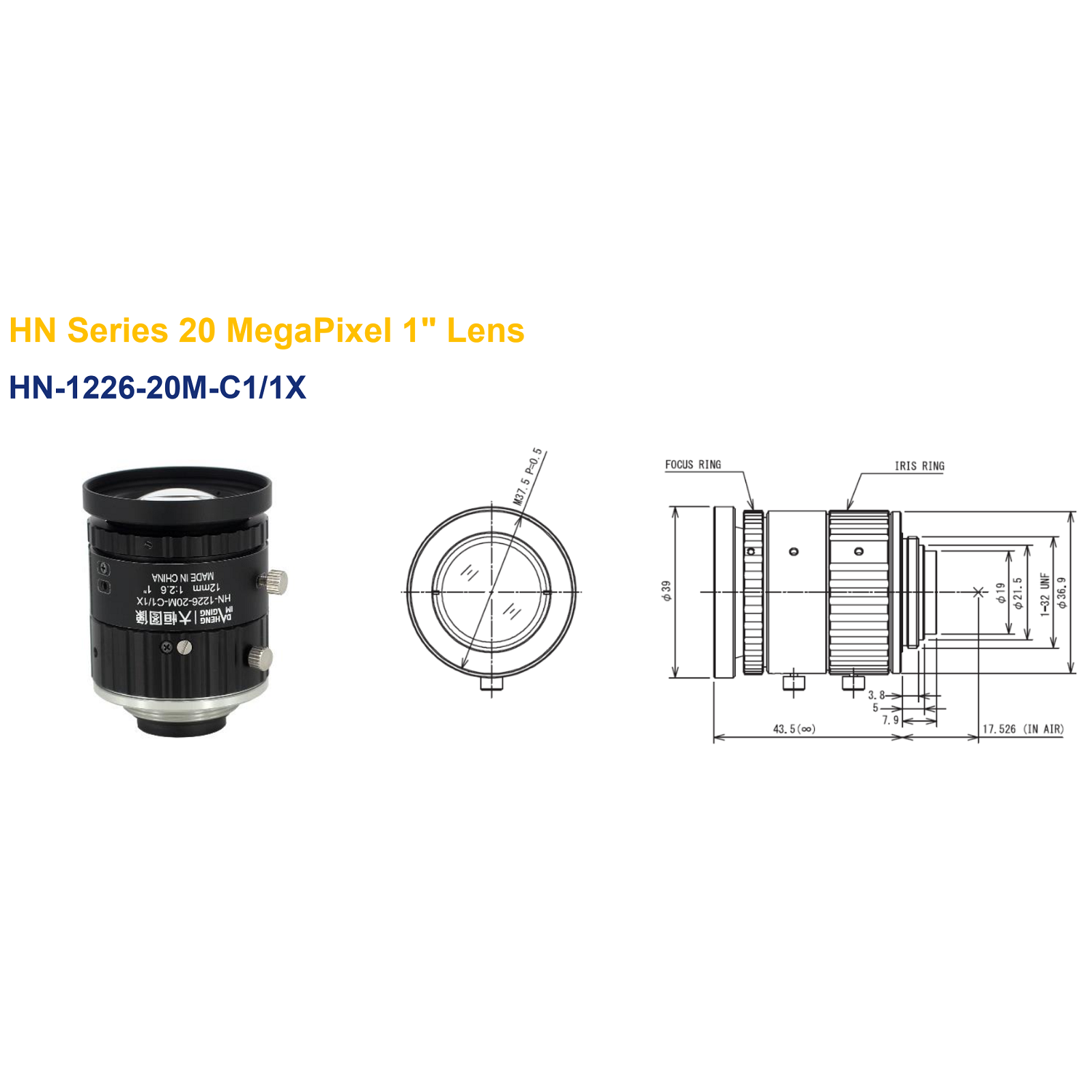

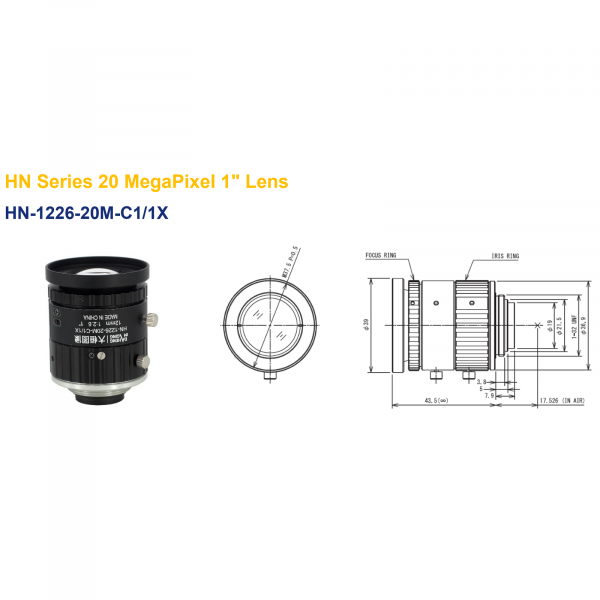

| Dimensions (mm) | Φ39 x 43.5 | |
| Weight | 98.4 g | |
| Operating Temperature | -10°C – +50°C | |

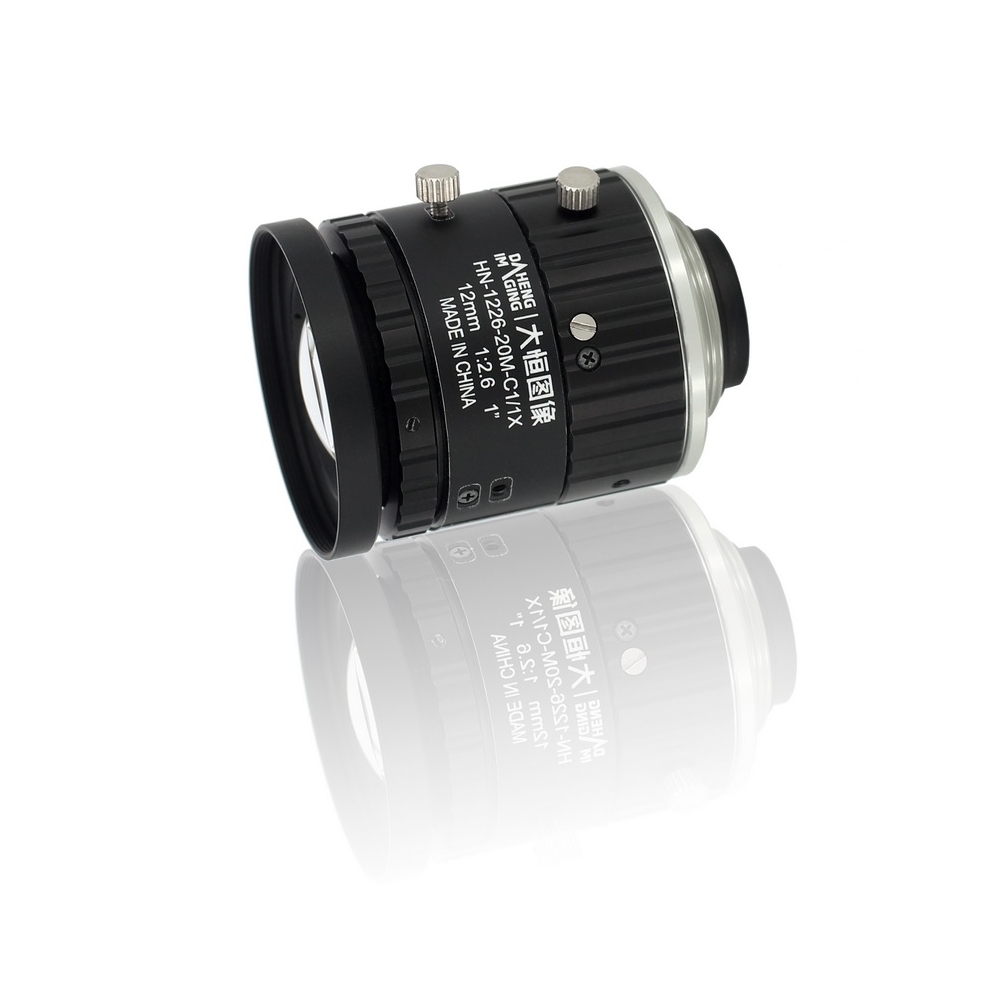

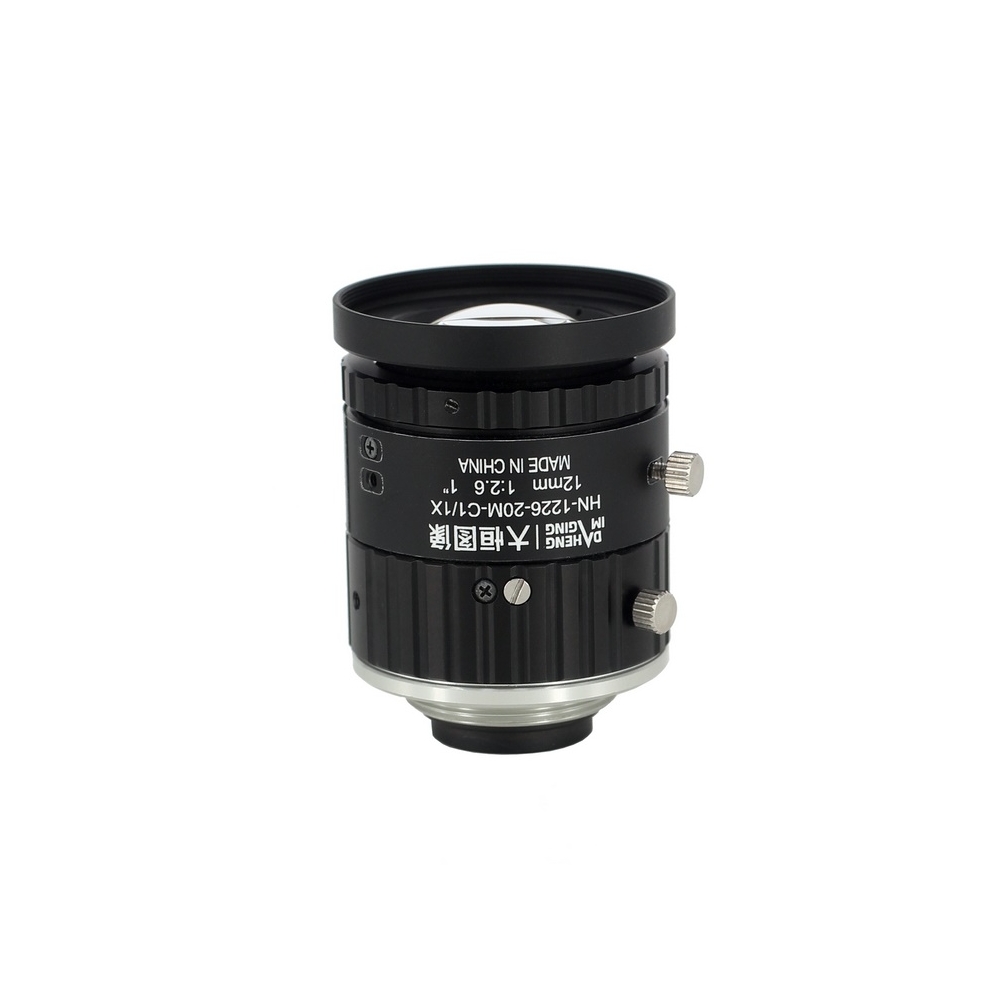

HN-1226-20M-C1/1X
Anti-Shock/Vibration Machine-Vision Lens
Anti-Shock/Vibration Machine-Vision Lens
- Compact & Lightweight
- Shorter Working Distance
- Floating Design
- Nominal Distortion Design
- Ensure Corner Brightness
- Vibration Resistance: 5G
