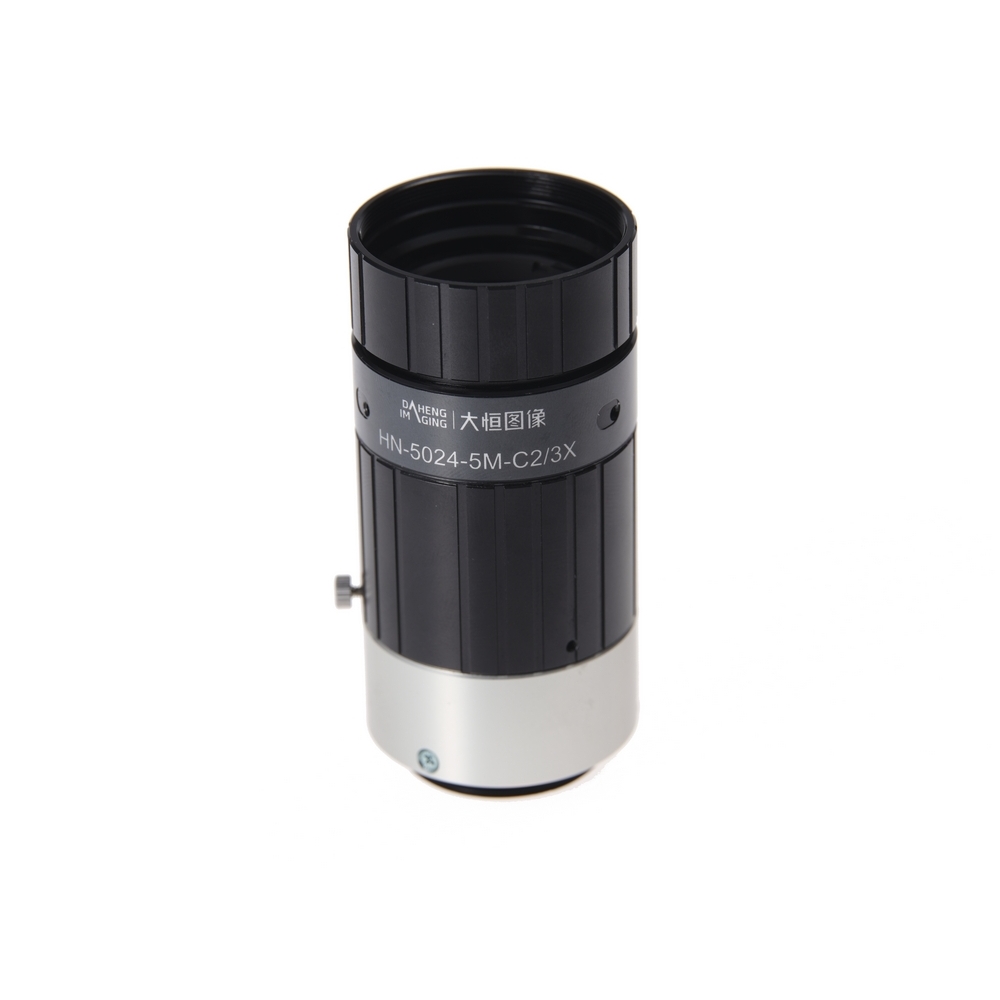

HN-5024-5M-C2/3X

Anti-Shock/Vibration Machine-Vision Lens

50mm, 5Mpix, 2/3", C-Mount

Anti-Shock/Vibration Machine-Vision Lens

  • High Resolution (5MP)
    The definition is consistent from the center to the periphery, which greatly improved aperture and work distance.
  • Compact
    With its diameter of φ33mm, the lens fits limited space requirements.
  • Easy installation
    The lens barrel is respectively provided with 3 holes that can fix the variable aperture and focus. The best fixing holes can be selected according to the setting environment, which is simple and convenient to install.
  • Generality
    The sensor size is 2/3″ (The maximum is 1.1inch), which is widely suitable for industrial cameras on the market.
  • Anti-shock & Anti-vibration
    Excellent anti-shock and anti-vibration performance.
SKU: HN-5024-5M-C2/3X Categories: , Tags: , , ,
Compare

Model HN-5024-5M-C2/3X
Sensor Size(Standard) 2/3″ (3.45μm)
Sensor Size (Max.) 1.1″ (4.5μm)
Focal Length (mm) 50
F/No. F2.4-F16
Angle of View (H×V) 10.4°×7.8°(2/3″)
Working Distance (mm) ∞-200
Control: Focus Manual
Control: Iris Manual
Filter Thread (mm) M30.5×0.5
Mount C-mount
Weight(g) 95
Distortion (%) 0.01

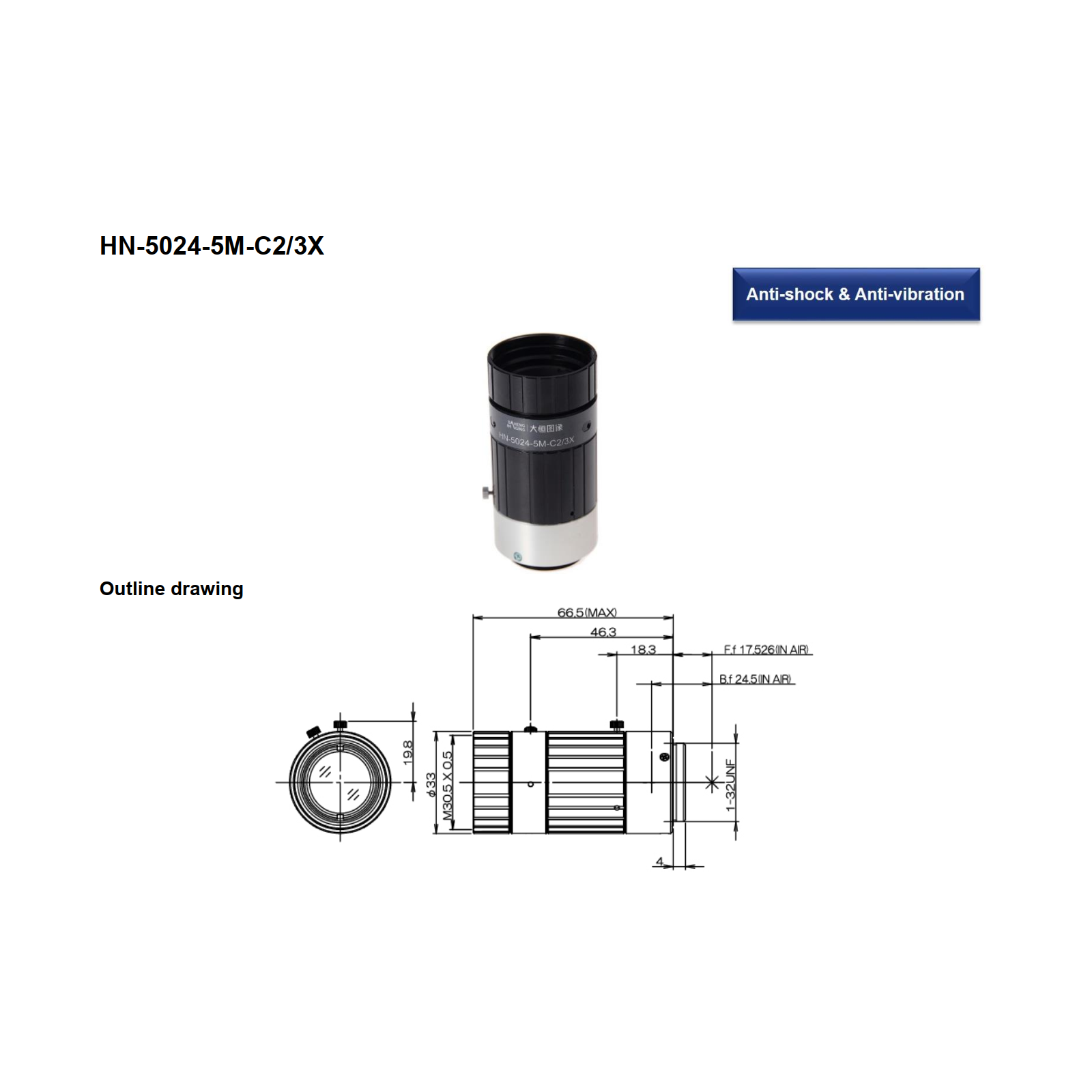

Dimensions(DXL)(mm) φ33.0×66.5
