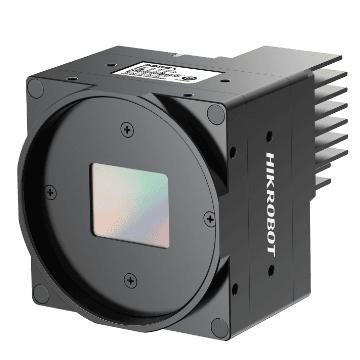

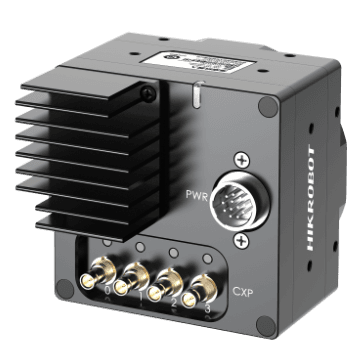

25MP Area Scan Camera, CXP-12, GMAX0505, Color, V2, M58-mount
> 25 MP CoaXPress Area Scan Cameras — GMAX0505, Global shutter, CMOS, M58-mount
Model
- Product Model
- MV-CH250-90YC-M58S-NN
- Type
- 25MP Area Scan Camera, CXP-12, GMAX0505, Color, V2, M58-mount
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Gpixel GMAX0505
- Pixel size
- 2.5 μm × 2.5 μm
- Sensor size
- 1.1"
- Sensor size (computed)from resolution × pixel pitch
- 12.8 × 12.8 mm
- Sensor diagonal
- 18.1 mm
- Resolution
- 5120 × 5120
- Max. frame rate
- 150 fps @5120 × 5120 Bayer BG 8
- Dynamic range
- 63 dB
- SNR
- 36 dB
- Gain
- 2.5 ×
- Exposure time
- UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 10 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono
- Color
- Pixel format
- Bayer BG 8/10/12
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- CoaXPress with micro-BNC interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
- Power supply
- 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
- Power consumption
- Typ. 10 W @ 12 VDC
Mechanical
- Lens mount
- M58*0.75, flange back length 11.48 mm
- Dimension
- 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional)
- Weight
- M58-mount without fan, approx. 285 g (0.6 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with CoaXPress Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Compatibility
- CoaXPress, GenlCam
- Certification
- CE, RoHS, KC, UL
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
38.4 mm
Magnification: 0.13×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Data cables the manufacturer lists
Power and I/O cables
Frame grabbers
Lenses that fit this camera
Filtered by the M58-mount thread and by coverage — the image circle is at least 18.1 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
