Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs. The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Model
- Product Model
- MV-ACXP12-HDBNC-HDBNC-HF-10m
- Type

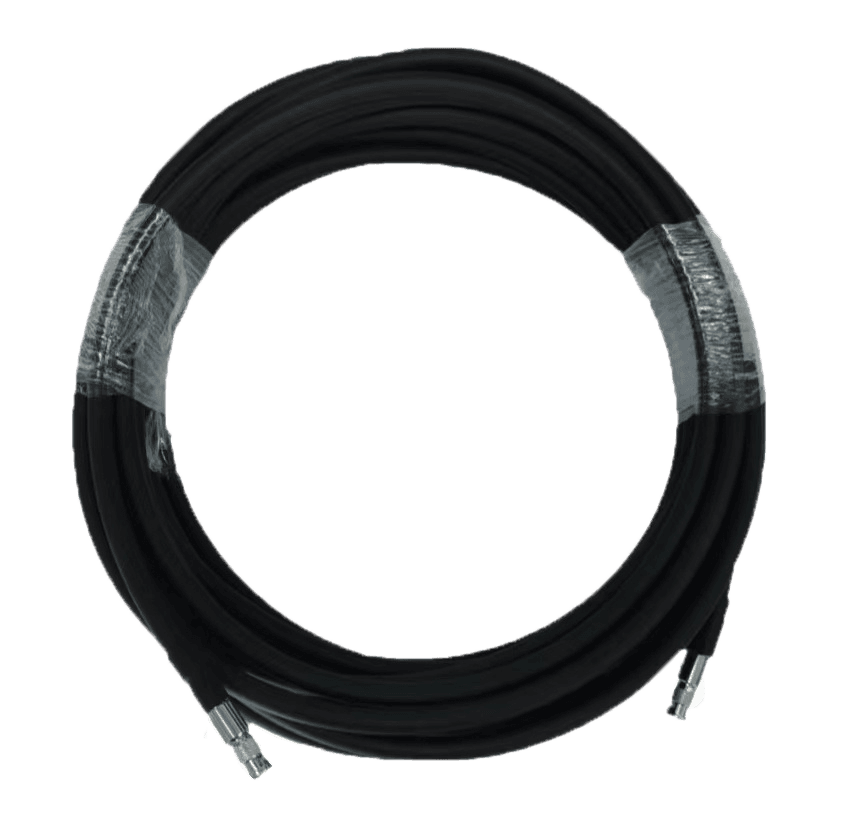

- High-flex CXP-12 cable，10m
Physical specification
- End A connector
- HD-BNC
- End B connector
- HD-BNC
- Cable diameter
- 5 mm
- Length
- 10 m
- Cable mechanical
- Coaxial
- Jacket
- PVC
- Cable color
- Black
- Connector durability
- 500 mating cycles
- Min. bending radius
- 60 mm
- Applicable scenario
- Drag chain
- Max. U-type bending cycles
- 2 million times
Electrical specification
- Max. voltage
- 300 VDC
Additional information
- Working temperature
- –30 °C to 80 °C (–22 °F to 176 °F)
- Certification
- RoHS, UL
- Packaging
- Individual package
