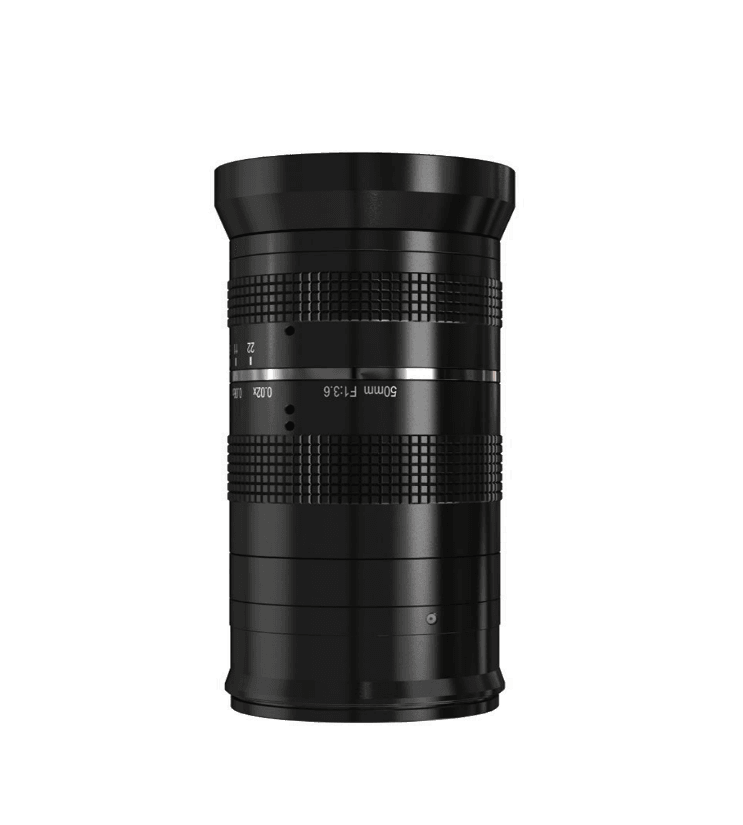

50mm, F3.6, Full Frame φ46mm, 65MP Lens, M58-Mount
MVL-LF5036M-M58-65MPHikrobot
Lenses — 50 mm, M58-mount
Model
- Product Model
- MVL-LF5036M-M58-65MP
- Type
- 50mm, F3.6, Full Frame φ46mm, 65MP Lens, M58-Mount
Performance
- Focal length
- 50 mm
- F-number
- F3.6 to F22
- Image size
- Ø46 mm
- Optical distortion
- 0.3%
- Magnification range
- 0.02x to 0.5x
- Working distance range
- 80 mm to 2500 mm (tolerance: ±5 mm)
Mechanical
- Iris control
- Manual
- Focus control
- Manual
- Filter thread
- M62 × P0.75
- Mount
- M58 × P0.75
- Flange back length
- 11.48 mm
- Dimension
- Ø65 mm × 132.5 mm to 153.2 mm (Ø2.6" × 5.2" to 6.0")
- Temperature
- –10 °C to 50 °C (14 °F to 122 °F)
- Weight
- 715.49 g (1.6 lb)
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
48 mm
Magnification: 0.17×
Resolution per pixel
0.0196 mm/px
Smallest detectable feature: 0.0588 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
