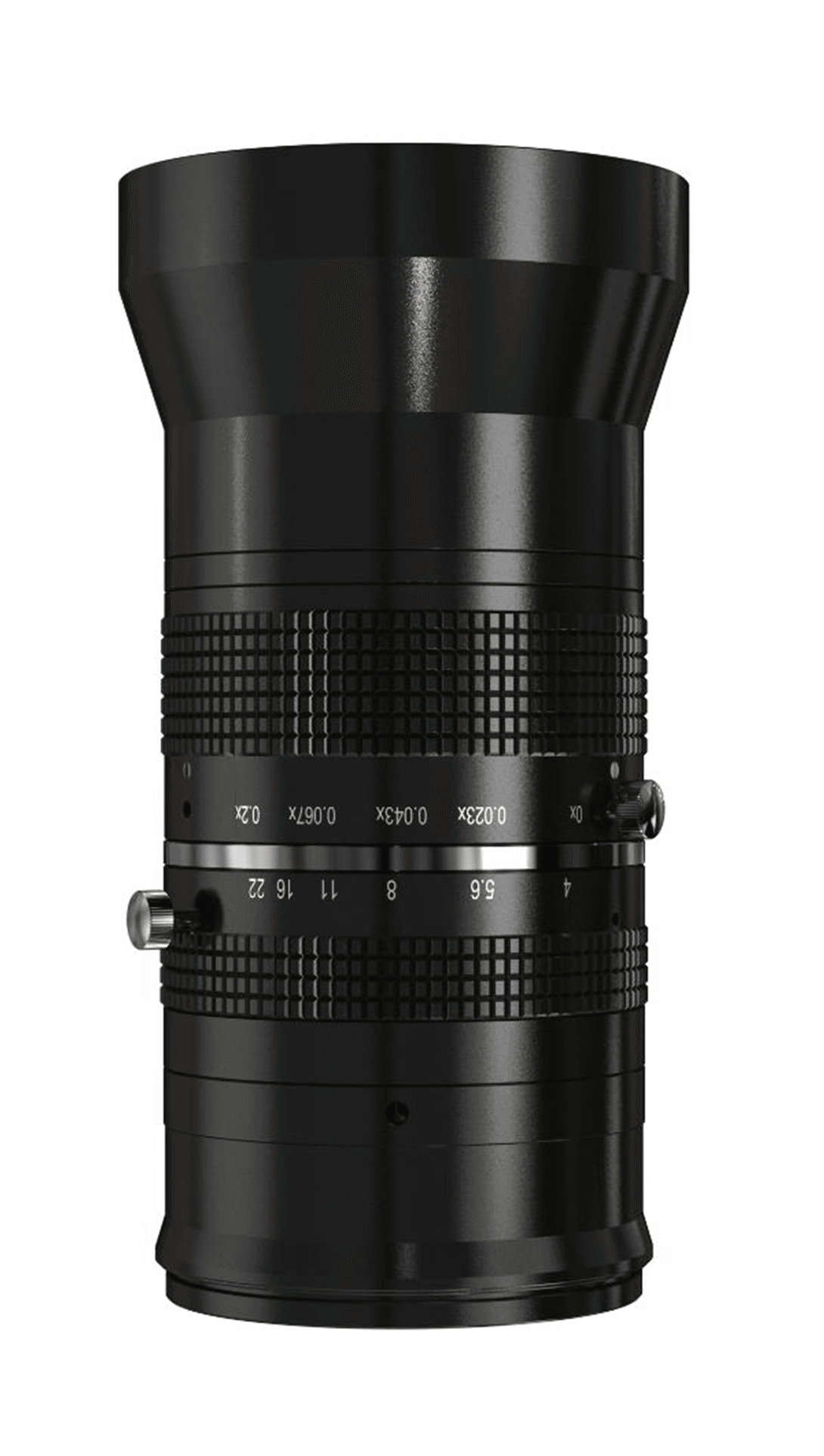

35mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount
MVL-LF3540M-M58-65MPHikrobot
Lenses — 35 mm, M58-mount
Model
- Product Model
- MVL-LF3540M-M58-65MP
- Type
- 35mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount
Performance
- Focal length
- 35 mm
- F-number
- F4.0 to F22
- Image size
- Ø42 mm
- Optical distortion
- 0.5%
- Magnification range
- 0.001 x to 0.2 x
- Working distance range
- 150 mm to inf mm (tolerance: ± 5 mm)
Mechanical
- Iris control
- Manual
- Focus control
- Manual
- Mount
- M58 × P0.75
- Flange back length
- 11.48 mm
- Dimension
- Ø69.4 mm ×131.1 mm (Ø2.7" × 5.2")
- Weight
- 760.84g
- Temperature
- –10 °C to 50 °C (14 °F to 122 °F)
- Filter thread
- M67 × P0.75
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
68.6 mm
Magnification: 0.12×
Resolution per pixel
0.028 mm/px
Smallest detectable feature: 0.084 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
