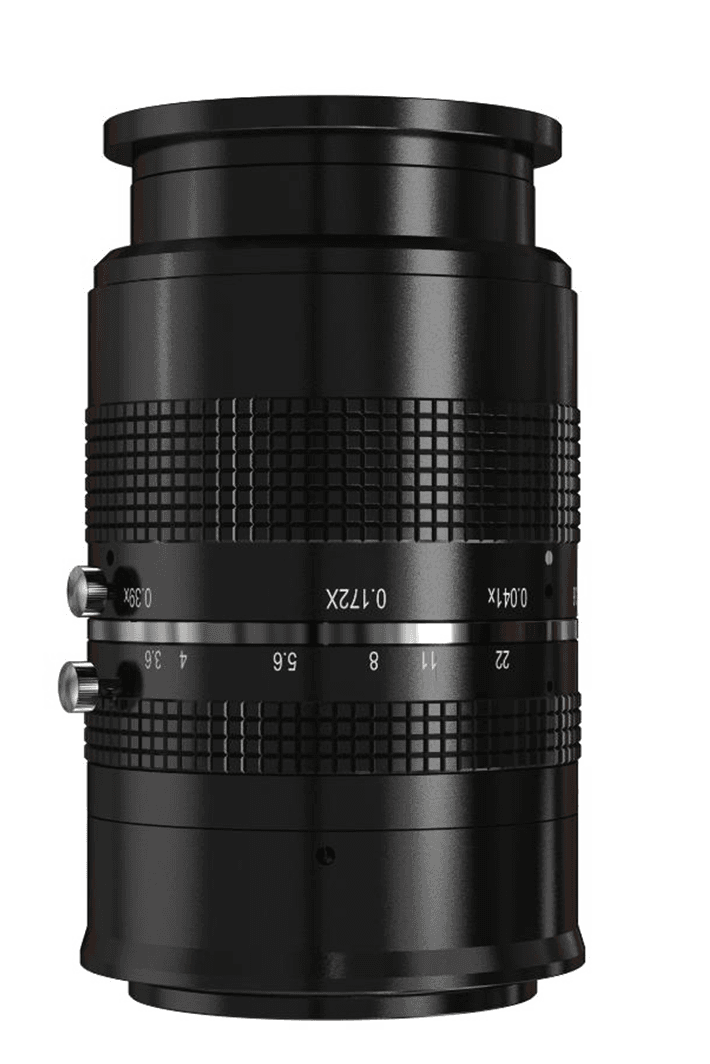

80mm, F3.6, Full Frame φ46mm, 65MP Lens, M58-Mount
MVL-LF8036M-M58-65MPHikrobot
Lenses — 80 mm, M58-mount
Model
- Product Model
- MVL-LF8036M-M58-65MP
- Type
- 80mm, F3.6, Full Frame φ46mm, 65MP Lens, M58-Mount
Performance
- Focal length
- 80 mm
- F-number
- F3.6 to F22
- Image size
- Ø46 mm
- Optical distortion
- 0.05%
- Magnification range
- 0.041x to 0.39x
- Working distance range
- 235 mm to 2000 mm (tolerance: ±5 mm)
Mechanical
- Iris control
- Manual
- Focus control
- Manual
- Filter thread
- M62 × P0.75
- Mount
- M58 × P0.75
- Flange back length
- 11.48 mm
- Dimension
- Ø71.6 mm × 105.5 mm to 133.1 mm (Ø2.8" × 4.2" to 5.2")
- Temperature
- –10 °C to 50 °C (14 °F to 122 °F)
- Weight
- 827.1 g (1.8 lb.)
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
30 mm
Magnification: 0.27×
Resolution per pixel
0.0123 mm/px
Smallest detectable feature: 0.0368 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
