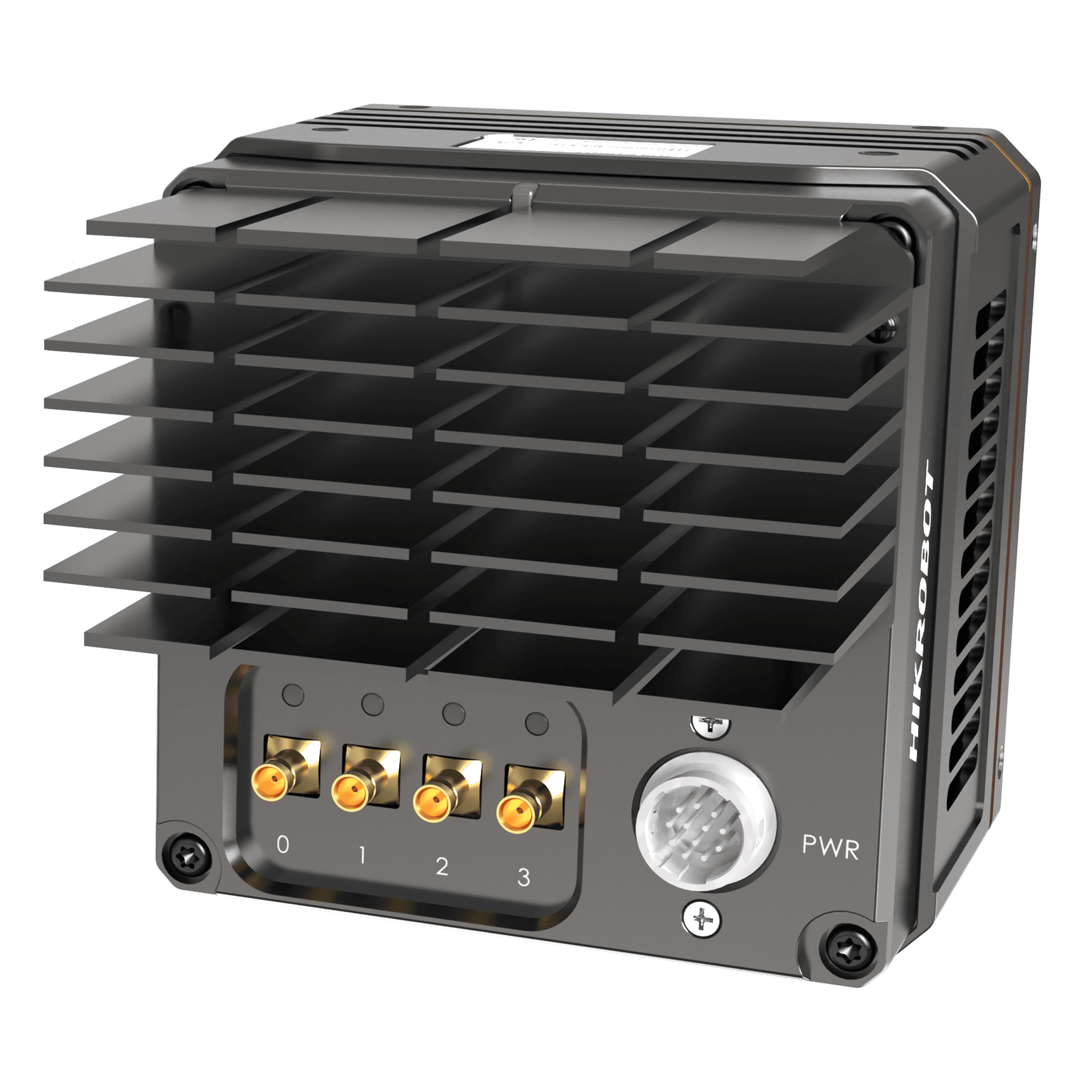

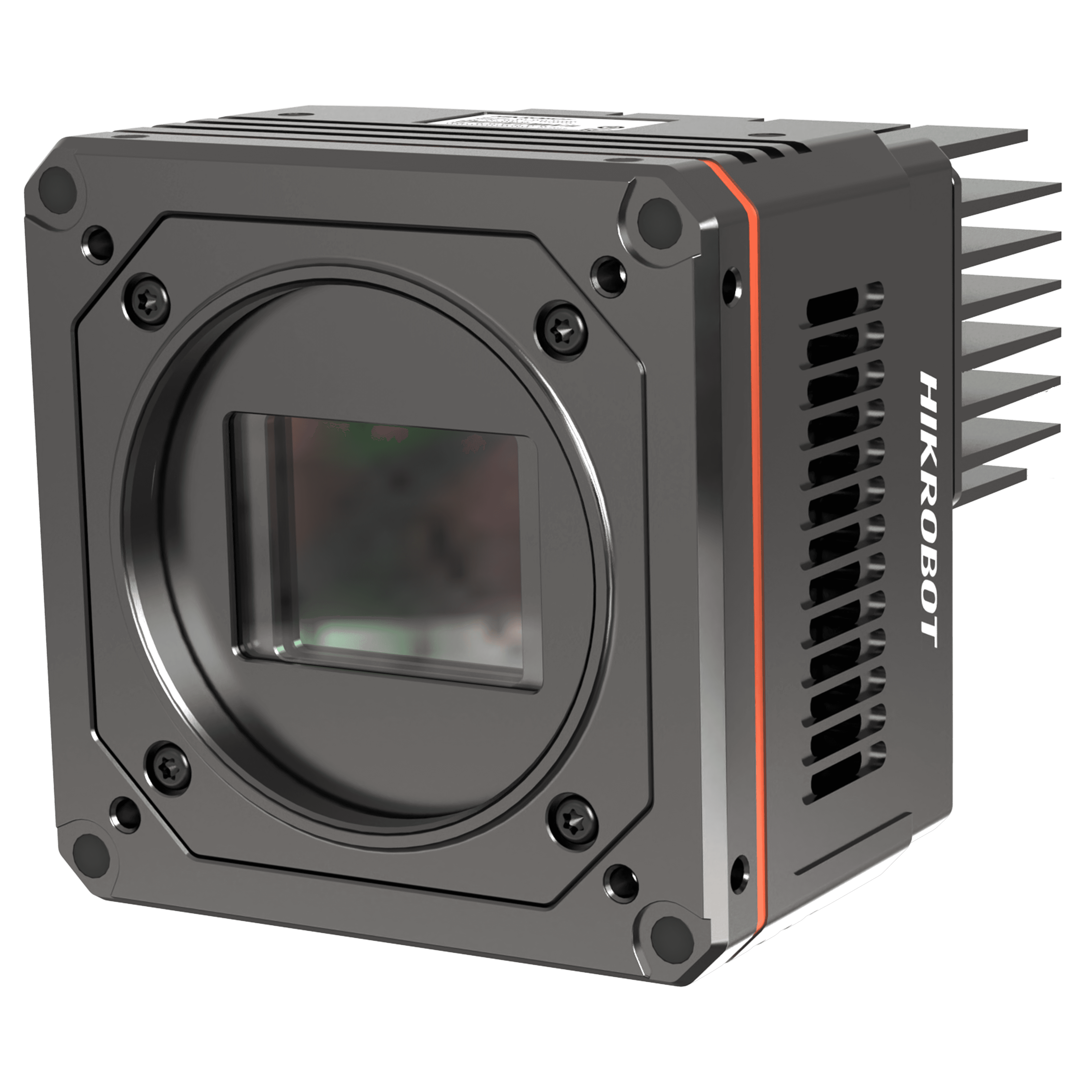

25MP Area Scan Camera, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless
> 25 MP CoaXPress Area Scan Cameras — Global shutter, CMOS, M58-mount, IP40
Model
- Product Model
- MV-CH250-20XM-M58S-NN
- Type
- 25MP Area Scan Camera, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- OnSemi PYTHON25K
- Pixel size
- 4.5 μm × 4.5 μm
- Sensor size
- 23 mm × 23 mm
- Sensor size (computed)from resolution × pixel pitch
- 23.04 × 23.04 mm
- Sensor diagonal
- 32.58 mm
- Resolution
- 5120 × 5120
- Max. frame rate
- 80 fps @ 5120 × 5120
- Dynamic range
- 58 dB
- SNR
- 41 dB
- Gain
- 0 dB to 15 dB
- Exposure time
- 33 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono/color
- Mono
- Pixel format
- Mono 8/10/12
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- CoaXPress with DIN interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
- Power supply
- 9 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
- Power consumption
- Typ. 10.8 W @ 24 VDC
Mechanical
- Lens mount
- M58*0.75, flange back length 11.48 mm
- Dimension
- 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
- Weight
- Approx. 730 g (1.6 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or frame grabber software meeting with CoaXPress Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Compatibility
- CoaXPress, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
69.1 mm
Magnification: 0.23×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Data cables the manufacturer lists
Lenses that fit this camera
Filtered by the M58-mount thread and by coverage — the image circle is at least 32.58 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
