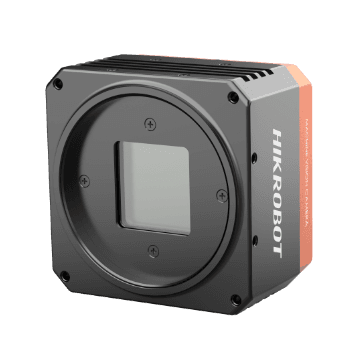

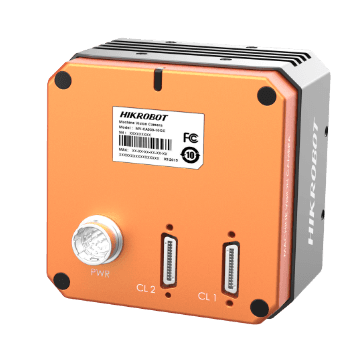

25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress. Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage. Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Model
- Product Model
- MV-CH250-20CM-M58S-NN
- Type
- 25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- OnSemi PYTHON25K
- Pixel size
- 4.5 μm × 4.5 μm
- Sensor size
- 23 mm × 23 mm
- Sensor size (computed)from resolution × pixel pitch
- 23.04 × 23.04 mm
- Sensor diagonal
- 32.58 mm
- Resolution
- 5120 × 5120
- Configuration mode
- Full, 80-bit
- Tap geometry
- 8X_1Y, 10X_1Y
- Tap number
- 8 Taps, 10 Taps
- Max. frame rate
- 31.3 fps @ 5120 × 5120
- Pixel clock
- 60 MHz, 70 MHz, 85 MHz
- Dynamic range
- 59 dB
- SNR
- 41 dB
- Gain
- 0 dB to 32 dB
- Exposure time
- 45 μs to 10 sec
- Mono
- Mono
- Pixel format
- Mono 8
- Exposure mode
- Off/Once/Continuous exposure mode
- Binning
- Not support
- Decimation
- Not support
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- Camera Link with SDR interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1; Camera Link connector provides I/O (CC1/CC2/CC3/CC4).
- Power supply
- 9 VDC to 24 VDC
- Power consumption
- Typ. 9.4 W @ 24 VDC
Mechanical
- Lens mount
- M58*0.75, flange back length 11.48 mm
- Dimension
- 70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7")
- Weight
- Approx. 380 g (0.8 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or frame grabber software meeting with GenlCam Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Compatibility
- Camera Link V2.0, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Frame grabbers
Lenses that fit this camera
Filtered by the M58-mount thread and by coverage — the image circle is at least 32.58 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm

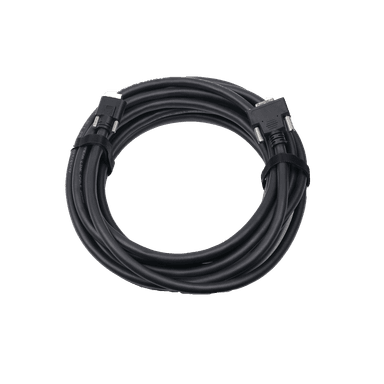

Camera Link cable(SDR-MDR)，high flex，3m
Camera Link cable(SDR-SDR)，high flex，3m
Camera Link cable(SDR-SDR)，standard，3m
Camera Link cable(SDR-MDR)，high flex，5m
Camera Link cable(SDR-SDR)，high flex，5m
Camera Link cable(SDR-SDR)，standard，5m
Camera Link cable(SDR-MDR)，high flex，7m
Camera Link cable(SDR-SDR)，high flex，7m
Camera Link cable(SDR-SDR)，standard，7m
Power and I/O cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
High-flex 12pin power & I/O cables，10 meters
MV-ACP-H12p-open-ST-10m
High-flex 12pin power & I/O cables，3 meters
MV-ACP-H12p-open-ST-20m
High-flex 12pin power & I/O cables，5 meters
MV-ACP-H12p-open-ST-3m
High-flex 12pin power & I/O cables，7 meters
MV-ACP-H12p-open-ST-5m
