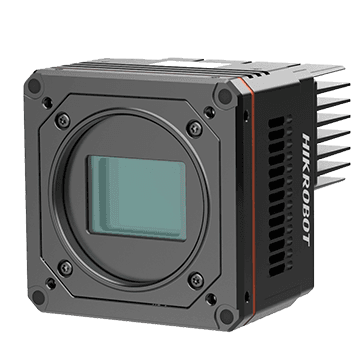

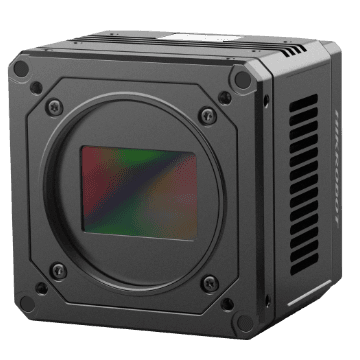

21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Color
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress. Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage. Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Model
- Product Model
- MV-CH210-90YC-M58S-NN
- Type
- 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Color
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Gpixel Gsprint4521
- Pixel size
- 4.5 μm × 4.5 μm
- Sensor size
- 23.04 mm × 18.43 mm
- Sensor size (computed)from resolution × pixel pitch
- 23.04 × 18.43 mm
- Sensor diagonal
- 29.51 mm
- Resolution
- 5120 × 4096
- Max. frame rate
- 222 fps @ 5120 × 4096 Bayer GB 8
- Dynamic range
- 65 dB
- SNR
- 43 dB
- Gain
- 1.0 ×, 2.0 ×, 4.0 ×
- Exposure time
- 4 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono/color
- Color
- Pixel format
- Bayer GB 8/10/12
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- CoaXPress with Micro-BNC interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
- Power supply
- 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
- Power consumption
- With fan: Typ. 18.7 W @ 24 VDC Without fan: Typ. 16.3 W @ 24 VDC
Mechanical
- Lens mount
- M58*0.75
- Dimension
- With fan: 84 mm × 84 mm × 75 mm (3.3" × 3.3" × 3.0") Without fan: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
- Weight
- With fan: Approx. 790 g (1.7 lb.) Without fan: Approx. 650 g (1.4 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or frame grabber software meeting with CoaXPress Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Compatibility
- CoaXPress, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Data cables the manufacturer lists
Power and I/O cables
Lenses that fit this camera
Filtered by the M58-mount thread and by coverage — the image circle is at least 29.51 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
