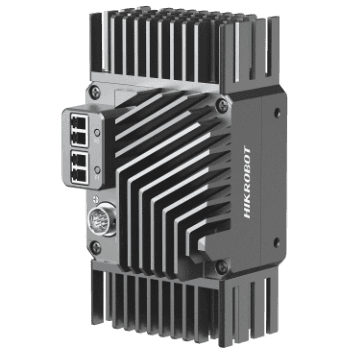

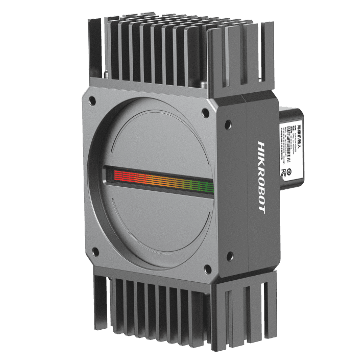

8K XoF(2 SPF+) linescan camera，mono
MV-CL081-B0F2MHikrobot
< 1 MP Line Scan камери — CMOS, M72-mount, IP40
Model
- Product Model
- MV-CL081-B0F2M
- Type
- 8K XoF(2 SPF+) linescan camera，mono
Performance
- Sensor type
- CMOS
- Pixel size
- 7 μm × 7 μm
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 57.34 × 0.01 mm
- Диагонал на сензора
- 57.34 mm
- Resolution
- 8192 × 1
- Image mode
- 1-Line
- Max. line rate
- 240 kHz @ Mono 8
- SNR
- 40 dB
- Dynamic range
- 62.3 dB
- Gain
- 1.0 ×, 2.0 ×, 3.0 ×, 4.0 ×
- Exposure time
- 3 μs to 10 ms
- Exposure mode
- Off/Once/Continuous exposure mode, and supports trigger-width exposure time
- Mono/color
- Mono
- Pixel format
- Mono 8/10/12
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal reverse image output
- Trigger mode
- External trigger, internal trigger
- External trigger mode
- Line trigger
Electrical feature
- Data interface
- 2LC fiber connnector
- Digital I/O
- Not supported
- Power supply
- 12 VDC to 24 VDC
- Power consumption
- Typ. 14.7 W @ 12 VDC
Mechanical
- Lens mount
- M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
- Dimension
- 132 mm × 76 mm × 55.5 mm (5.2" × 3.0" × 2.2")
- Weight
- Approx. 600 g (1.3 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 5% RH to 90% RH (no condensation)
General
- Client software
- MVS
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Compatibility
- XoFLink, GenlCam
- Certification
- CE, RoHS, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
172 mm
Мащаб: 0.57×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
Подобни продукти
MV-CL162-91F2M(2.0)
16k 3.5μm XoF(2 SFP+) linescan camera，mono

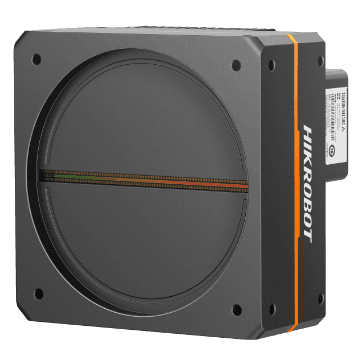

MV-CL166-91F2C
16k 5μm，XoF（2 SFP+) linescan camera，RGB/4TDI
MV-CL161-41CM
16k Camera Link Line Scan Cameras，Mono
MV-CL022-91GC
2K GigE Line Scan Cameras，Color
MV-CL022-91GM
2K GigE Line Scan Cameras，Mono
MV-CL024-91GC
2k linescan camera，color，GPixel，7μm
MV-CL024-91GM
2k linescan camera，mono，GPixel，7μm

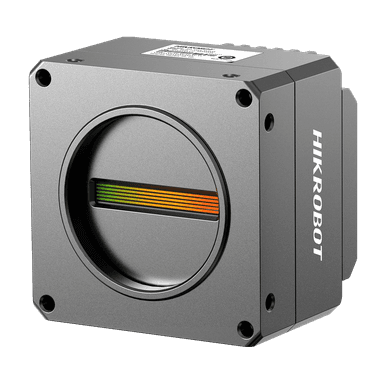

MV-CL044-91NC
4k 7μm，2.5G，color
MV-CL044-91NM
4k 7μm，2.5G，mono
MV-CL042-91FC
4k 7μm，color，XoF

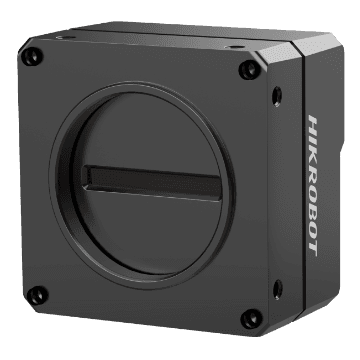

MV-CL043-A1GM-V2
