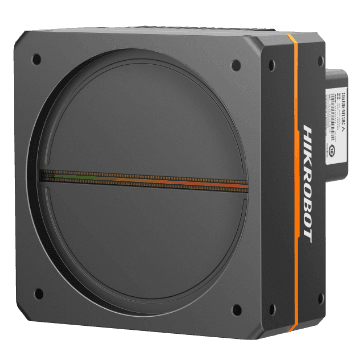

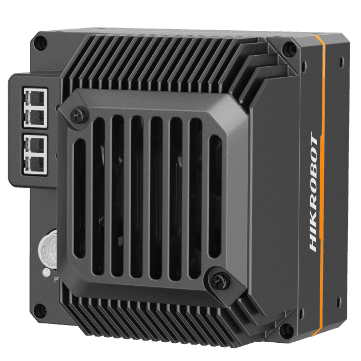

16k 5μm，XoF（2 SFP+) linescan camera，RGB/4TDI
MV-CL166-91F2CHikrobot
< 1 MP Line Scan камери — CMOS, M90-mount, IP40
Model
- Product Model
- MV-CL166-91F2C
- Type
- 16k 5μm，XoF（2 SFP+) linescan camera，RGB/4TDI
Performance
- Sensor type
- CMOS
- Pixel size
- 5 μm × 5 μm
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 81.92 × 0.06 mm
- Диагонал на сензора
- 81.92 mm
- Resolution
- 16384 × 12
- Image mode
- Supports 1-Line, 2-TDI, 3-TDI, 4-TDI
- Max. line rate
- 47.3 kHz (1-Line), 45.3 kHz (2-TDI), 30.6 kHz (3-TDI), 23.1 kHz (4-TDI)
- Dynamic range
- 69.3 dB
- SNR
- 41.4 dB
- Gain
- 1.0 ×
- Exposure time
- 3 μs to 10 ms
- Exposure mode
- Off/Once/Continuous exposure mode, and supports trigger-width exposure
- Mono
- Color
- Pixel format
- RGB 8, BGR 8
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal reverse image output
- Trigger mode
- External trigger, internal trigger
- External trigger mode
- Line trigger, frame trigger, line + frame trigger
Electrical feature
- Data interface
- 2LC fiber connector
- Digital I/O
- 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
- Power supply
- 24 VDC
- Power consumption
- Typ. 22.5 W @ 24 VDC
Mechanical
- Lens mount
- M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter
- Dimension
- 99 mm × 99 mm × 83.4 mm (3.9" × 3.9" × 3.3")
- Weight
- Approx. 923 g (2.0 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 5% RH to 90% RH (no condensation)
General
- Client software
- MVS
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Compatibility
- XoFLink, GenlCam
- Certification
- CE, RoHS, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
246 mm
Мащаб: 0.82×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
