- High resolution and excellent image uniformity
- F2.0, Maximum image circle of 4/3”
- Low distortion to improve measurement accuracy
- High peripheral brightness ratio to ensure image brightness consistency
SA2520M-10MP
HIKROBOT Lens, FA Series, SA
HIKROBOT Lens, FA Series, SA
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | SA2520M-10MP |
| Type | 25mm, F2.0, 4/3″, 10MP Lens, C-Mount | |
| Performance | Focal length | 25 mm |
| F-Number | F2.0 ~ F22 | |
| Image Size | Φ23 mm(4/3”) | |
| Optical Distortion | -0.66% | |
| Minimum Object Distance | 0.15 m | |
| Field of View | D（22.6 mm）：49.7°H（18.13 mm）：40.6°V（13.6 mm）：31.0° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M46 × 0.75 | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |

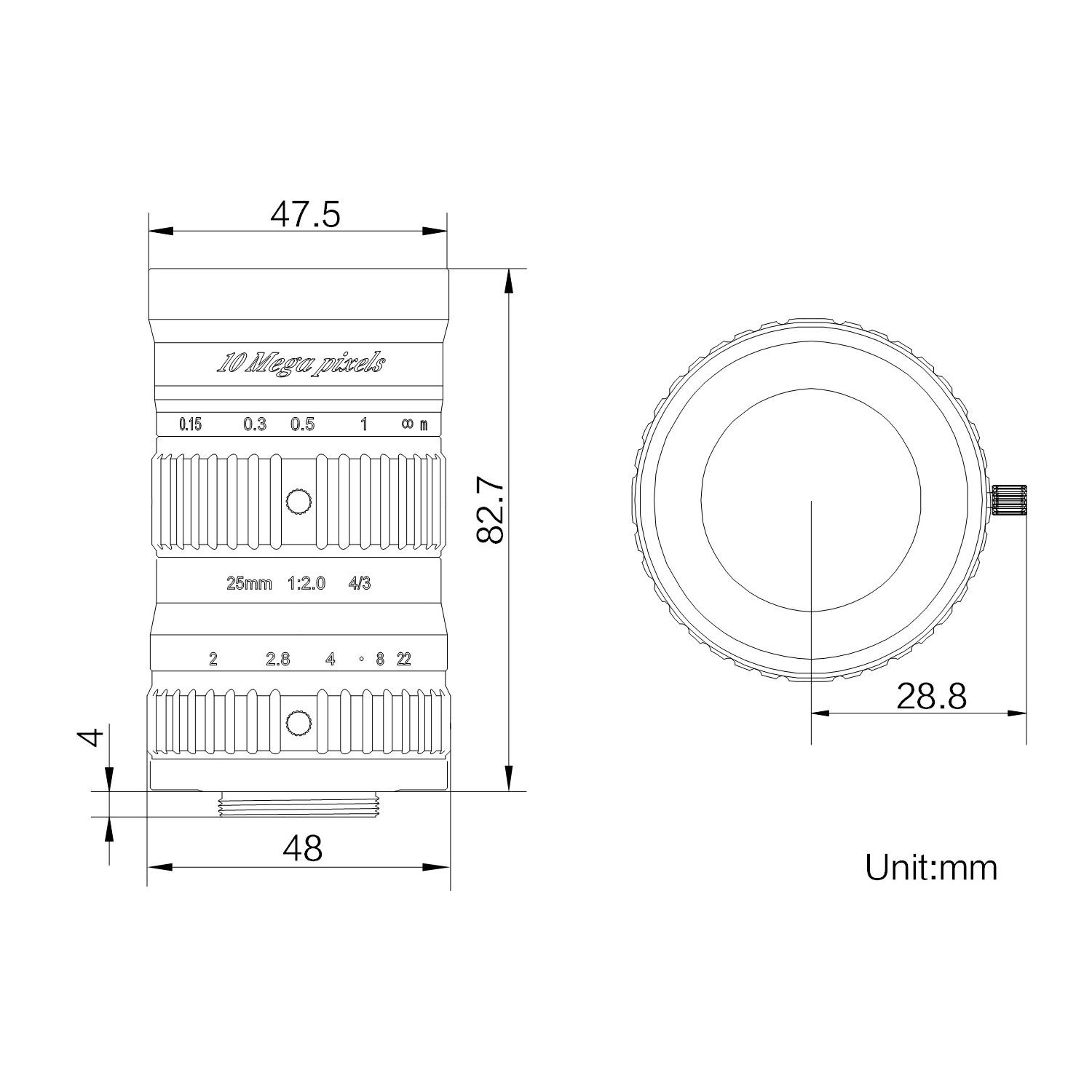

| Dimension | Φ48 × 82.7 mm | |
| Weight | 250 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
