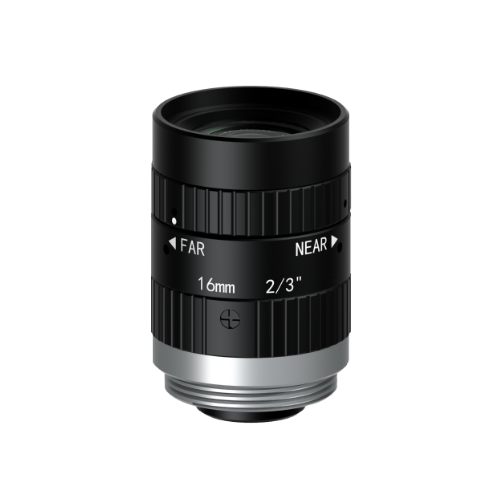

MVL-MF1618M-5MPE

HIKROBOT Lens, FA Series, MF

16mm, F1.8 ~ F16, Ø 11mm (2/3''), C-Mount

HIKROBOT Lens, FA Series, MF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

Data SheetDrawing

SKU: MVL-MF1618M-5MPE Categories: , Tags: , , ,
Compare
  • High resolution and consistency of image clarity
  • Lower distortion and higher relative illumination rate
  • Achromatic optical system design, Better imaging performance with color camera
  • Excellent performance at high and low temperature
  • Good optical performance at ultra-short working distance

Model Product Model MVL-MF1618M-5MPE
Type 16mm, F1.8, 2/3″, 5MP Lens, C-Mount
Performance Focal length 16 mm
F-Number F1.8 ~ F16
Image Size Φ11 mm(2/3”)
Distortion 0.98%
Minimum Object Distance 0.2 m
Field of View D(11.1 mm):39.98°H(8.45 mm):30.75°V(7.07 mm):25.08°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M27 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm

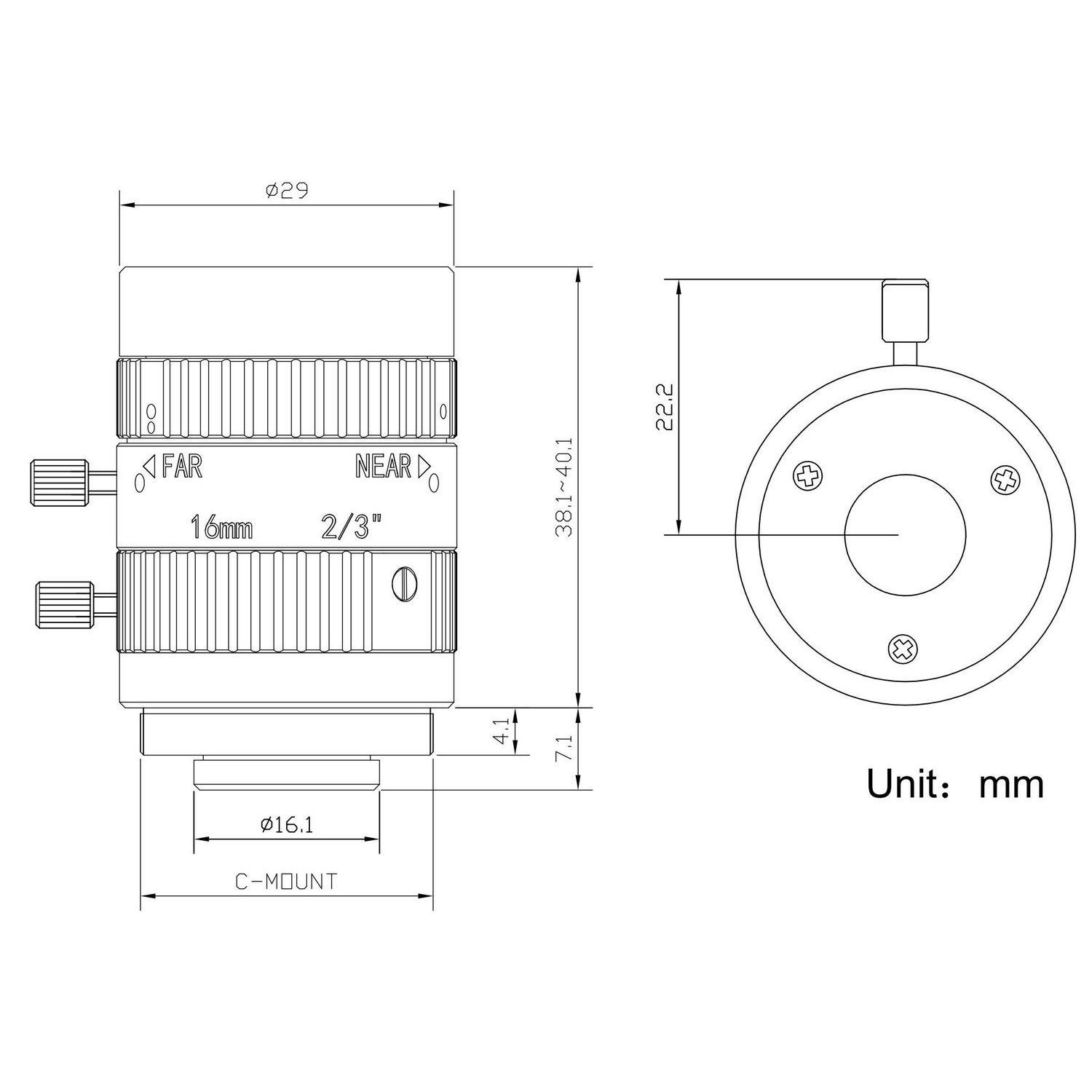

Dimension Φ29 × 38.1~40.1 mm
Weight 68.0 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
