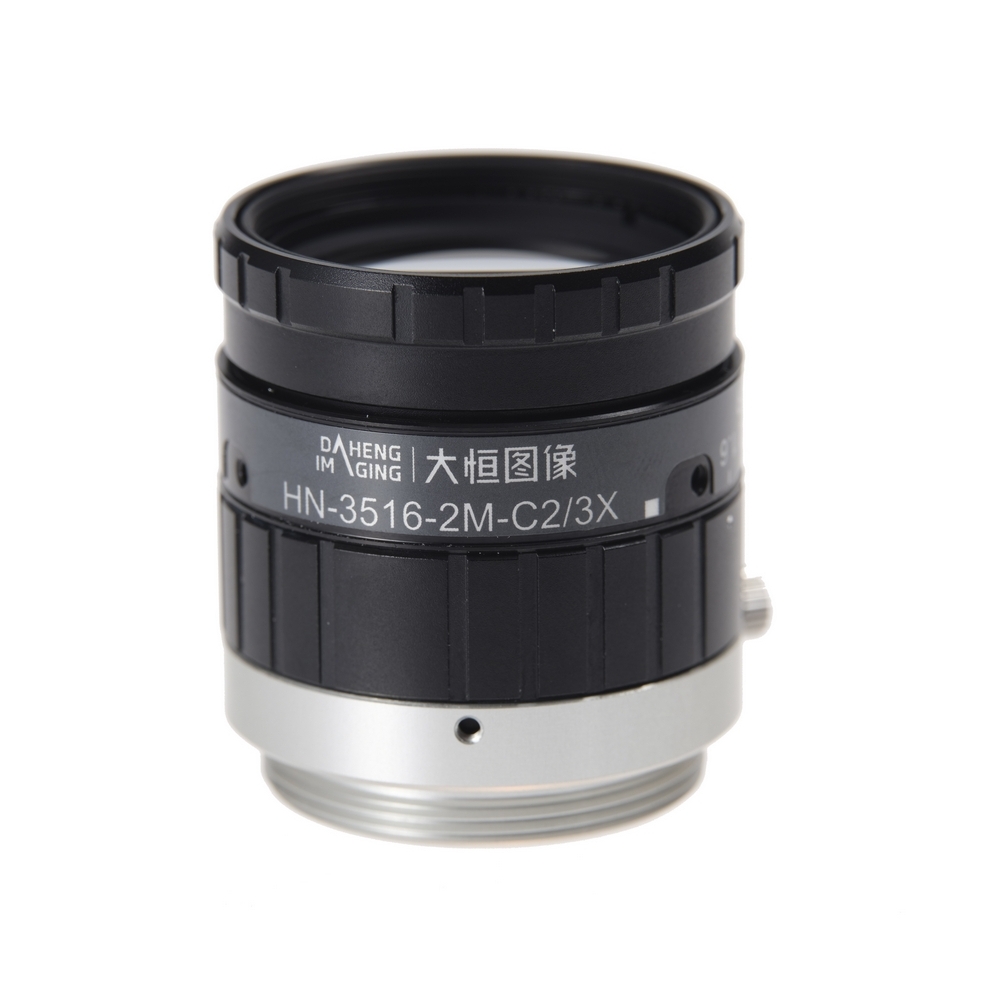

HN-3516-2M-C2/3X

Anti-Shock/Vibration Machine-Vision Lens

35mm, 2Mpix, 2/3", C-Mount

Anti-Shock/Vibration Machine-Vision Lens

  • High optical performance
    For up to 2/3 inch, 2 megapixel sensor. The F/No. is 1.6-22, and clear images can be obtained even in low light environment.
  • Anti-shock & Anti-vibration
    Through the use of original mechanical structure, the optical axis changes below 10µm, with excellent anti-shock and anti-vibration performance.
  • Compact
    With its diameter of φ29.5mm, the lens fits limited space requirements.
  • Easy installation
    The lens barrel is respectively provided with 3 holes that can fix the variable aperture and focus. The best fixing holes can be selected according to the setting environment. The installation is simple and convenient.
SKU: HN-3516-2M-C2/3X Categories: , Tags: , , ,
Compare

Model HN-3516-2M-C2/3X
Sensor Size 2/3 inch
Focal Length (mm) 35
F/No. F1.6-F22
Angle of View (H×V) 14.3°×10.8°(2/3 inch)
Working Distance (mm) ∞-250
Control: Focus Manual
Control: Iris Manual
Filter Thread (mm) M25.5×0.5
Mount C-mount
Weight(g) 40
Distortion (%) 0.10

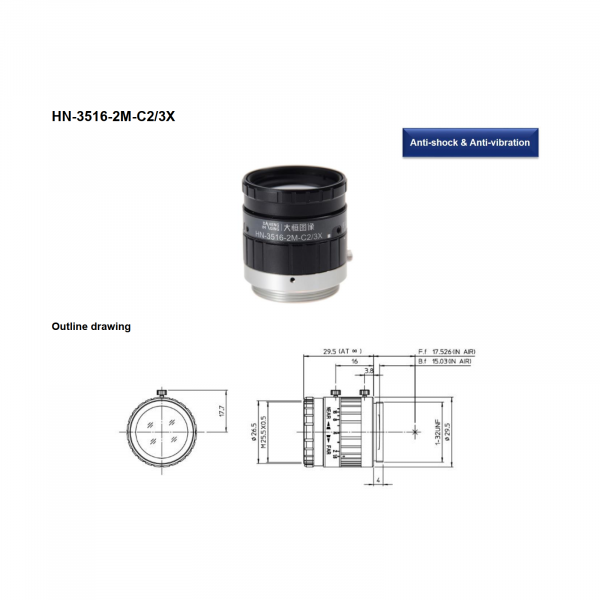

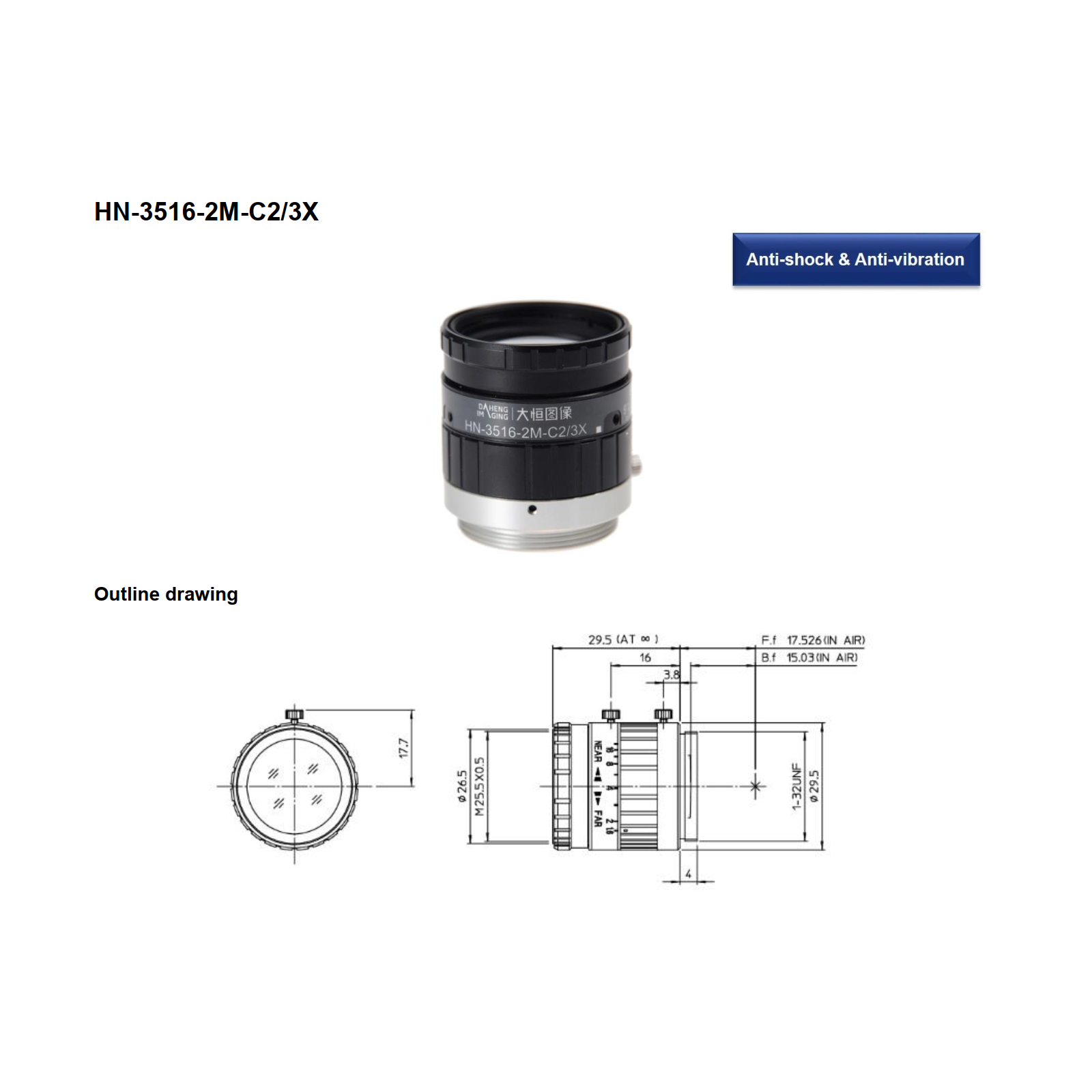

Dimensions(DXL)(mm) φ29.5×29.5
