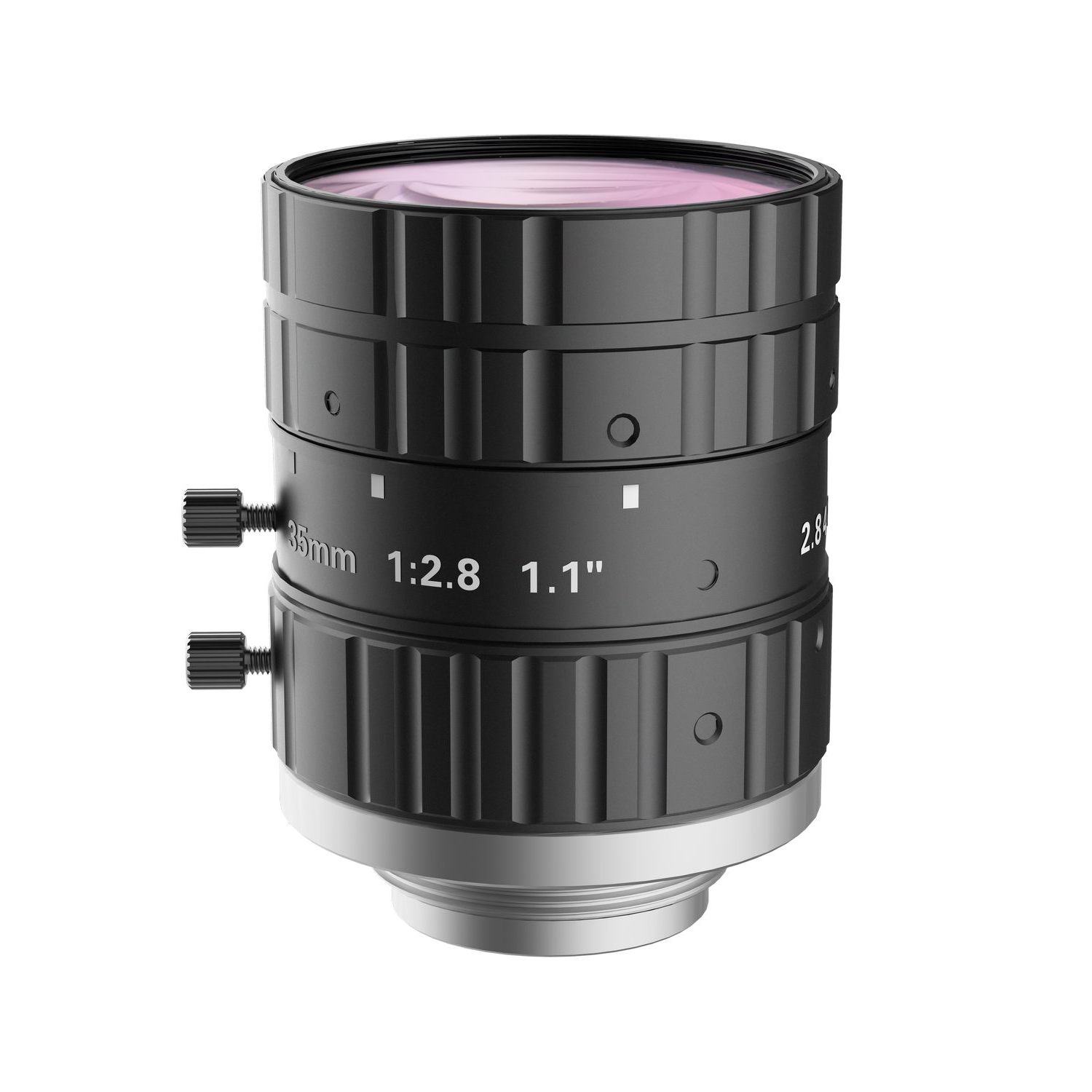

MVL-KF3528M-12MP

HIKROBOT Lens, FA Series, KF

35mm, F2.8 ~ F16, Ø 17.6mm (1.1''), C-Mount

HIKROBOT Lens, FA Series, KF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

Data SheetDrawing

SKU: MVL-KF3528M-12MP Categories: , Tags: , , ,
Compare
  • High resolution, high definition of the whole image
  • Low distortion, high illumination relative
  • Maximum image circle of 1.1″
  • Support ultra-short working distance, maintaining excellent optical properties at different object distances

Model Product Model MVL-KF3528M-12MP
Type 35mm, F2.8, 1.1″, 12MP Lens, C-Mount
Performance Focal length 35 mm
F-Number F2.8 ~ F16
Image Size Φ17.6 mm(1.1”)
Optical Distortion -0.21%
Minimum Object Distance 0.2 m
Field of View D(17.52mm):26.7° H(14.14mm):21.4° V(10.35mm):15.9°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M35.5 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm

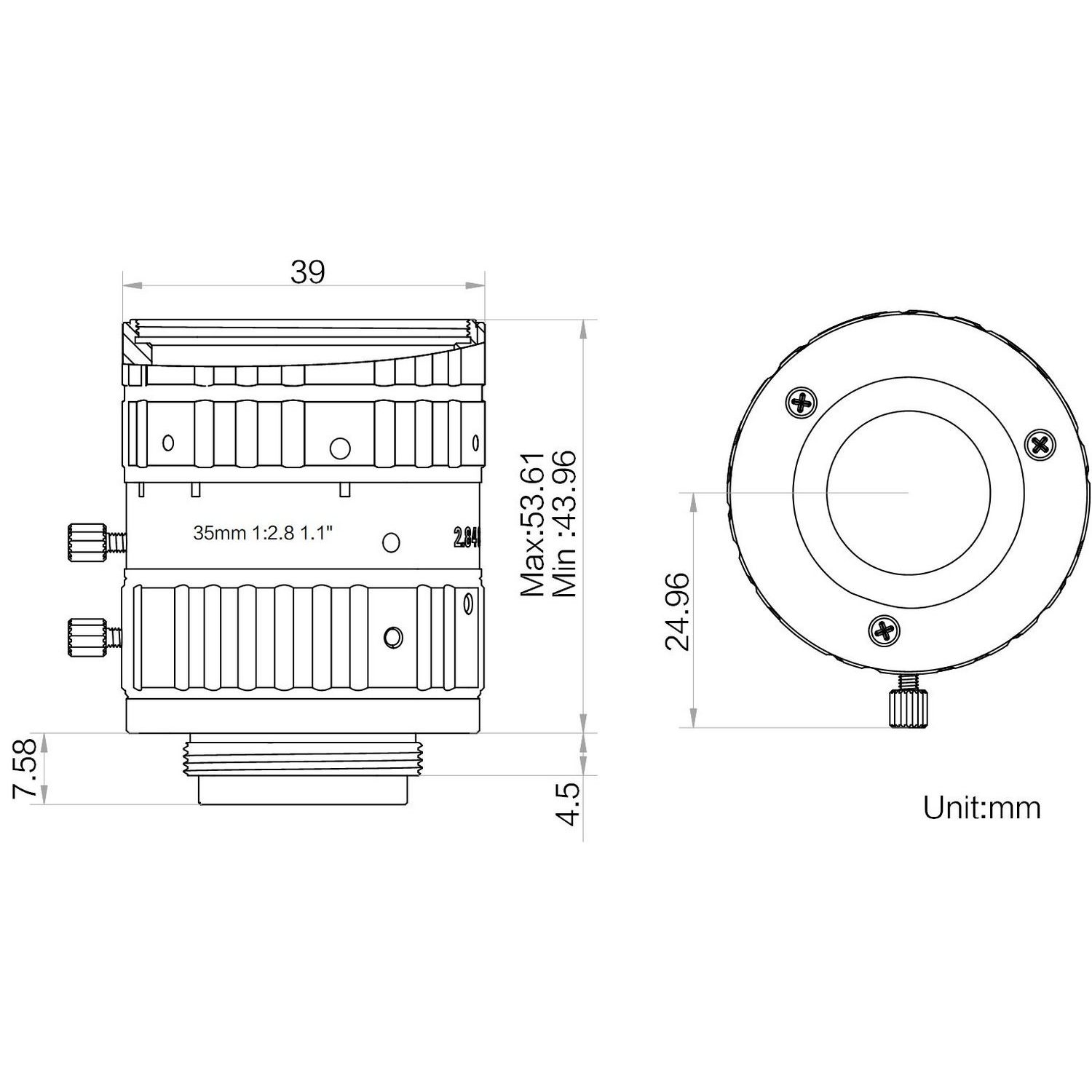

Dimension Φ39 × 53.61 mm
Weight 119 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
