- Ultra-high resolution and consistency of image clarity
- Large aperture, low distortion, low chromatic aberration and high relative illumination
- Maximum image circle Φ37mm, applicable to APS-C area scan and 4K line scan cameras

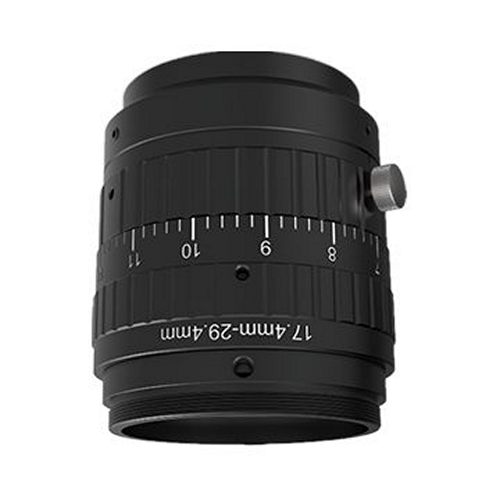

MVL-AF4028M-M42
HIKROBOT Lens, FA Series, AF
HIKROBOT Lens, FA Series, AF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
| Model | Product Model | MVL-AF4028M-M42 |
| Type | 40mm, F2.8, Image Size φ37mm, Recommended Magnification 0.04~0.22X, M42-Mount | |
| Performance | Focal length | 40 mm |
| F-Number | F2.8 ~ F22 | |
| Image Size | Φ37 mm | |
| Optical Distortion | 0.62% | |
| Magnification Range | 0.22x ~ 0.04x | |
| Working Distance Range | 200 ~ 1051 mm | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M37 × 0.75 | |
| Mount | M42 × P1 | |
| Flange Back Length | 12 mm | |

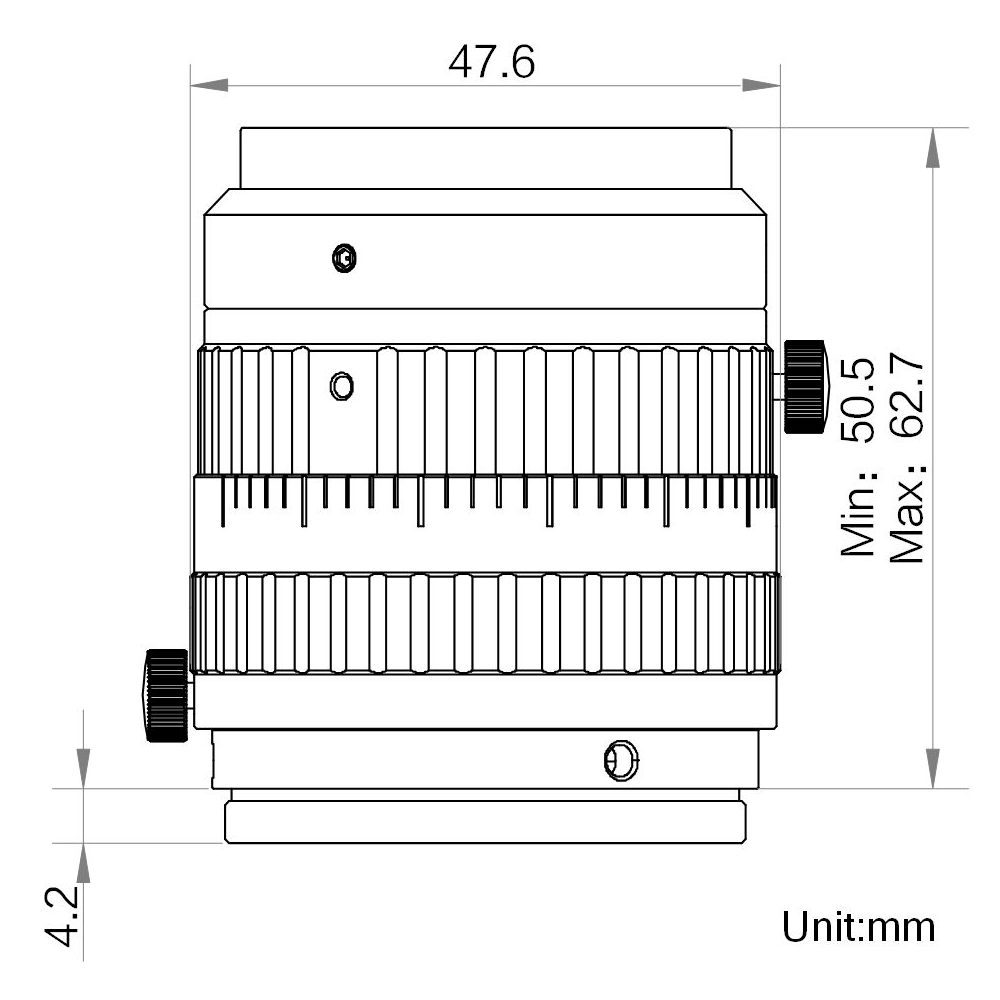

| Dimension | Φ47.6 × 62.7 mm | |
| Weight | 171 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
