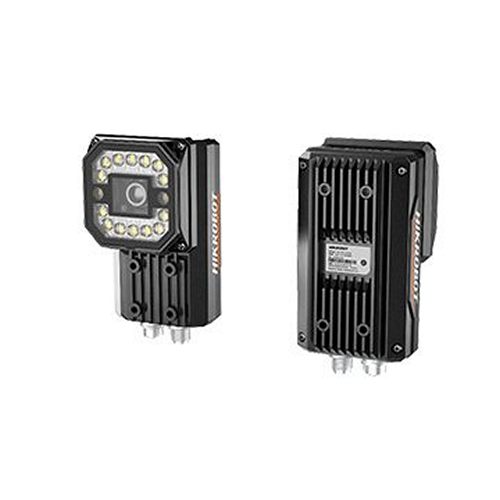

HIKROBOT Smart Code Reader ID5000 Series

25mm, 3.1MP (2048 × 1536), 60 fps, 90 codes/sec, White, Gigabit

HIKROBOT Smart Code Reader ID5000 Series

Based on multi-core deep learning processor, the full-featured code reader brings powerful code reading performance. Equipped with mechanical focus lens and various components, ID5000 can reach up to 20M pixels, suitable for various code reading applications.
The Smart Code Reading Camera adopts embedded multi-core algorithm. The reconstructed data stream is processed in parallel among the underlying CPU, FPGA, and DSP chips; multi-threading of shooting, positioning and decoding is realized, and the efficiency of collective auditing learning technology is improved by 3 times.
Covers 1.6-12MP resolution, cameras achieve super high code-reading accuracy and large field of view. A single device can replace the use of multiple code readers at one time, which makes complex systems easier.

SKU: MV-ID5030M-25S-WBN Category: Tags: , , , , ,
  • Adopts built-in deep learning algorithm to read codes with good robustness.
  • Adopts CMOS global shutter sensor to provide high quality images.
  • Adopts mechanical autofocus lens to achieve automatic focusing.
  • Supports code score and quality evaluation for code printing quality.
  • Adopts controllable light source design providing diversified light.
  • Ingress protection rating 67.

ModelProduct ModelMV-ID5030M-25S-WBN
TypeID5000 Series 3.1MP,25mm,white lighting industrial Code Reader
PerformanceSymbologies1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 252-dimensional codes: QR Code, Data MatrixStack codes: PDF 417
Max. frame rate60 fps
Max. reading speed90 codes/sec
Sensor typeCMOS, global shutter
Pixel size2.5 µm × 2.5 µm
Sensor size1/2"
Resolution2048 × 1536
Exposure time16 μs to 1 sec
Gain1 dB to 4 dB
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP, UDP
Electrical featureData interfaceGigE
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Power supply24 VDC
Max. power consumption60 W@24 VDC (light source enabled)
MechanicalFocal length25 mm (1.0")
Lens mountM12-mount, mechanical autofocus supported.
Lens capHalf polarization lens cap by default. Transparent and full polarization lens cap are optional.
Light sourceWhite light by default. Red/blue/IR light is optional.
IndicatorPower indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).

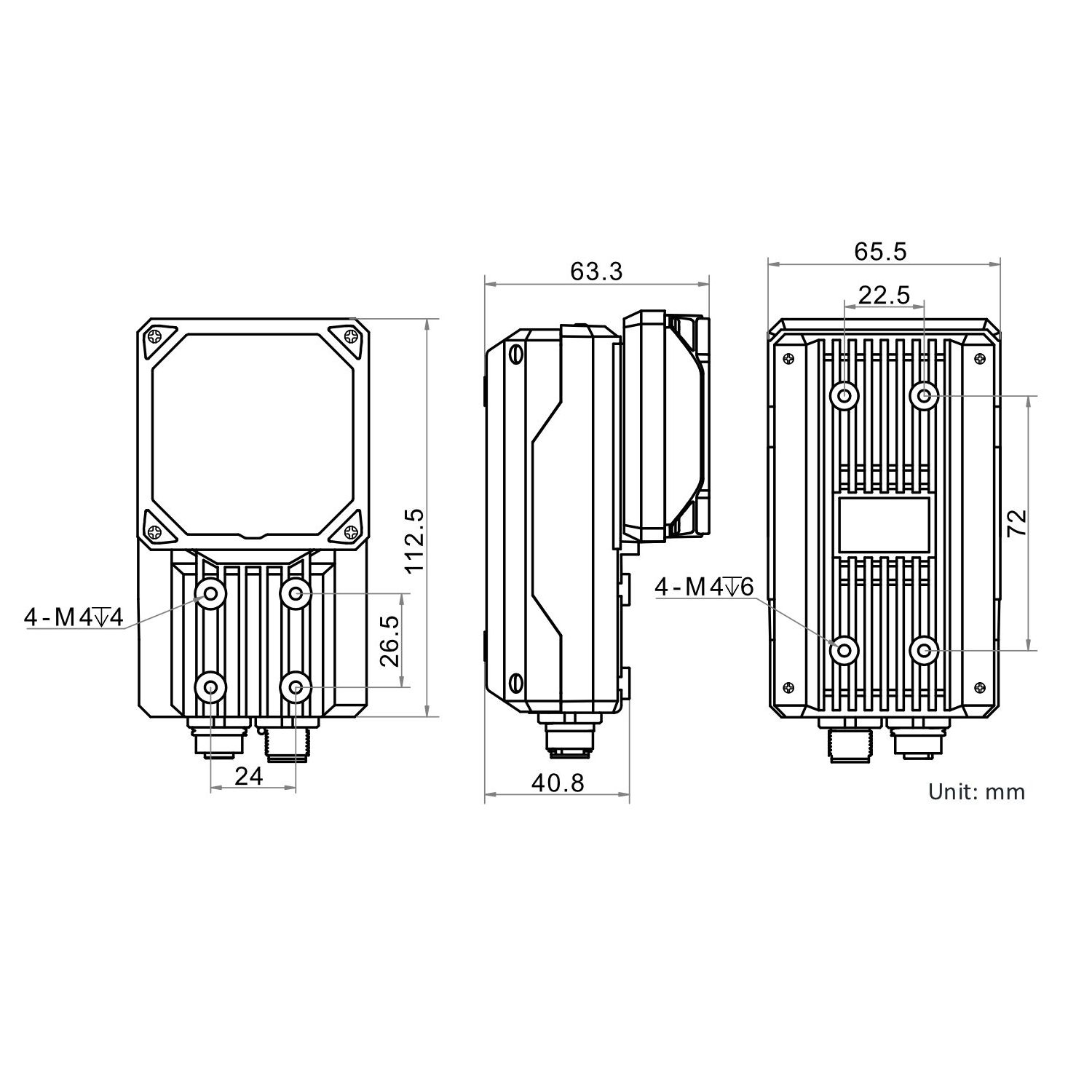

Dimension112.5 mm × 65.5 mm × 63.3 mm (4.4" × 2.6" × 2.5")
WeightApprox. 450 g (1.0 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
GeneralClient softwareIDMVS
CertificationCE, RoHS, KC
