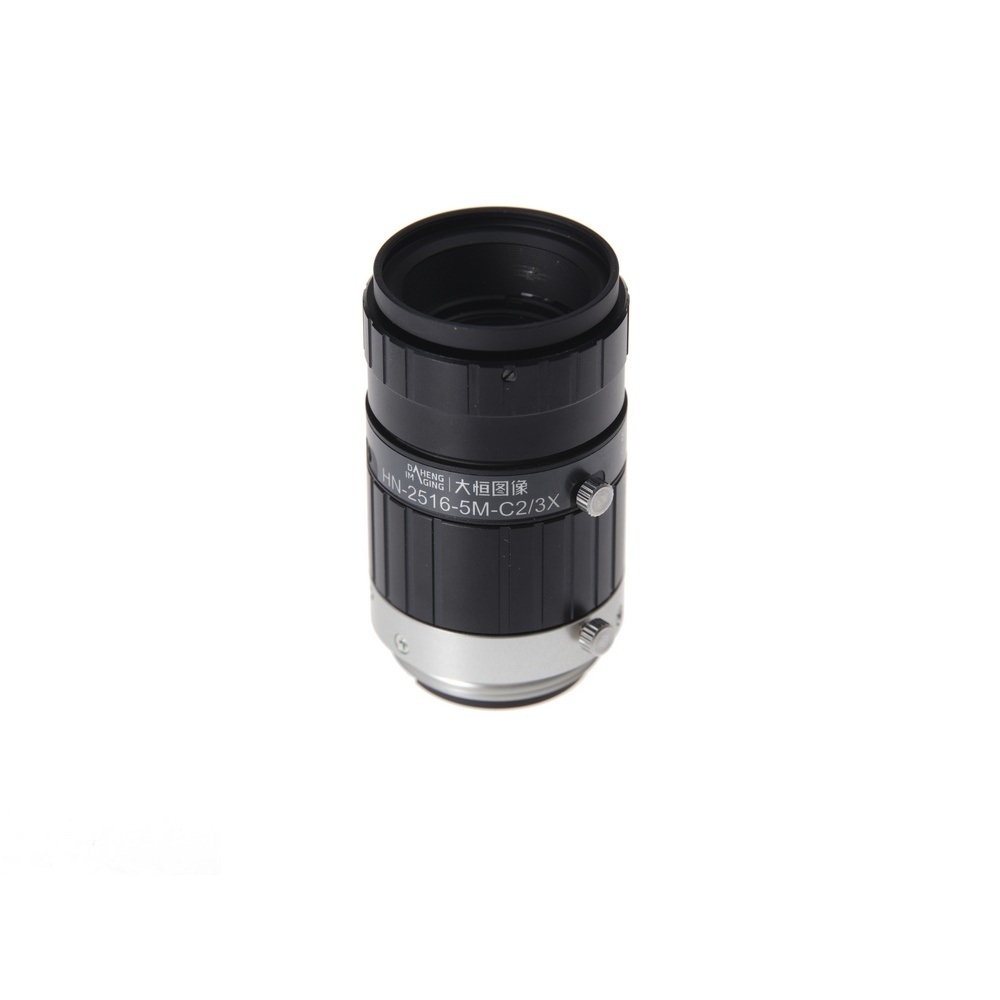

HN-2516-5M-C2/3X

DAHENG Anti-Shock/Vibration Machine-Vision Lens

25mm, 5Mpix, 2/3", C-Mount

DAHENG Anti-Shock/Vibration Machine-Vision Lens

  • High Resolution (5MP)
    The definition is consistent from the center to the periphery, which greatly improved aperture and work distance.
  • Compact
    With its diameter of φ29.5mm, the lens fits limited space requirements.
  • Easy installation
    The lens barrel is respectively provided with 3 holes that can fix the variable aperture and focus. The best fixing holes can be selected according to the setting environment. The installation is simple and convenient.
  • Generality
    The sensor size is 2/3 inch (the maximum is 1/1.2 inch), which is widely suitable for industrial cameras on the market.
SKU: HN-2516-5M-C2/3X Categories: , Tags: , , ,
Compare

Model HN-2516-5M-C2/3X
Sensor Size(Standard) 2/3 inch (3.45μm)
Sensor Size (Max.) 1/1.2 inch (4.5μm)
Focal Length (mm) 25
F/No. F1.6-F16
Angle of View (H×V) 20.0°×15.0°(2/3 inch)
Working Distance (mm) ∞-100
Control: Focus Manual
Control: Iris Manual
Filter Thread (mm) M25.5×0.5
Mount C-mount
Weight(g) 72
Distortion (%) -0.07

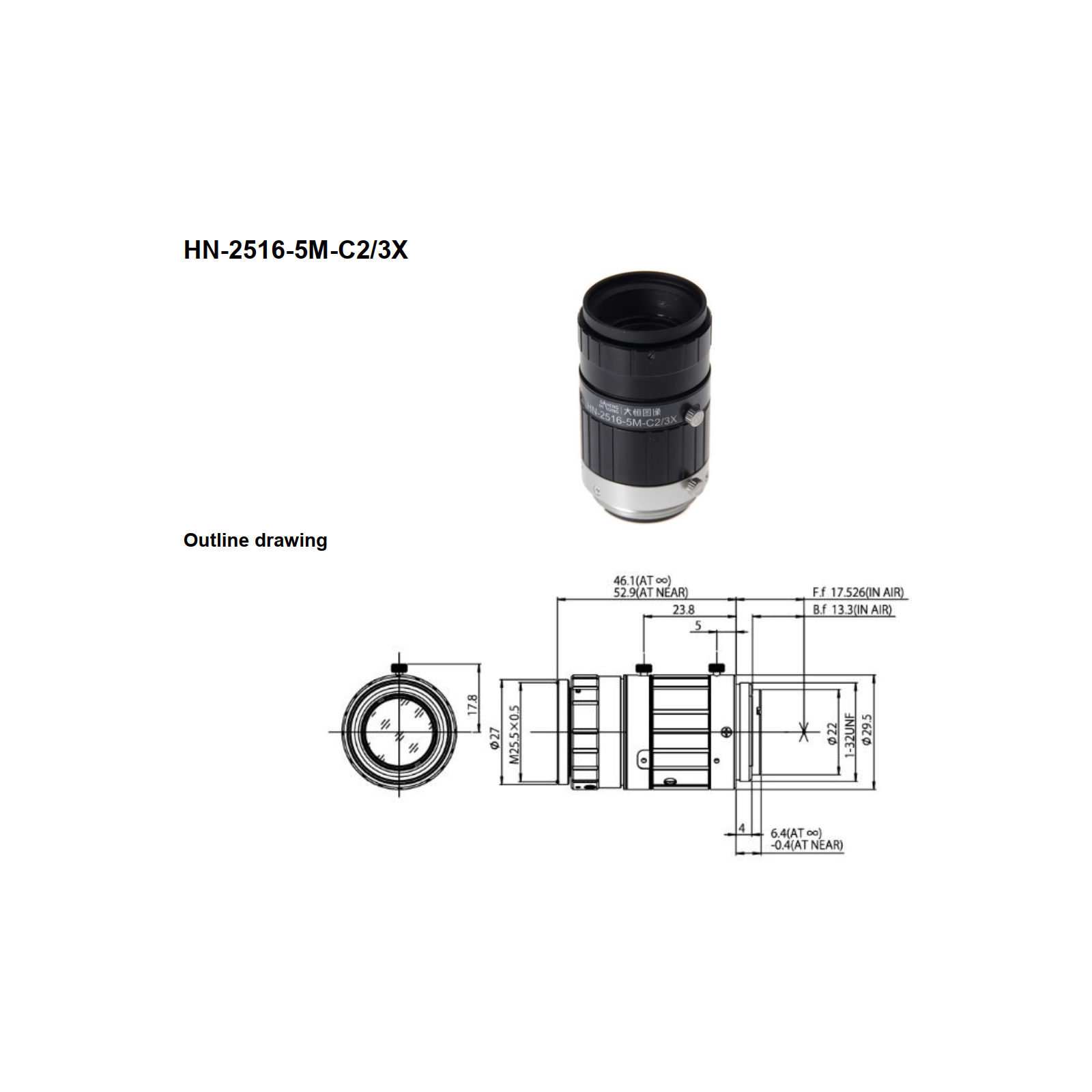

Dimensions(DXL)(mm) φ29.5×46.5
