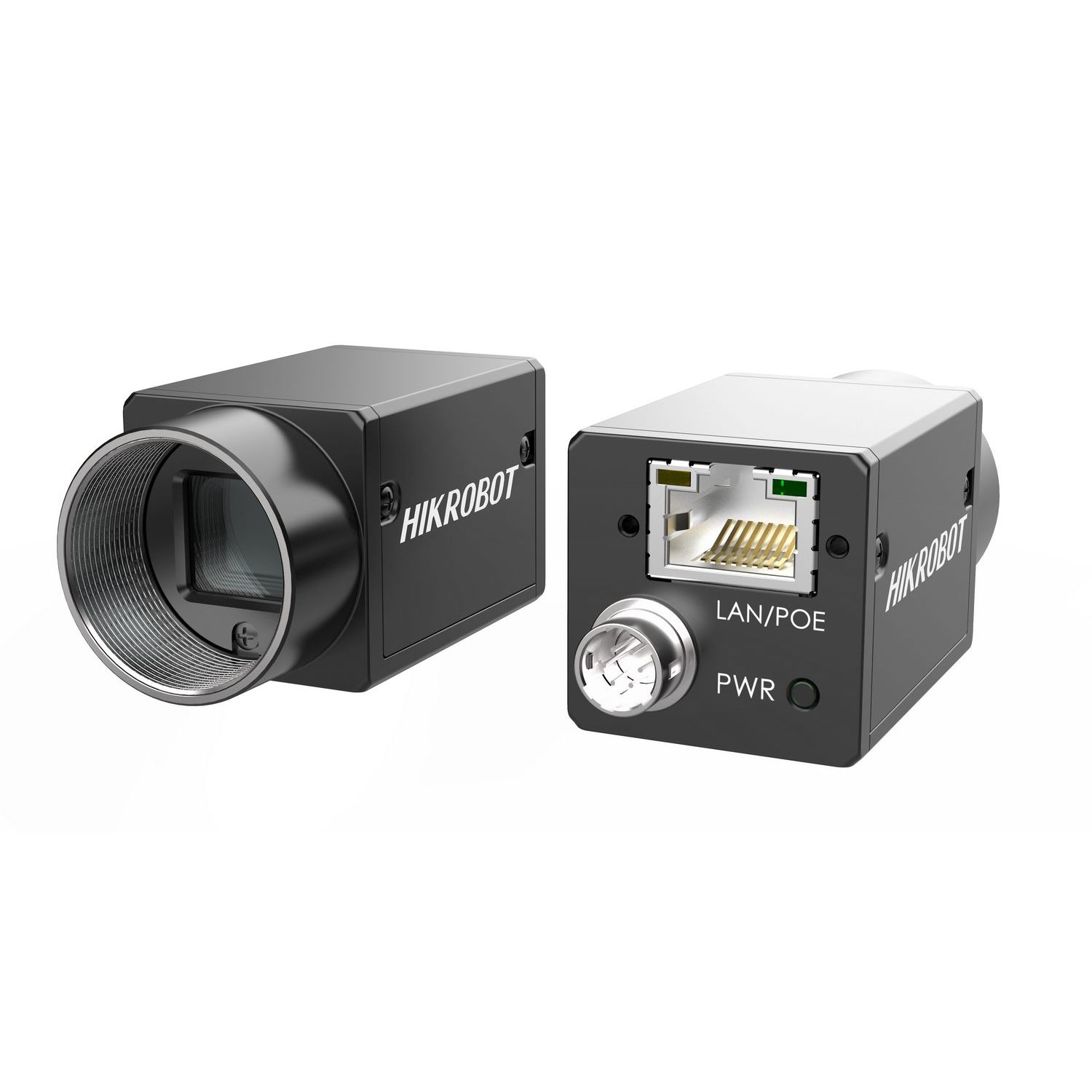

HIKROBOT Area Scan Camera CA Series

4.8 μm, 92.8 fps @ 1280 × 1024, Mono, C-Mount, Gigabit

HIKROBOT Area Scan Camera CA Series

Covering 0.3-6M pixels, CA series equip GigE and USB3.0 interfaces, with a maximum frame rate of 814fps. Near-infrared enhanced camera model selectable, which can meet the visual application requirements of the near-infrared band (750-1100nm).
This series is mainly equipped with global shutter sensor, which can easily capture high-speed dynamic images and cover the needs in most applications; some models can support ultra-short exposures of 1μs, suitable for flying shooting and other Industries.

  • Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
  • Supports hardware trigger, software trigger and free run, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CA013-A0GM
Type 1.3MP Area Scan Camera, GigE, Mono
Performance Sensor type CMOS, global shutter
Pixel size 4.8 μm
Sensor size 1/2″
Resolution 1280 × 1024
Max. frame rate 92.8 fps @1280 × 1024
Dynamic range 54 dB
SNR 40.6 dB
Gain 0 dB to 16 dB
Exposure time 9 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10p/12/12p
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface GigE
Digital I/O 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 2.3 W@12 VDC
Mechanical Lens mount C-Mount

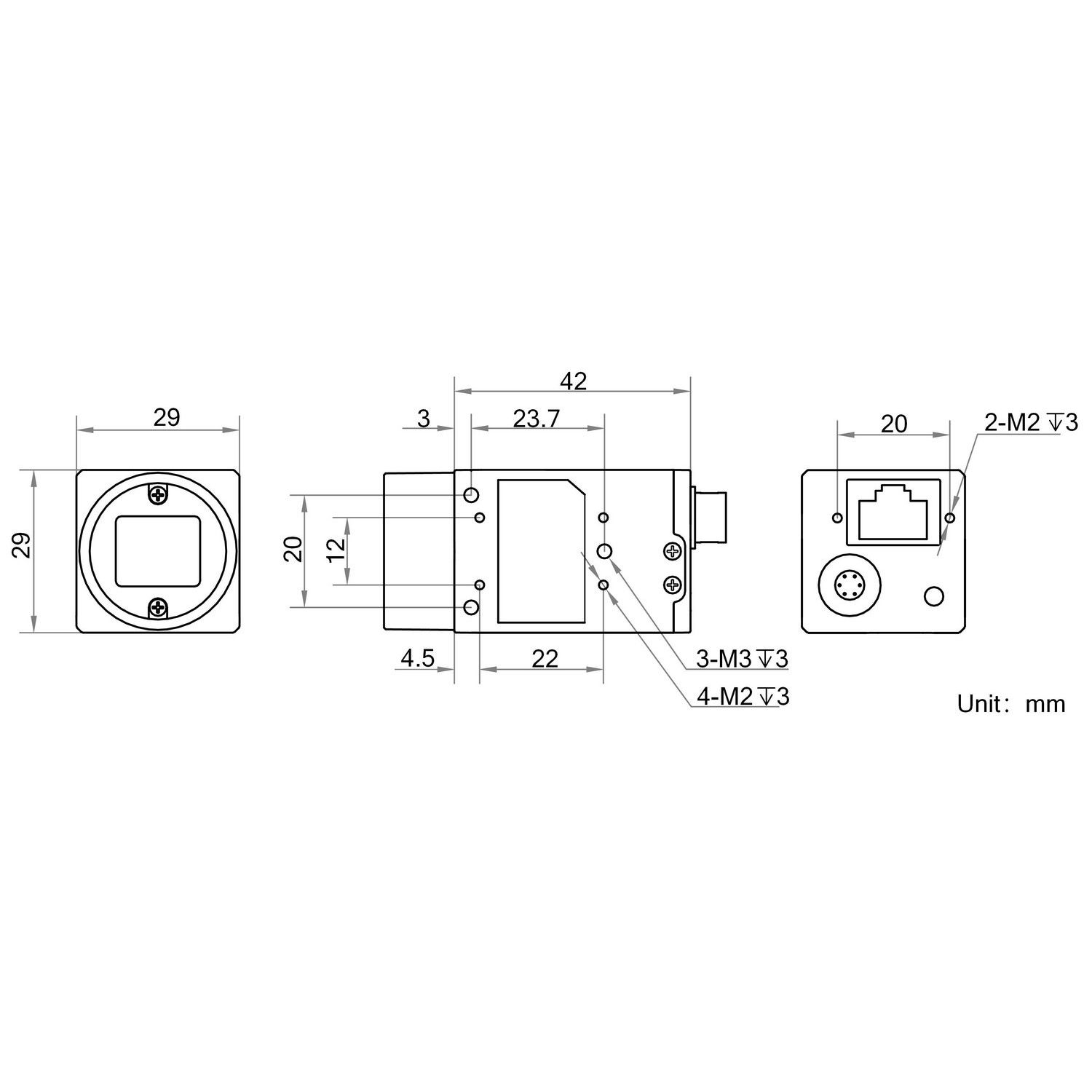

Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″)
Weight Approx. 100 g (0.22 lb.)
Ingress protection IP30
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility GigE Vision V2.0, GenICam
Certification CE, RoHS, KC
