MV-ID2013M-06S-RBN

HIKROBOT Smart Code Reader ID2000 Series

6mm, 1.3MP (1280 × 1024), 60 fps, 45 codes/sec, Red, Fast Ethernet

HIKROBOT Smart Code Reader ID2000 Series

As a compact industrial barcode reader, ID2000 series can be embedded in automated machine equipment and other automated assembly line proximity barcode reading applications. Support common 1D, 2D and DPM codes, the patented lighting design provides high-quality image lighting.
Supports the identification of multiple 1D and 2D codes and DPM codes like laser engraving, inkjet and others. The decoding frame rate can reach up to 20fps and the code reading speed can reach 45 codes/s.
With a size of 46×25×38mm, ID2000 series support two installation methods (side/back), which can be perfectly embedded in miniaturized or existing automated machine equipments and can maximize saving installation space.

SKU: MV-ID2013M-06S-RBN Category: Tags: , , , , ,
Compare
  • Built-in deep learning algorithm to read codes with good robustness.
  • Compact design and small in size.
  • Adopts aviation connector for single cable wiring.
  • Adopts LED aiming light to help aim codes.
  • Adopts focus knob for adjusting focusing manually.
  • Adopts multiple IO interfaces and plug-in power interface.
  • Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.

Model Product Model MV-ID2013M-06S-RBN
Type 6mm focal length 1.3MP Ultra-Compact Industrial Code Reader
Performance Symbologies 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix
Max. frame rate 60 fps
Max. reading speed 45 codes/sec
Sensor type CMOS, global shutter
Pixel size 4 µm × 4 µm
Sensor size 1/2.7″
Resolution 1280 × 1024
Exposure time 35 μs to 1 sec
Gain 0 dB to 15 dB
Mono/color Mono
Communication protocol SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus TCP, UDP, Fins
Optics Focal length 6.72 mm (0.3″)
Working distance 40 mm to 120 mm (1.6″ to 4.7″),
Ambient illumination 0 lux to 50000 lux
Light source Red
Aiming system Green LED
Electrical feature Data interface Fast Ethernet
Digital I/O 17-pin M12 connector provides power and I/O, including configurable bi-directional none-isolated I/O × 4: input (Line 0/1) and output (Line 2/3) by default, RS-232 × 1. Device trigger via pressing button on side supported.
Power supply 12 VDC to 24 VDC
Max. power consumption Approx. 10.6 W@24 VDC
Mechanical Lens mount M10-mount, adjusting focus manually supported
Indicator Power indicator (PWR), network indicator (LNK), and status indicator (STS).

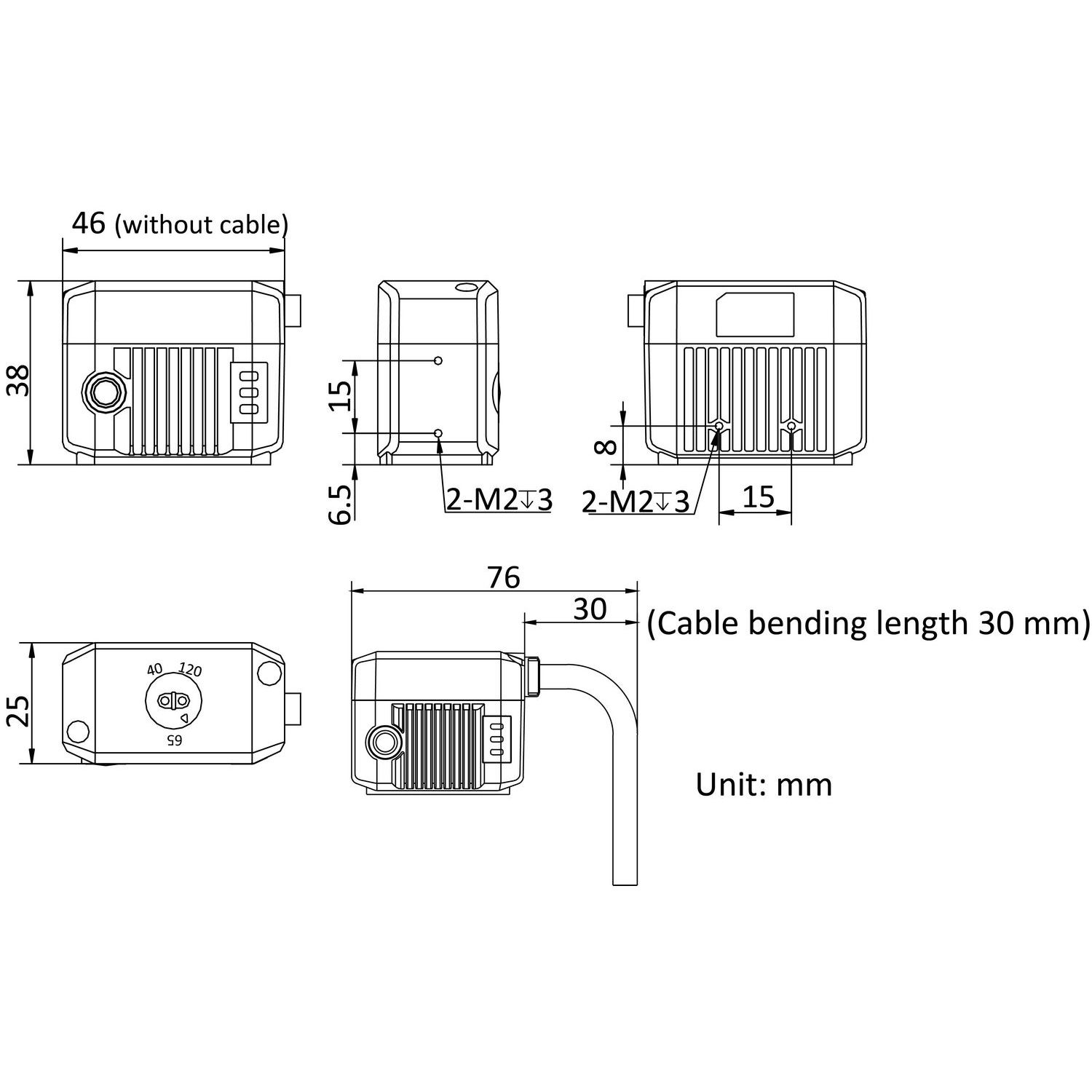

Dimension 46 mm × 38 mm × 25 mm (1.8″ × 1.5″ × 1.0″)
Weight Approx. 160 g (0.35 lb.)
Ingress protection IP65
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software IDMVS
Certification CE, RoHS
