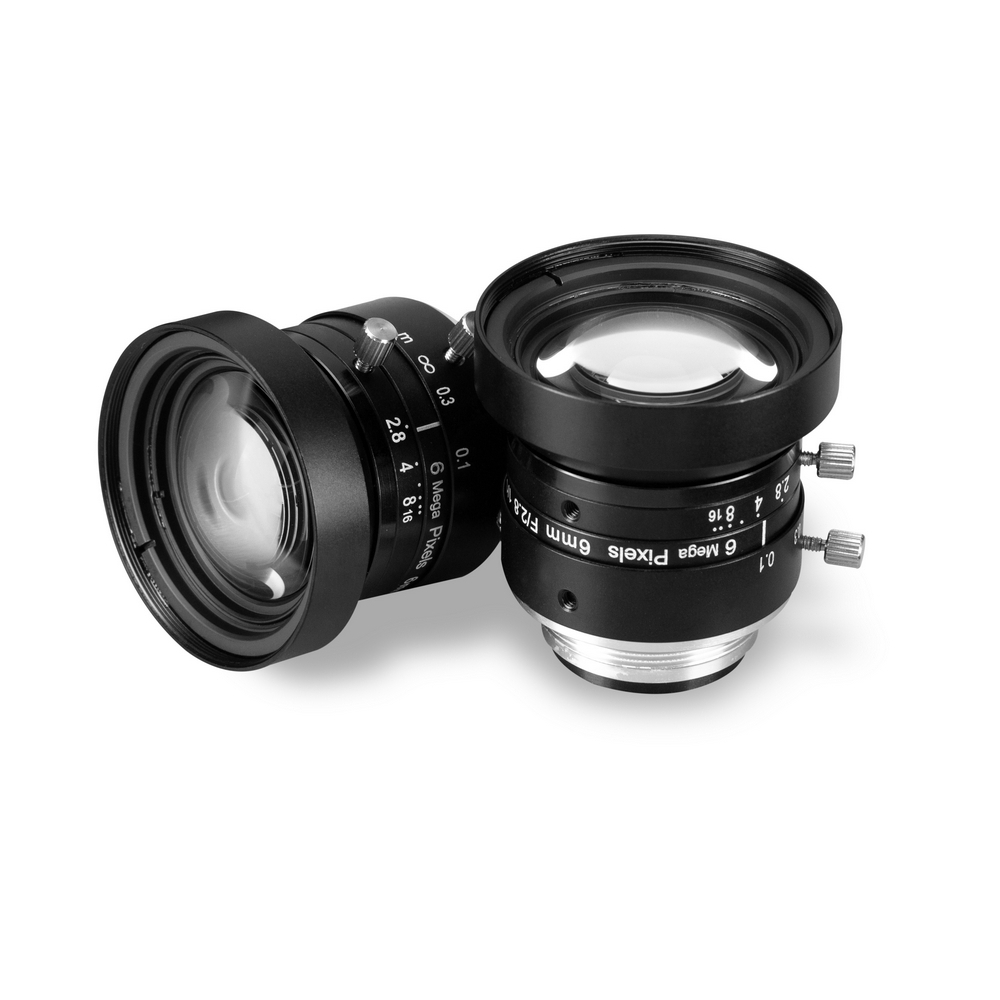

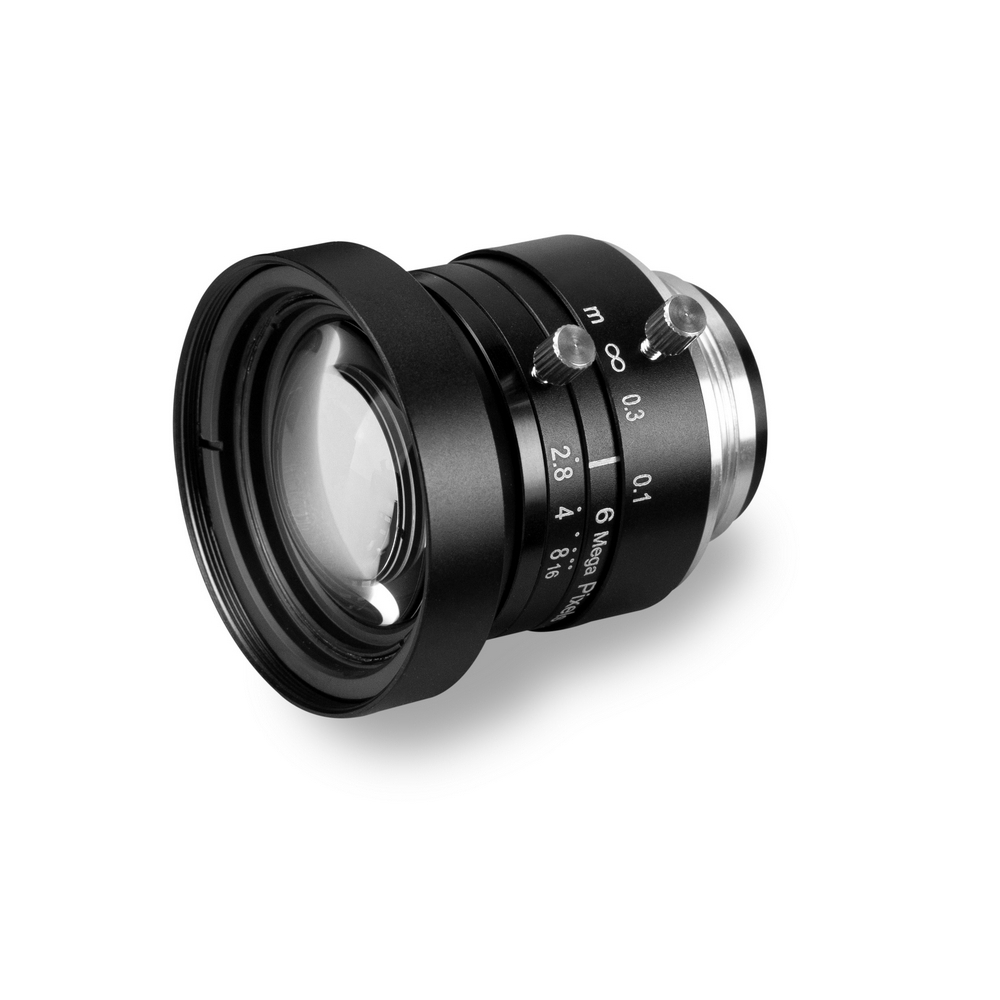

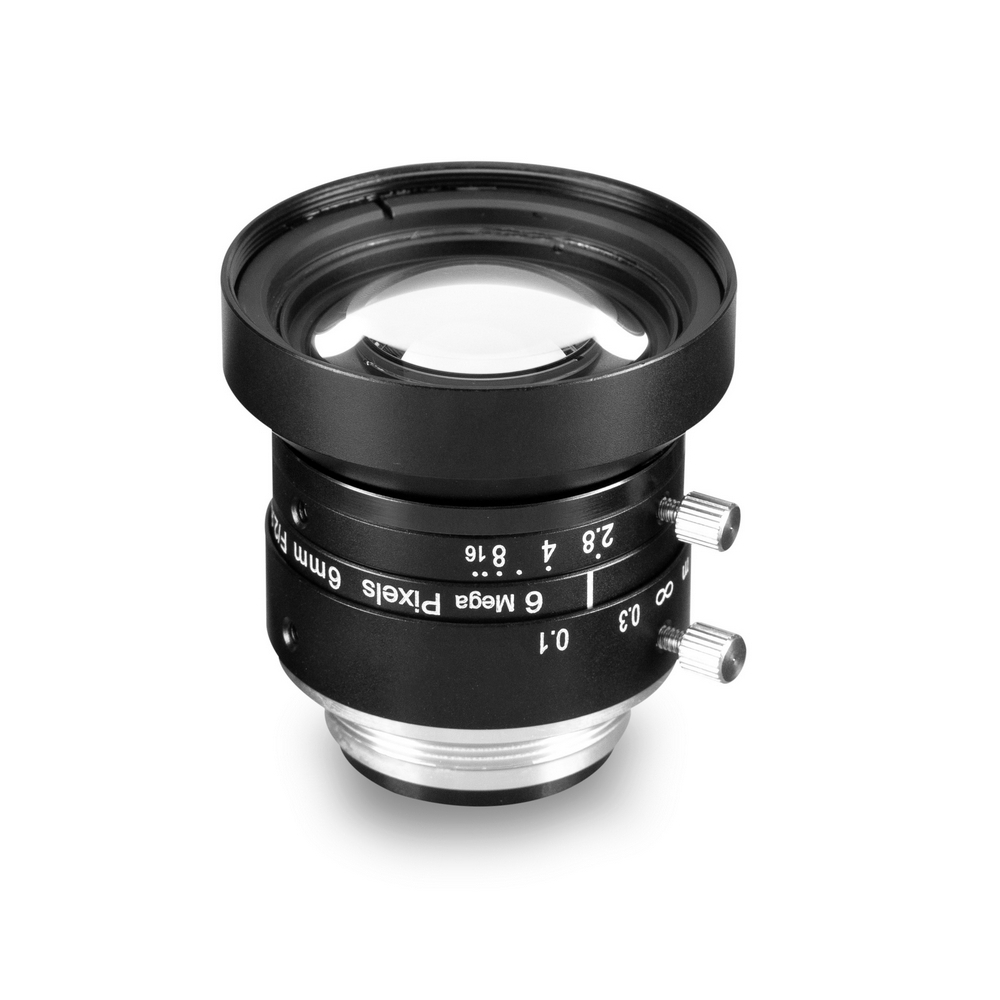

HN-P-0628-6M-C1/1.8

Ultra-Low Distortion Machine-Vision Lens

6mm, 6Mpix, 1/1.8", C-Mount

Ultra-Low Distortion Machine-Vision Lens

  • Designed for machine vision applications
  • 6 megapixels high resolution
  • Compact & Lightweight
  • Ultra-low optical distortion
  • Wide application
SKU: HN-P-0628-6M-C1/1.8 Categories: , Tags: , , ,
Compare

Model HN-P-0628-6M-C1/1.8
Sensor Size 1/1.8″
Pixel size (μm) 2.4
Focal Length (mm) 6±5%
Total Track Length (mm) 49.5±0.2
Flange distance (mm) 17.526±0.2
F/No. F2.8-F16
Angle of View (H×V) 62.5° × 44.47°(74.96°)
TV Distortion (%) ±0.81
Focus Range 0.1m-∞
Filter Thread M37.5×P0.5-7H
Mount C-mount

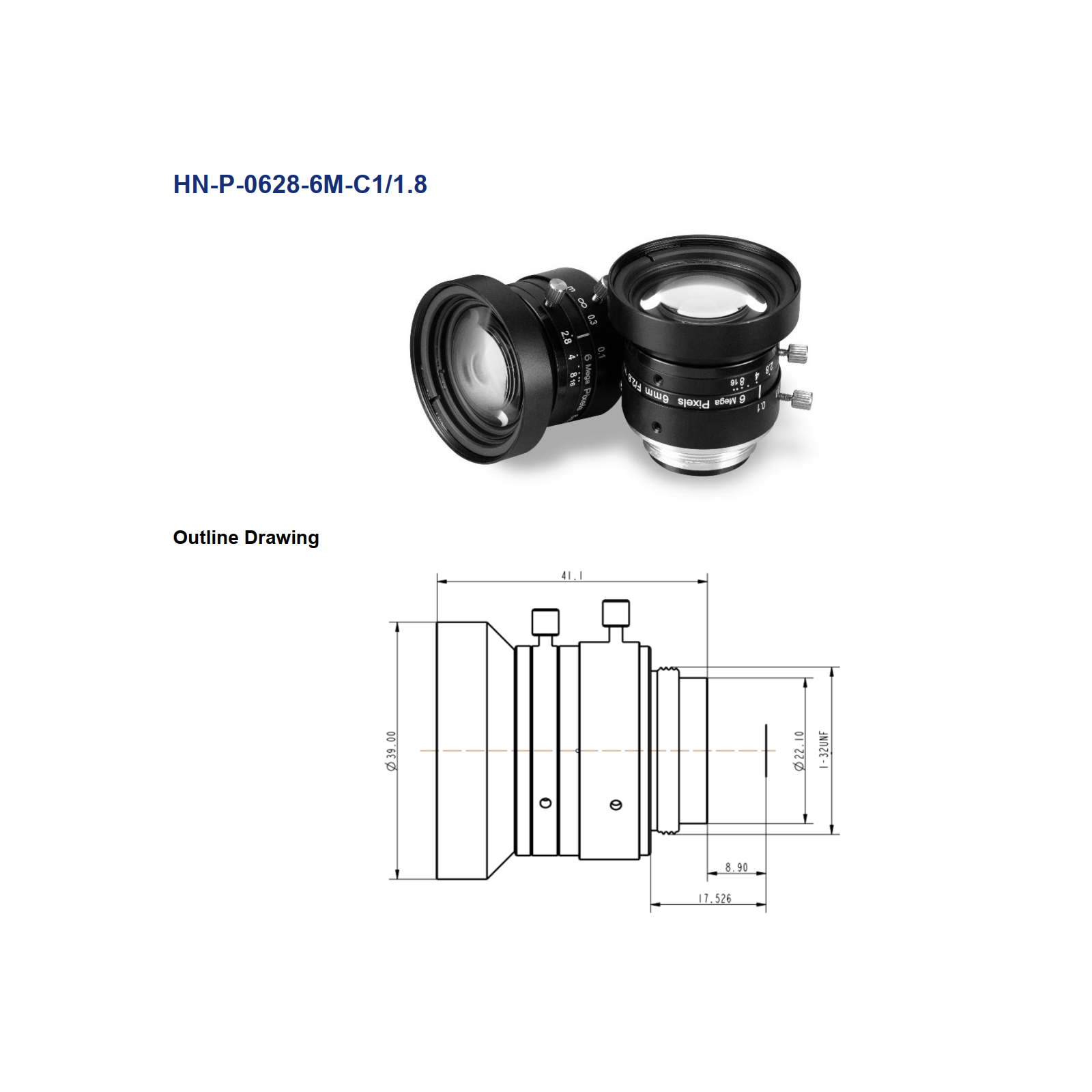

Dimensions (mm) Φ39.0 × 32.5(w/o thread)
