- Optimization design for machine vision
- High resolution, High consistency of picture definition
- Low Distortion, High relative illumination
- S-Mount (M12 * 0.5), Easy system integration

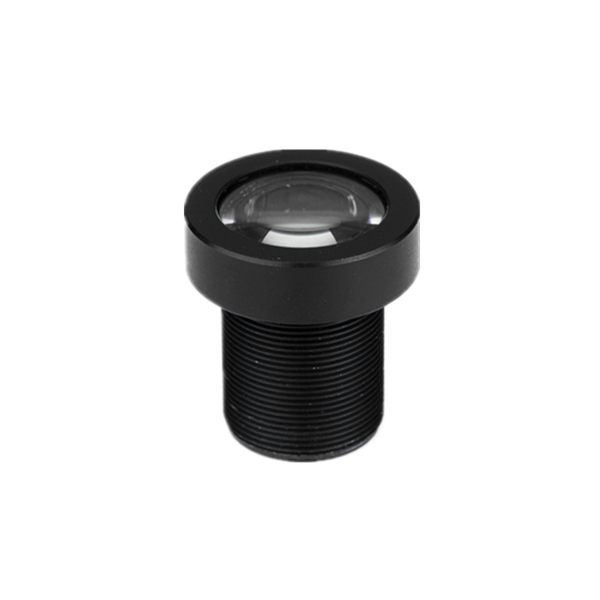

MVL-HF0628-05S
HIKROBOT Lens, M12 Series HF
HIKROBOT Lens, M12 Series HF
The M12 lens product series is aimed at the needs of embedded vision applications. On the premise of ensuring imaging performance, it adopts the all-metal lens barrel & all-glass lens design to improve product stability and is adaptable to strict industrial environments.
Supporting 5Mpix resolution, M12 Lens can provide high-quality imaging effects. It adopts M12 optical interface within a small size and is suitable for mainstream embedded vision application requirements, which is also easier for vision system integration.
| Model | Product Model | MVL-HF0628-05S |
| Type | 6mm, F2.8, 1/1.8", 5MP Lens, M12-Mount | |
| Performance | Focal length | 6 mm |
| F-Number | F2.8 | |
| Image Size | Φ9 mm(1/1.8'') | |
| TV Distortion | <0.5% | |
| Working Distance Range | 100 ~ 850 mm | |
| Field of View | D（8.86 mm）：73°H（7.37 mm）：63°V（4.91 mm）：45° | |
| Mechanical | Mount | S-Mount |
| TTL | 28.4 ~28.9 mm | |

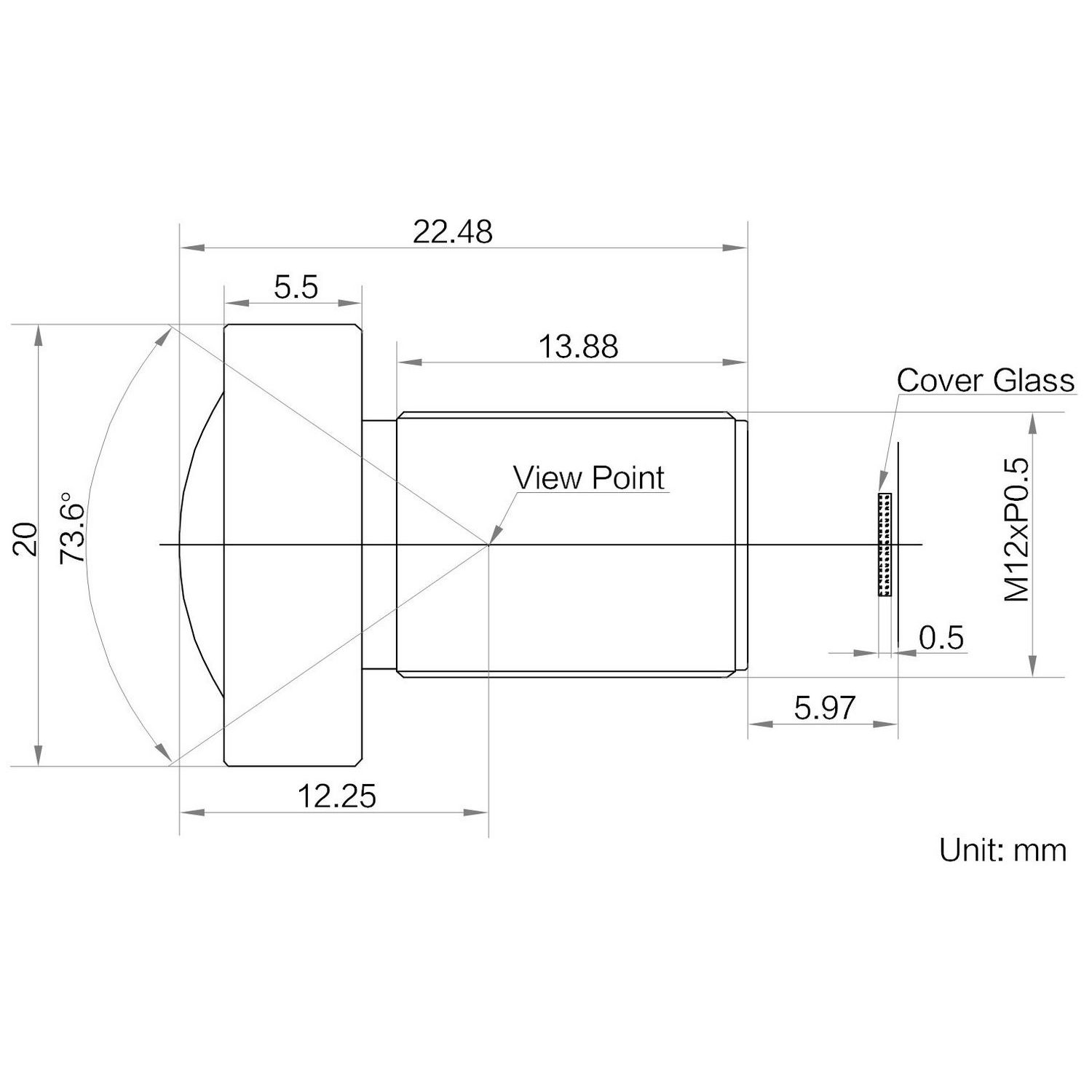

| Dimension | Φ20 mm×22.48 mm | |
| Temperature | -10 ~ 50℃ | |
| General | Certification | RoHS2.0 |
