MV-CH650-90YM-M58S-NN

HIKROBOT Area Scan Camera CH Series

3.2 μm, 71 fps @ 9344 × 7000, Mono, M58*0.75, CoaXPress

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Compare
  • Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
  • Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
  • Supports LSC sequencer polling function.
  • Adopts CXP-12 interface to transmit data.
  • Supports the flat field correction.
  • Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CH650-90YM-M58S-NN
Type 65MP Area Scan Camera, CXP-12, GMAX3265, Mono, M58-mount, without fan
Performance Sensor type CMOS, global shutter
Sensor model GMAX3265
Pixel size 3.2 µm × 3.2 µm
Sensor size 29.9 mm × 22.4 mm
Resolution 9344 × 7000
Max. frame rate 71 fps @9344 × 7000
Dynamic range 66 dB
SNR 40 dB
Gain 1.25x
Exposure time 15 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/12
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface CoaXPress
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply 24 VDC, CXP-1 and CXP-2 connectors support PoCXP
Power consumption Typ. 13.0 W@24 VDC

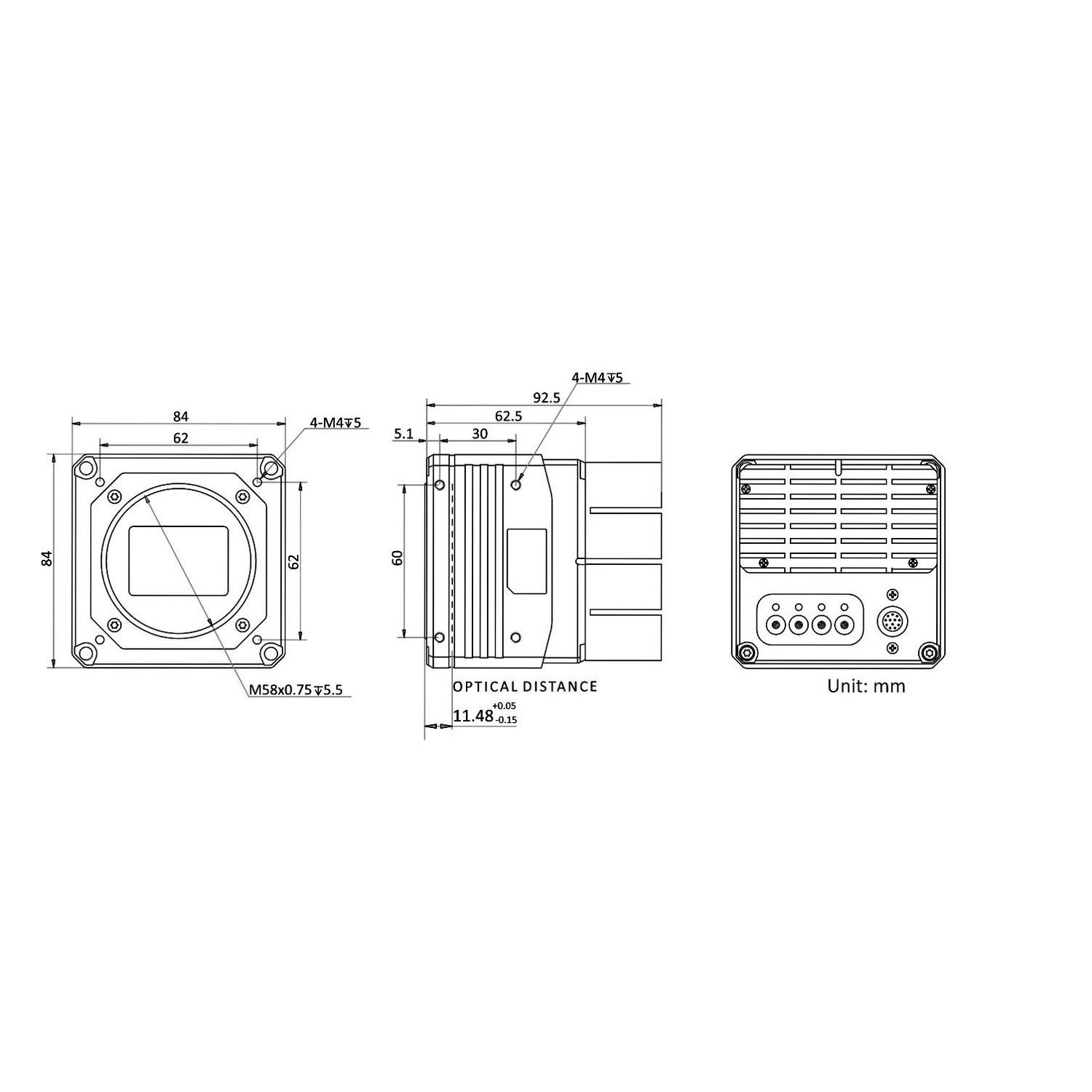

Mechanical Lens mount M58*0.75, optical back focal length 11.48 mm (0.5″)
Dimension 84 mm × 84 mm × 62.5 mm (3.3″ × 3.3″ × 2.5″)
Weight Approx. 650 g (1.4 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or frame grabber software meeting with CoaXPress Protocol
Operating system 32/64-bit Windows 7/10 with 8 GB memory or above
Compatibility CoaXPress, GenlCam
Certification CE, RoHS, KC
