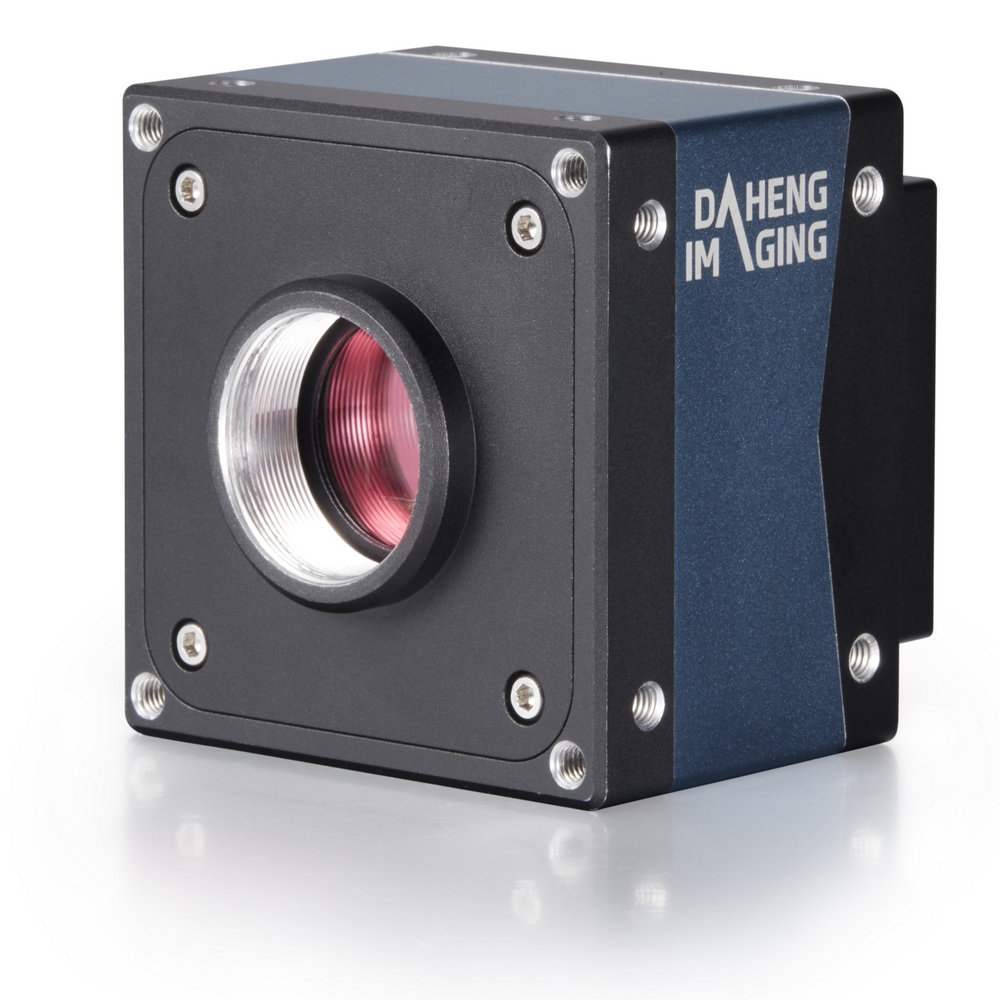

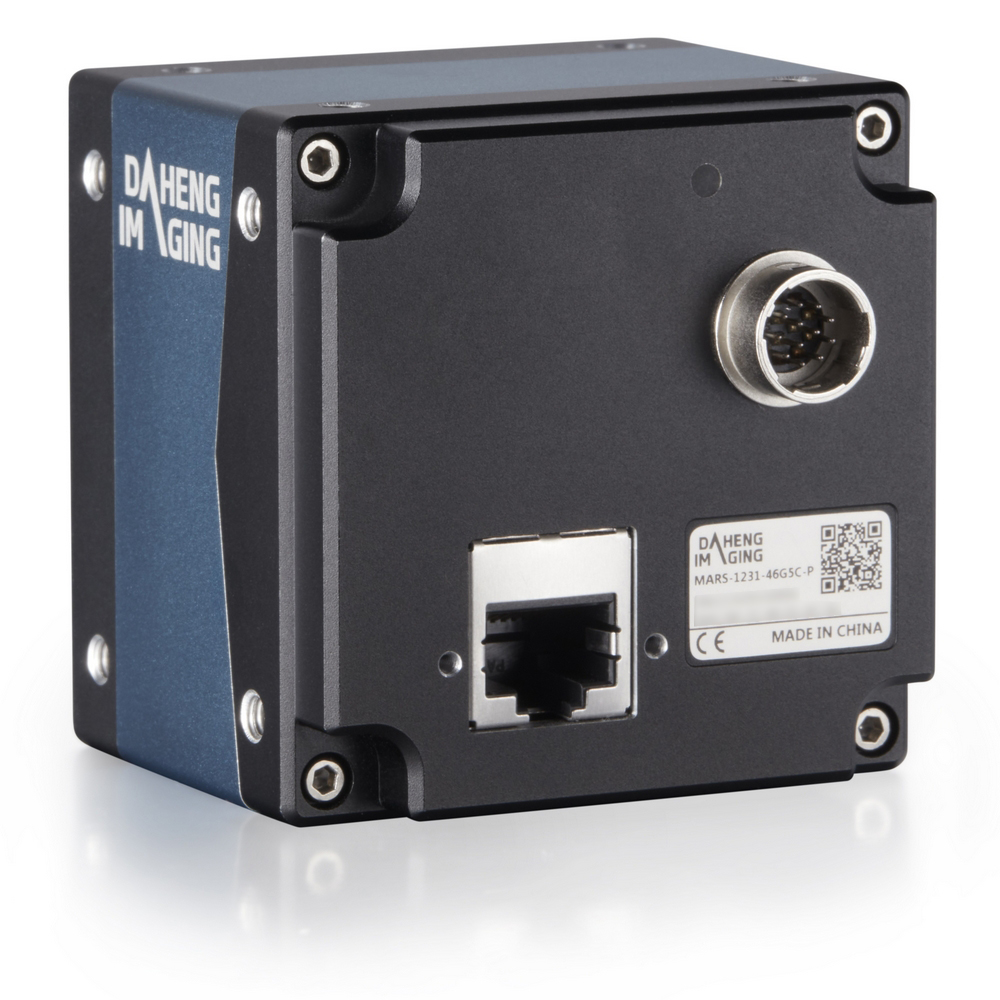

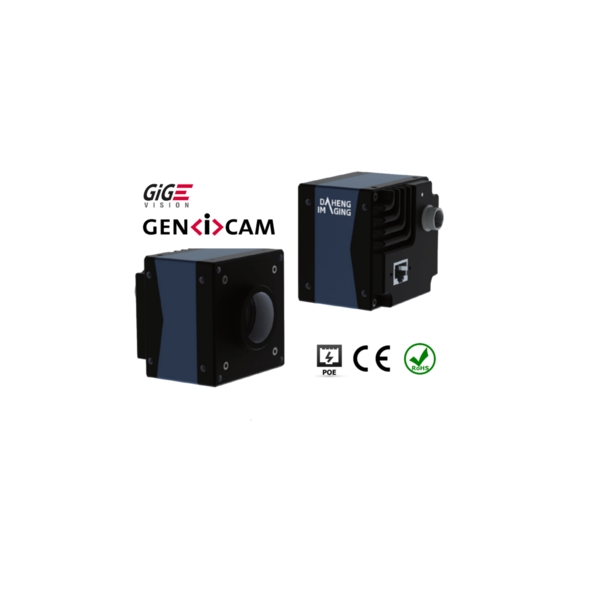

MARS-880-13GM-P

Large sensor GigE PoE industrial digital camera

1", 13fps, 4096x2160, Mono, Global shutter, IMX267, GigE, PoE

Large sensor GigE PoE industrial digital camera

The MARS GigE PoE series (MARS-G-P) camera is DAHENG IMAGING’s large sensor industrial digital camera, featuring high resolution, high definition and low noise. MARS-880-13GM-P is a monochrome GigE Vision camera with the Sony IMX267 CMOS sensor. The Gigabit Ethernet interface is used for long distance transmission. The MARS series camera can be powered over Ethernet and has opto-isolated I/Os. Thanks to the locking screw connectors, the MARS series can secure the reliability of cameras deployed in harsh environments. The MARS cameras are industrial digital cameras with high reliability and high price/performance ratio. Thanks to its robust housings, outstanding performance, attractive price, ease of installation and use, the MARS cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • Power over Ethernet (IEEE802.3af compliant)
  • Operating mode: continuous acquisition, software trigger acquisition and external trigger acquisition
  • Adjustable packet-size and packet-delay
  • Support LUTs and storable user sets
  • Reliable data transmission and compatible with various network cards
  • Compatible with GenICam™ and GigE Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)
Spectral Response Data:

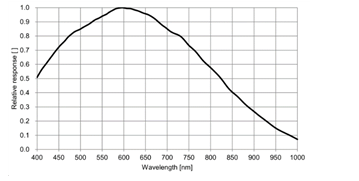

MARS-880-13GM-P Spectral Response

SpecificationsMARS-880-13GM-P
Resolution4096(H) × 2160(V)
Frame Rate13 fps @ 4096 × 2160
Sensor Type1" Sony IMX267 global shutter CMOS
Pixel Size3.45 μm × 3.45 μm
SpectrumMono
Pixel Data FormatsMono8/Mono12
Data InterfaceFast Ethernet (100Mbit/s) or Gigabit Ethernet (1000Mbit/s)
Power Consumption[email protected] DC, [email protected]
Lens MountC-Mount/F-Mount (optional)
Dimensions (L × W × H)62mm × 62mm × 50.4mm (without lens adapter or connectors)
Operating Temp.0°C~45°C
Operating Humidity10%~80%
Weight274g
RegulationsRoHS, CE, KCC, GigE Vision, GenICam, IEEE802.3af
