ME2P-1230-9GM-P

Large sensor GigE industrial digital camera with high definition

1.1", 9fps, 4096x3000, Mono, Global shutter, IMX304, GigE, PoE

Large sensor GigE industrial digital camera with high definition

The MERCURY2 PRO PoE series (ME2P-G-P) camera is DAHENG IMAGING’s large sensor industrial digital camera, featuring outstanding performance, compact design and flexible installation. ME2P-1230-9GM/C-P is a monochrome/color GigE Vision camera with the Sony IMX304 CMOS sensor. The ME2P-1230-9GM/C-P cameras has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for ME2P-G-P. Thanks to the extremely compact design (36mm × 31mm × 50.6mm), locking screw connectors, the MERCURY2 PRO PoE series cameras can secure the reliability of cameras deployed in harsh environments. Featuring compact design, outstanding performance, ease of installation and use, the MERCURY2 PRO cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • Power over Ethernet (IEEE802.3af compliant)
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition/Software trigger acquisition/External trigger acquisition
  • 12-bit or 8-bit Mono/Bayer output
  • Support LUTs and storable user sets
  • Support ExposureEnd Event notification
  • Adjustable packet-size and packet-delay, and reserved bandwidth
  • Two exposure time modes: standard exposure time mode / minimal exposure time mode
  • Robust full metal housing and optional lockable devices
  • Long cable lengths: up to 100 m (without any hubs, repeaters etc.)
  • Compatible with GenICam™ and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON, MERLIC and LabVIEW directly
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)
Spectral Response Data:

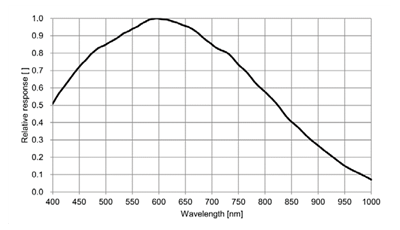

ME2P-1230-9GM-P Spectral Response

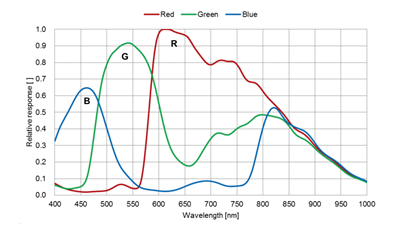

ME2P-1230-9GC-P Spectral Response

Specifications ME2P-1230-9GM-P ME2P-1230-9GC-P
Resolution 4096 (H) × 3000 (V)
Frame Rate 9 fps
Sensor Type 1.1″, global shutter, Sony IMX304
Pixel Size 3.45 μm × 3.45 μm
Spectrum Mono Color
Pixel Data Formats Mono8/Mono12 Bayer RG8/Bayer RG12
Data Interface GigE
Power Consumption <3W @24V; <3.75W @PoE
Lens Mount C Mount

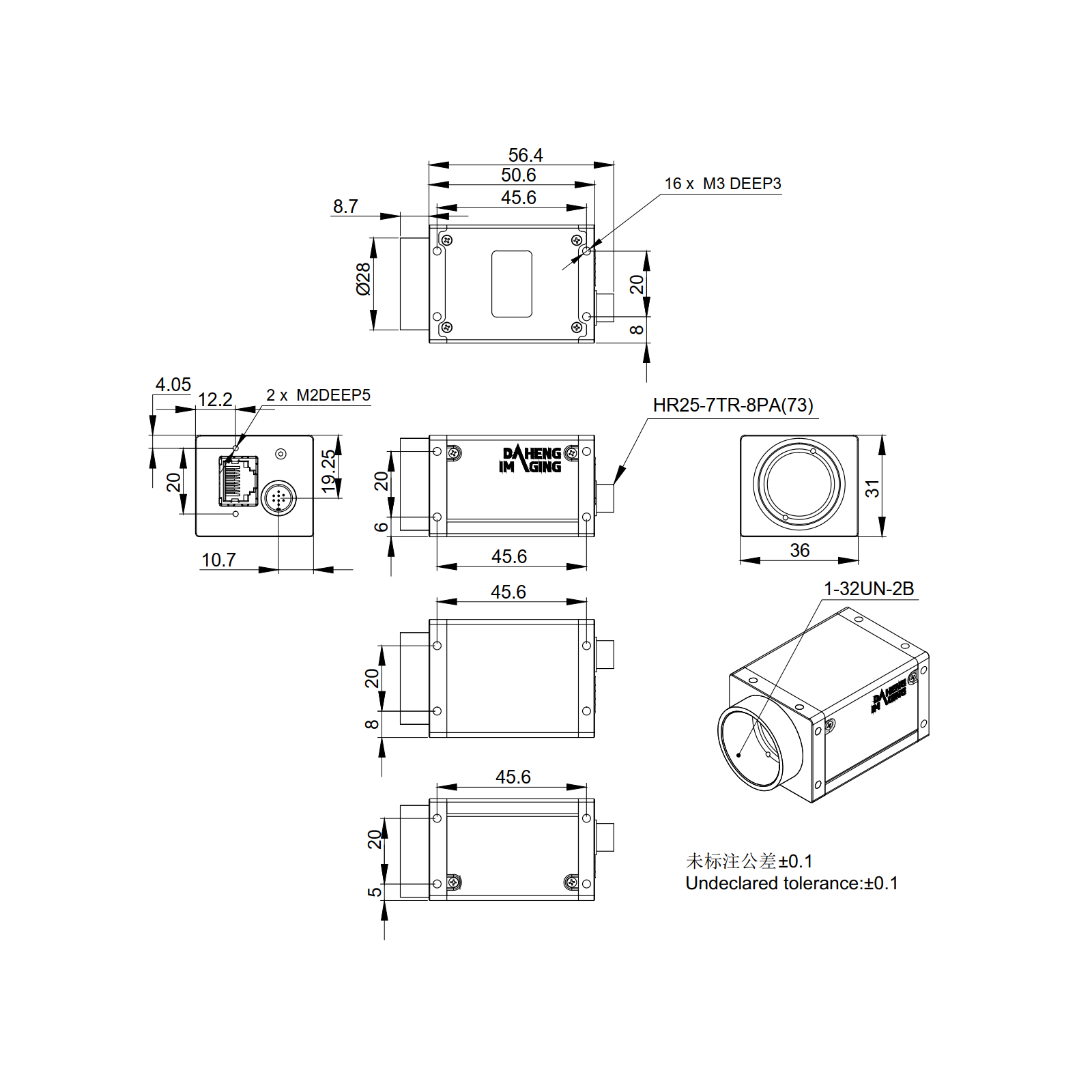

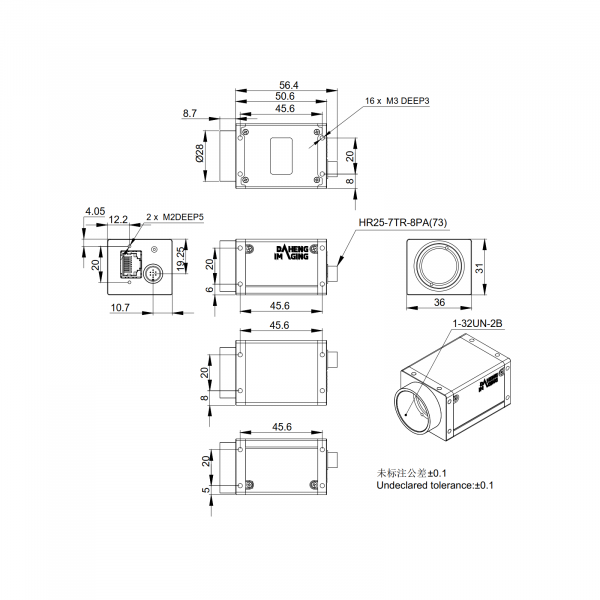

Dimensions (L × W × H) 36mm × 31mm × 50.6mm(without lens adapter or connectors)
Operating Temp. 0°C~+45°C
Storage Temp. -20°C ~ +70°C
Operating Humidity 10% ~80%
Weight 75g
Regulations CE, RoHS, GigE Vision, GenICam, IEEE802.3af
