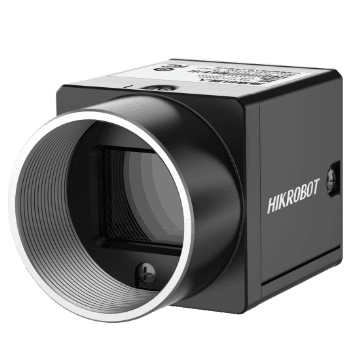

2MP Area Scan Camera, USB3, GMAX4002, Color

Name: 2MP Area Scan Camera, USB3, GMAX4002, Color
Brand: Hikrobot
SKU: MV-CU020-90UC

MV-CU020-90UCHikrobotSensor: GMAX4002 Global shutter →

Request a quote Datasheet PDF Manual CAD drawing

2–5 MP USB3 Area Scan Cameras — GMAX4002, Global shutter, CMOS, C-mount

Model

Product Model: MV-CU020-90UC
Type: 2MP Area Scan Camera, USB3, GMAX4002, Color

Performance

Sensor type: CMOS, global shutter
Sensor model: GMAX4002
Pixel size: 4 μm x 4 μm
Sensor size: 1/1.7"
Sensor size (computed)from resolution × pixel pitch: 8.19 × 4.8 mm
Sensor diagonal: 9.49 mm
Resolution: 2048 × 1200
Max. frame rate: 150.2 fps @ 2048 × 1200 Bayer GB 8
Dynamic range: 66.9 dB
SNR: 40.8 dB
Gain: 0 dB to 11.1 dB
Exposure time: 4 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono: Color
Pixel format: Bayer GB 8/10/10Packed/12/12Packed
Binning: Supports 1 × 1, 2 × 2, 4 × 4
Decimation: Supports 1 × 1, 2 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: USB3.0, compatible with USB2.0

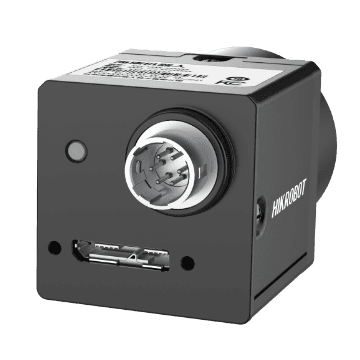

Digital I/O: 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply: 9 VDC to 24 VDC, supports USB power supply
Power consumption: Typ. 2.2 W @ 5 VDC (USB3.0 provides power supply)

Mechanical

Lens mount: C-mount
Dimension: 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight: Approx. 80 g (0.2 lb.)
Ingress protection: IP30 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or third-party software meeting with USB3 Vision Protocol
Operating system: 32/64-bit Windows 7/10/11, 32/64-bit Linux
Compatibility: USB3 Vision, GenlCam
Certification: CE, RoHS, KC

Firmware

MV_CU020_90UC_STD_V2.2.6_241224_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

24.6 mm

Magnification: 0.082×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Data cables the manufacturer lists

MV-ACU3-MBMS(DOWN)-AM-ST-3M

MV-ACU3-MBMs-AM-ST-1m

Power and I/O cables

MV-ACP-H6P(LEFT)-OPEN-ST-5M

MV-ACP-H6p(left)-open-ST-5m

MV-ACP-H6P-OPEN-HF-10M

MV-ACP-H6p-open-HF-10m

MV-ACP-H6P-OPEN-SF-10M

MV-ACP-H6p-open-SF-10m

MV-ACP-H6P-OPEN-ST-1M

MV-ACP-H6p-open-ST-1m

Frame grabbers

MV-GU2104

MV-GU2100 Series Quad USB3.0 Adaptor

Lenses that fit this camera

Filtered by the C-mount thread and by coverage — the image circle is at least 9.49 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
