Vision Components — PCI-E gen2 × 4
Model
- Product Model
- MV-GU2104
- Type

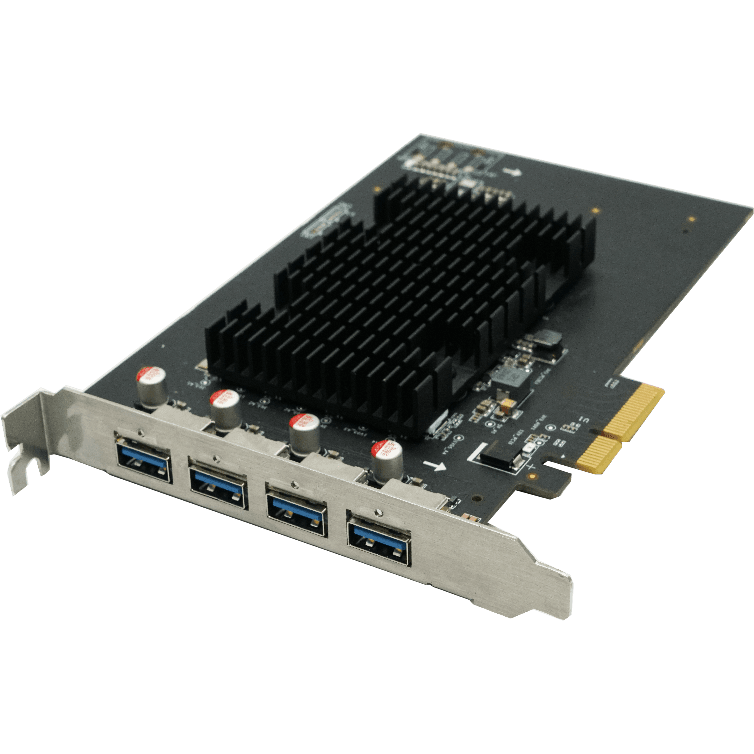

- MV-GU2100 Series Quad USB3.0 Adaptor
Host interface
- Interconnect
- PCI-E gen2 × 4
- Delivery bandwidth
- 1720 MB/s (max. transmission bandwidth) 1600 MB/s (sustained transmission bandwidth)
Camera interface
- Standard
- USB 3.0
- Interface
- USB3.0 type-A, female
- Power output
- Each channel provides 4.5 W @ 5 VDC at most
- Camera type supported
- USB industrial camera
- Camera quantity supported
- 4 at most
- Camera connection speed
- Max. 5 Gbps (the actual speed is 2.9 Gbps)
- Stream
- 4
Processing feature
- Pixel format
- Mono 8/10/10Packed/12/12Packed Bayer 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
Electrical feature
- Power consumption
- Typ. 6 W (without USB power supply) Typ. 24 W (with USB power supply)
Mechanical
- Dimension
- 181.1 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Weight
- 160 g (0.4 lb.)
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Operating system
- Windows 7/10/11, Linux
- Certification
- CE, RoHS
