Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices. The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Model
- Product Model

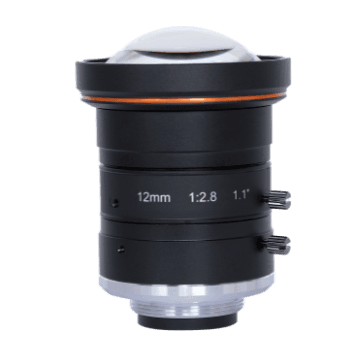

- MVL-KF1228M-12MP
- Type
- 12mm, F2.8, 1.1", 12MP Lens, C-Mount
Performance
- Field of view
- D (17.52mm): 70.5° H (14.14mm): 59.8° V (10.35mm): 46.2°
- Focal length
- 12 mm
- F-number
- F2.8 to F16
- Image size
- Ø17.6 mm
- Optical distortion
- –1.79%
- Minimum object distance
- 0.1 m
Mechanical
- Dimension
- Ø47 mm × 56.99 mm (Ø1.9" × 2.2")
- Weight
- 186 g (0.4 lb.)
- Temperature
- –10°C to 50°C (14°F to 122°F)
- Iris control
- Manual
- Focus control
- Manual
- Mount
- C-mount
- Flange back length
- 17.526 mm
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
200 mm
Magnification: 0.04×
Resolution per pixel
0.0817 mm/px
Smallest detectable feature: 0.245 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
