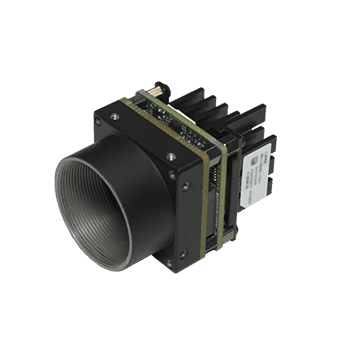

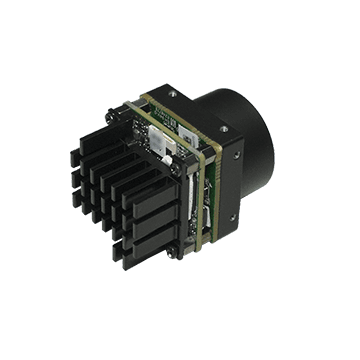

5MP Board Level Camera，USB3.0 , FPC interface，Color，C-mount
The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements. Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures. The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.
Model
- Product Model
- MV-CB050-11UC-C
- Type
- 5MP Board Level Camera，USB3.0 , FPC interface，Color，C-mount
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Sony® IMX264
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 2/3"
- Sensor size (computed)from resolution × pixel pitch
- 8.45 × 7.07 mm
- Sensor diagonal
- 11.01 mm
- Resolution
- 2448 × 2048
- Max. frame rate
- 60 fps @ 2448 × 2048
- Dynamic range
- 72 dB
- SNR
- 40.2 dB
- Gain
- 0 dB to 24 dB
- Exposure time
- UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono
- Color
- Pixel format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB3.0, compatible with USB2.0
- Digital I/O
- Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
- Power supply
- 5 VDC (USB3.0 provides power supply)
- Power consumption
- Typ. 2.8 W @ 5 VDC (USB3.0 provides power supply)
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 37 g (0.08 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
