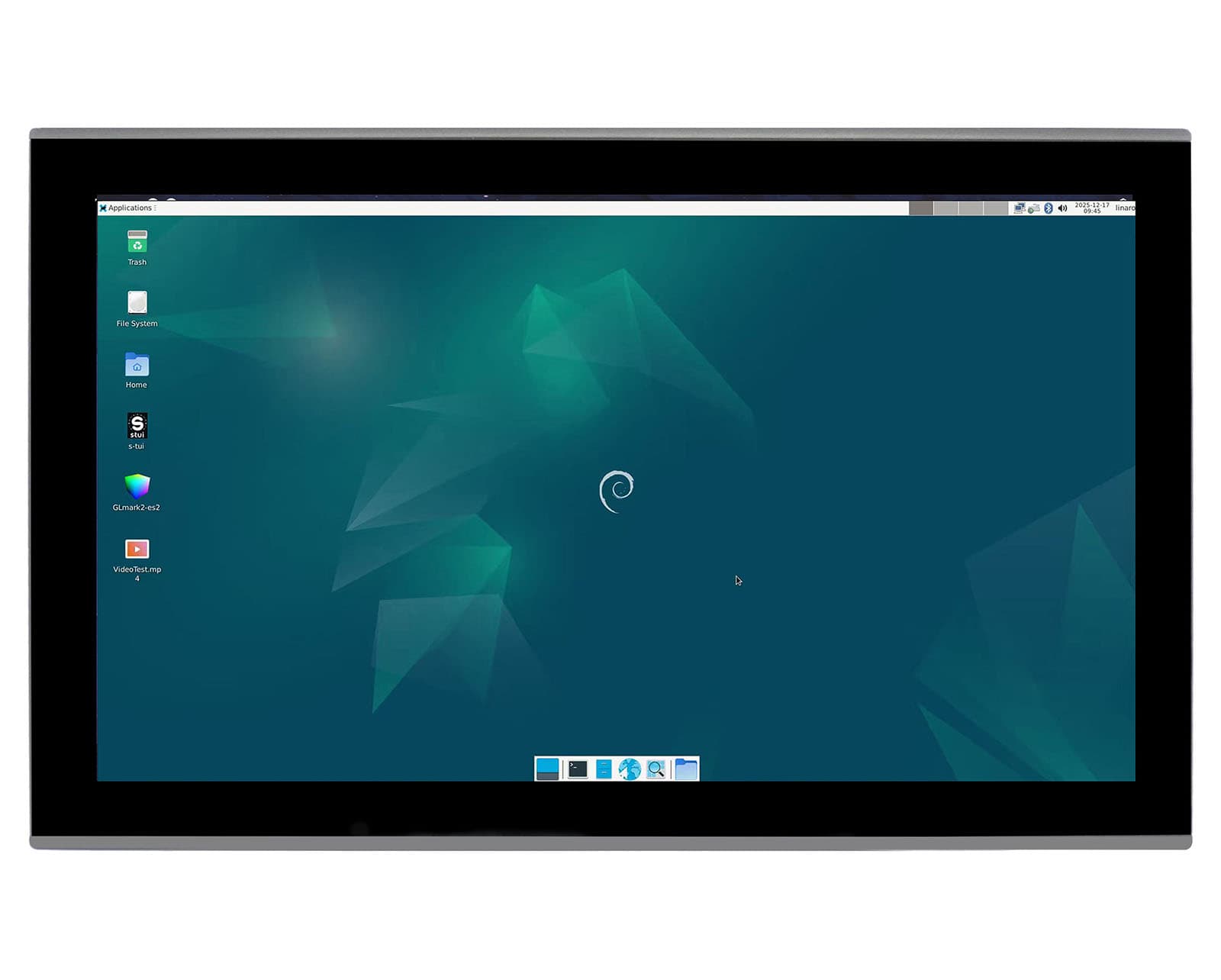

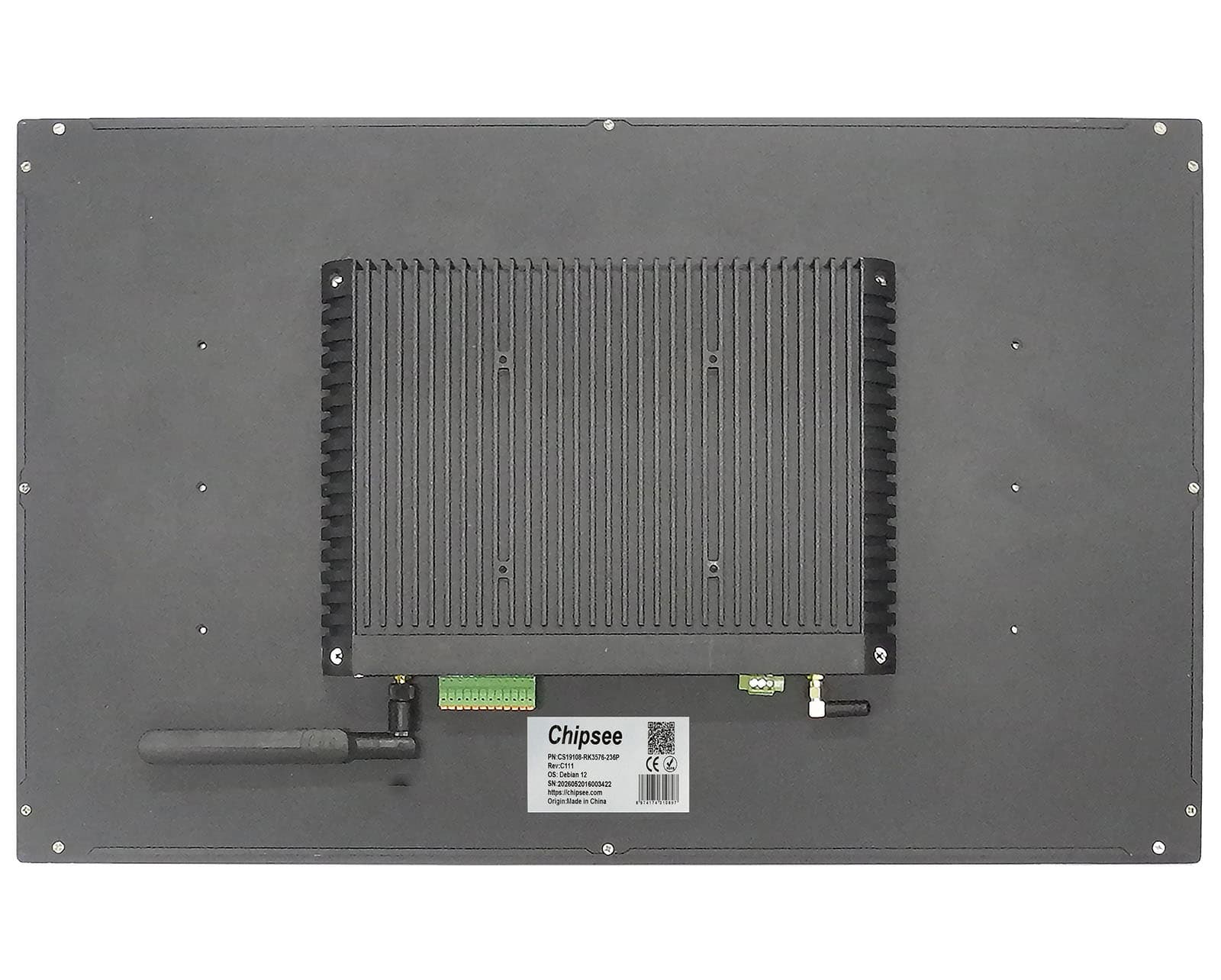

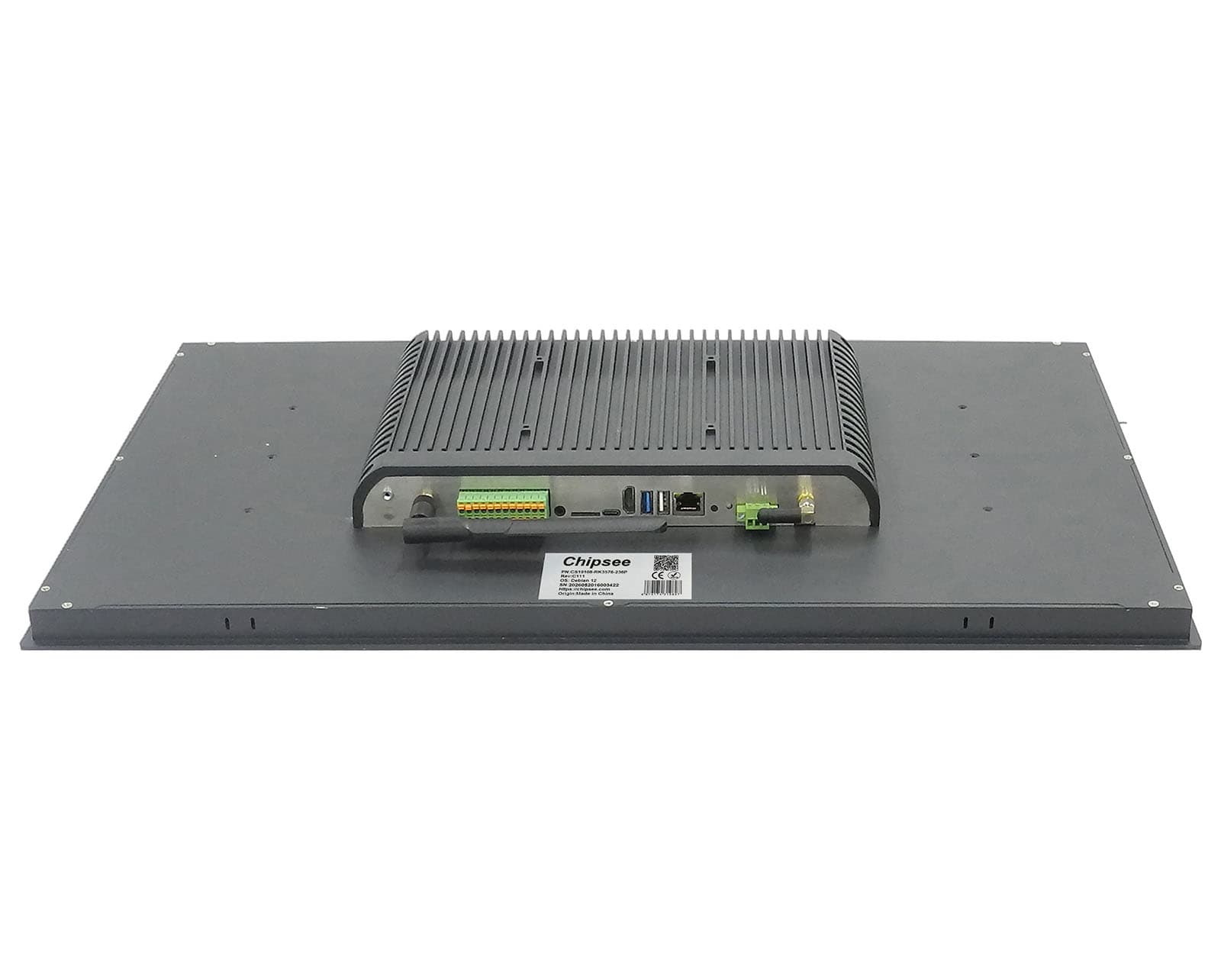

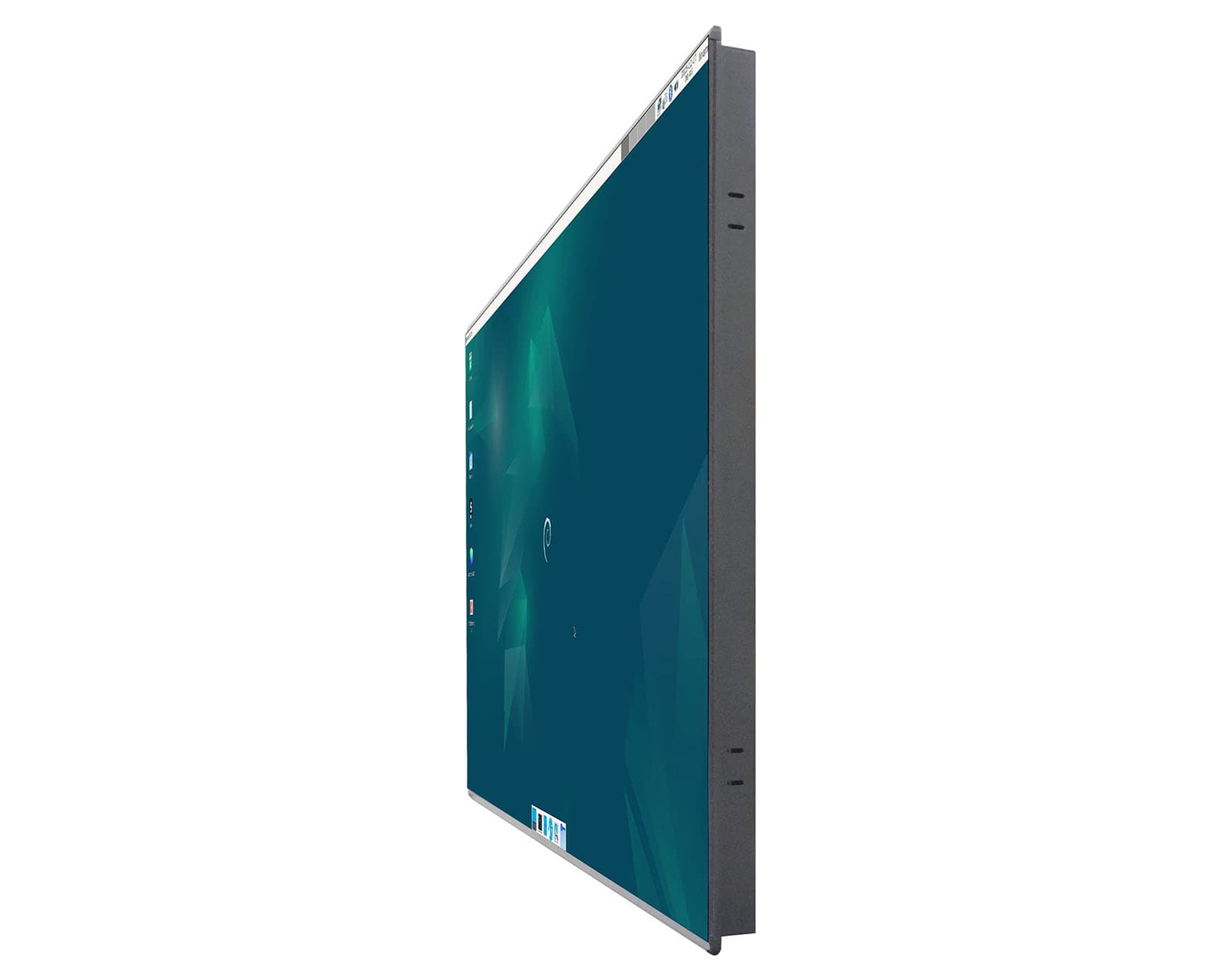

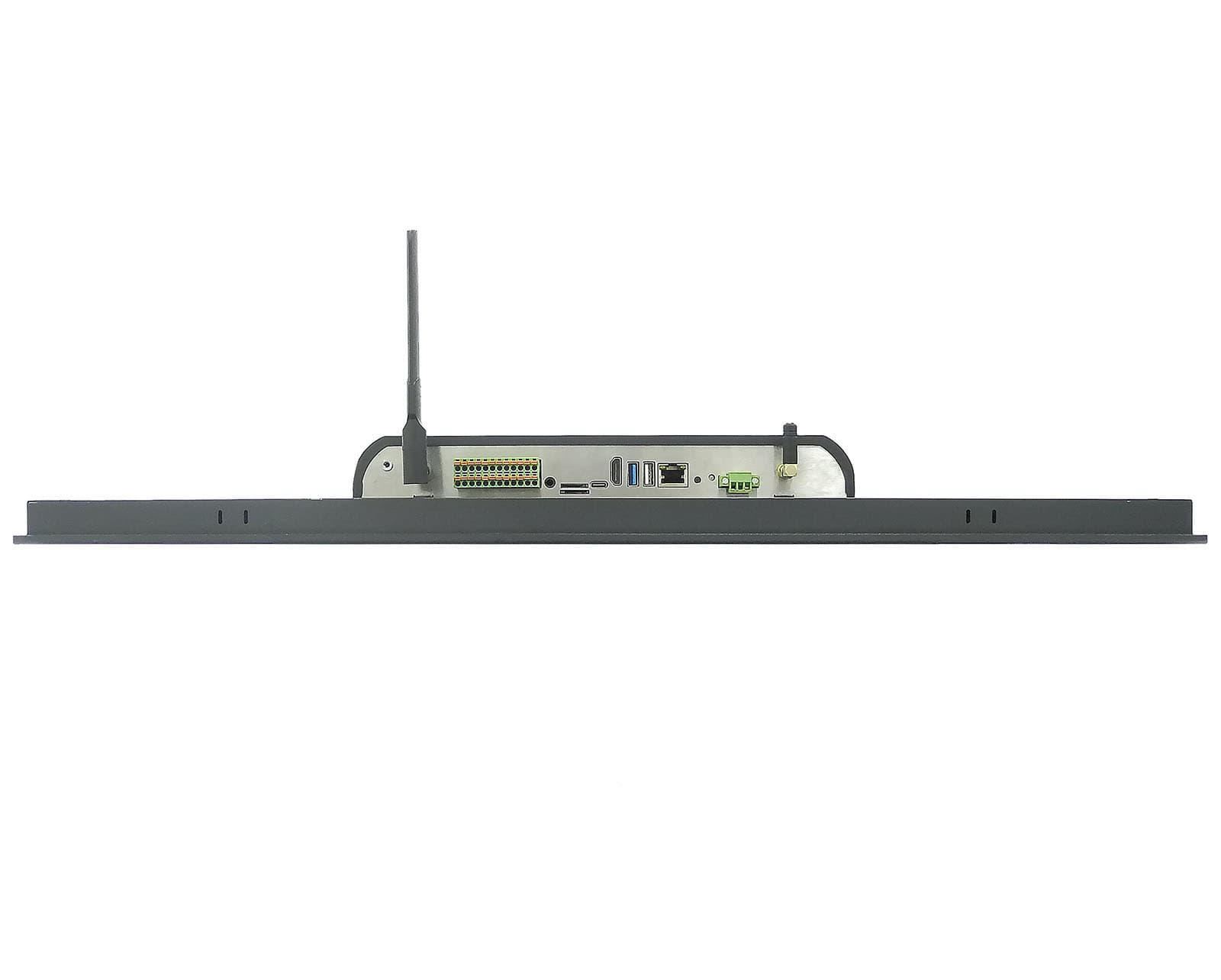

PPC-RK3576-236

Спецификации

SKU

CS19108-RK3576-236P

Форм-фактор

Panel

Процесор

ARM: Rockchip RK3576

NPU ускорител

6 TOPS(Sparsity)@INT8

Графичен процесор

ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding

Оперативна памет

4GB LPDDR5

Вградена памет (eMMC)

64GB

Постоянна памет

TF Card, Supports up to 128GB SDHC

PCIe

Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module

Диагонал на екрана

23.6

Разделителна способност

1920*1080

Яркост

250 NIT

Сензорен екран

Capacitive + Armored Glass

USB

(USB 3.0 port and USB-C port cannot be used at the same time); 1 x USB 3.0 HOST; 1x USB 2.0 HOST; 1x USB Type-C

CAN

2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232.

GPIO

8 Channels, 4 Input, 4 Output

HDMI

1 x HDMI OUT

RS232

2 x RS232 by default (including 1 debug port). Up to 6 x RS232.

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

Ethernet

1 x RJ45, GbE

Wi-Fi / Bluetooth

YES

4G

Optional

PoE

Optional; Power Over Ethernet 802.3af/at

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

YES

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

15-30V DC

Консумация

18W Typical; 24W Max

Ток при 15 V

1.2A Typical; 1.6A Max

Работна температура

-20℃ ~ 60℃

Операционна система

Android; Buildroot; Debian; Ubuntu

Начин на монтаж

VESA, PANEL
