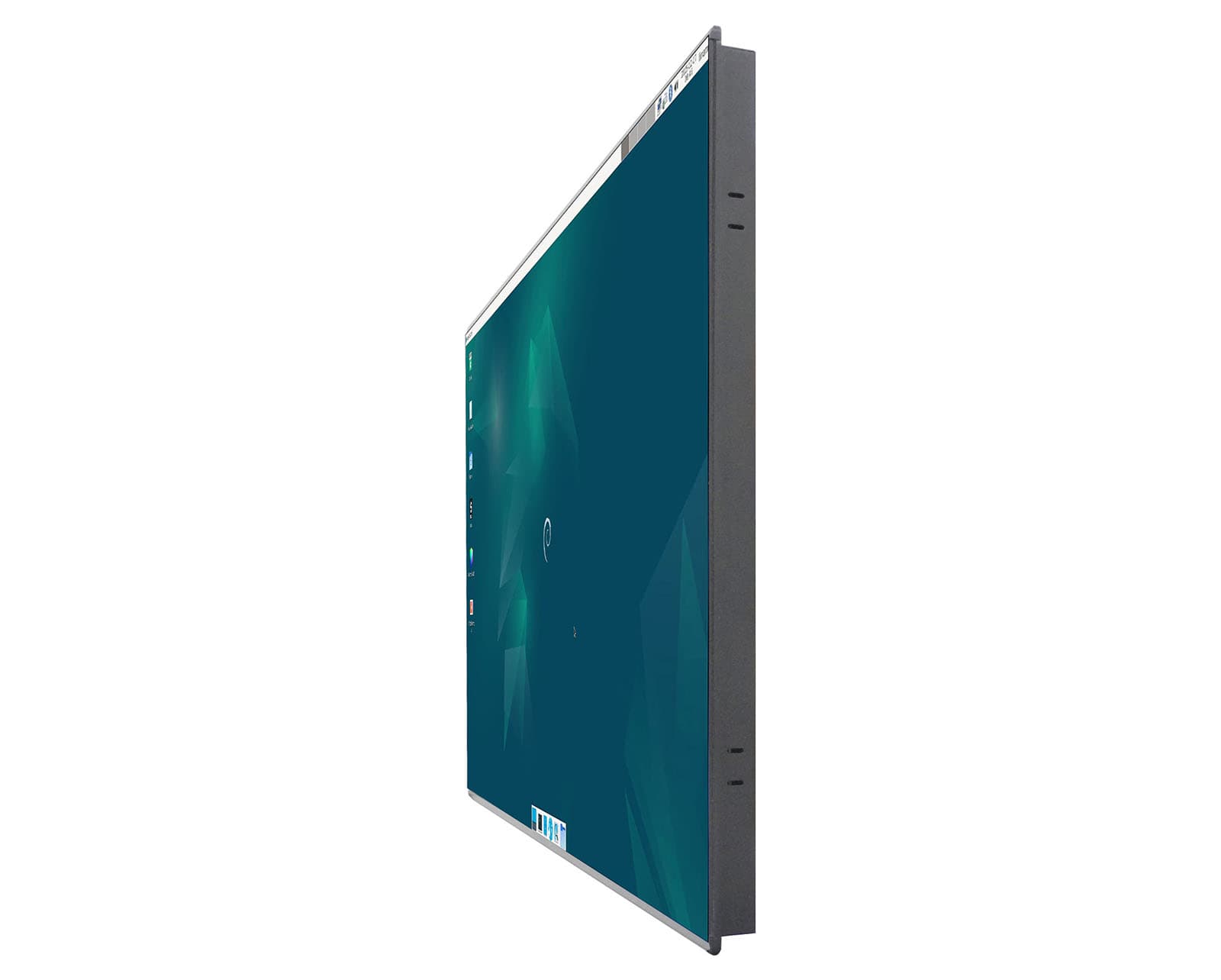

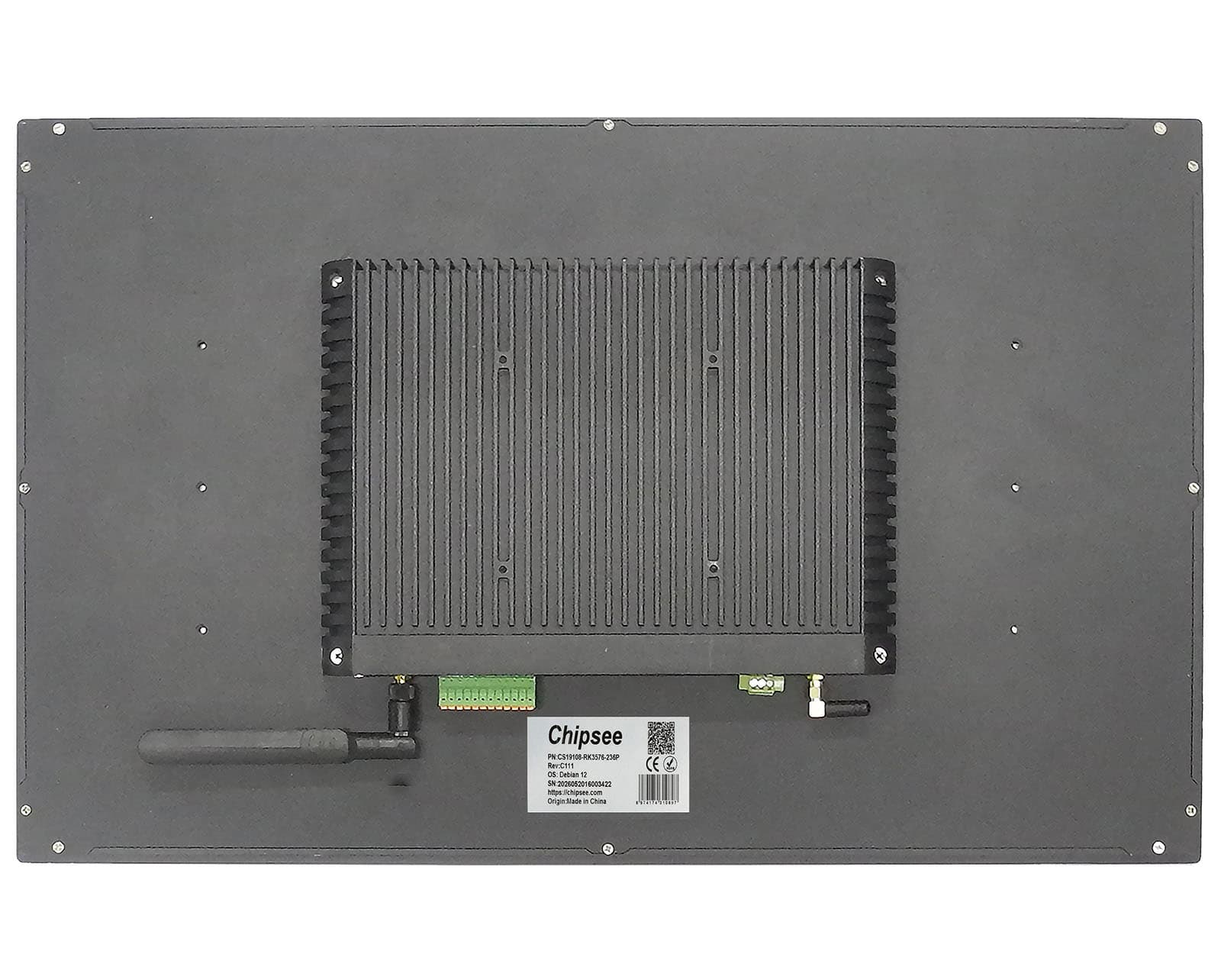

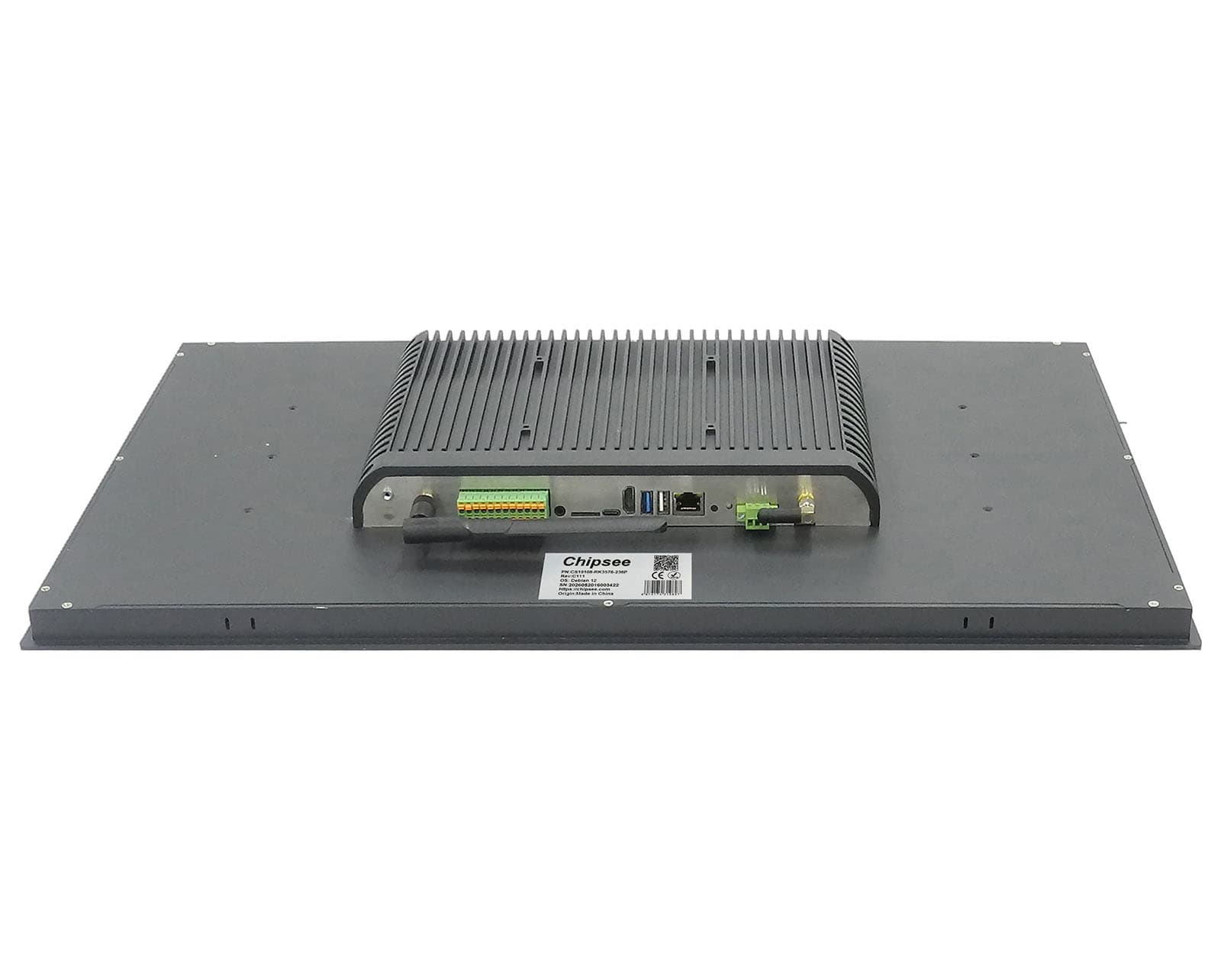

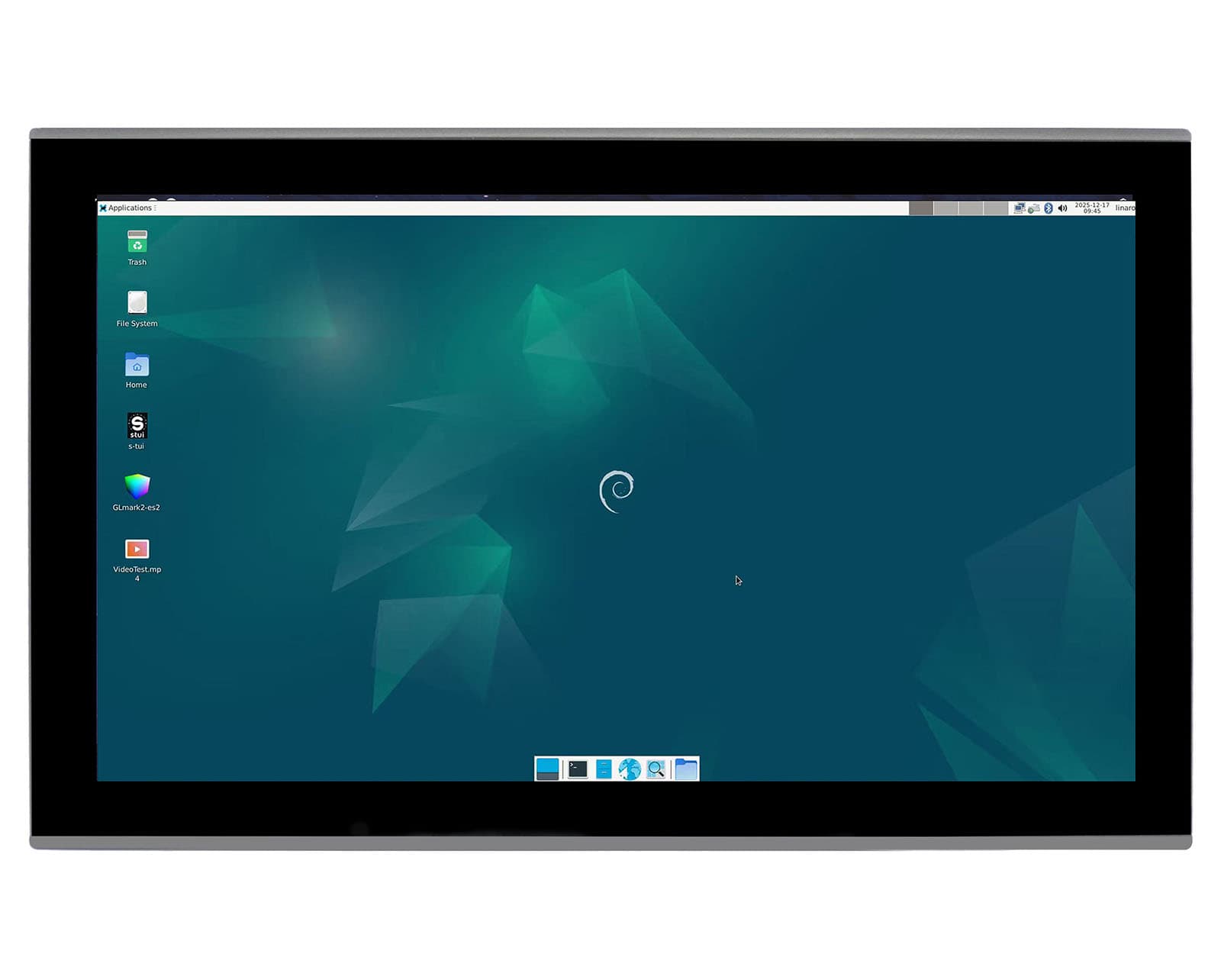

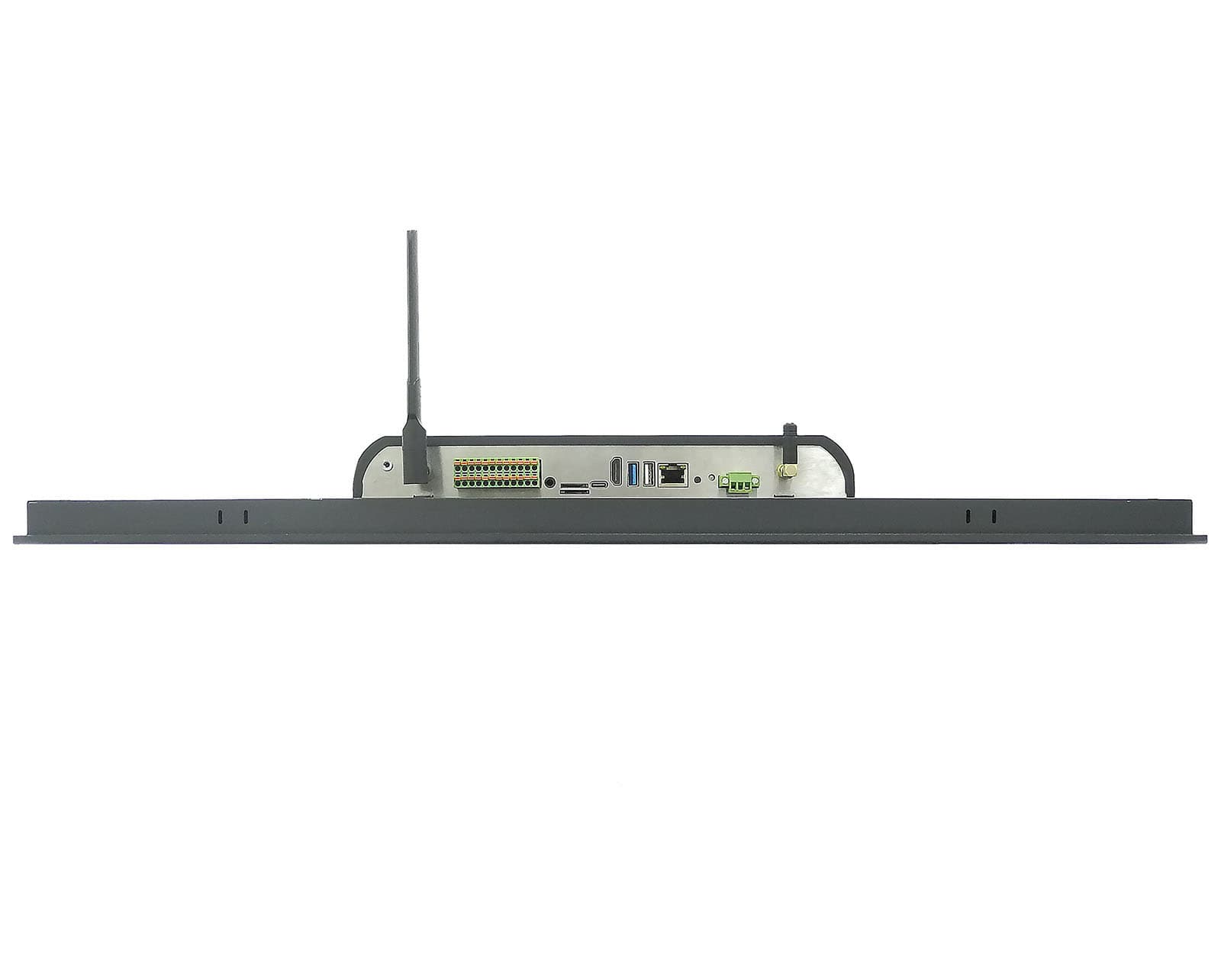

The PPC-RK3576-236 is a high-performance, 23.6-inch industrial panel PC engineered for demanding large-format applications, including human-machine interfaces, process monitoring, video processing, and edge AI workloads. Encased in a rugged, IP65-compliant aluminum housing, this panel PC features a spacious Full HD (1920 x 1080) 10-point capacitive touch display protected by 1mm armored glass to deliver high clarity and durability across industrial cabinets or direct equipment installations. It offers versatile deployment options out of the box, with flexible mounting support for panel and VESA configurations, and is backed by official software support for Android 14, Debian 12, and Buildroot Linux Qt 5.15.
Specifications
- SKU
- CS19108-RK3576-236P
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- PCIe
- Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module
- Display size
- 23.6
- Display resolution
- 1920*1080
- Brightness
- 250 NIT
- Touch Screen
- Capacitive + Armored Glass
- USB
- (USB 3.0 port and USB-C port cannot be used at the same time); 1 x USB 3.0 HOST; 1x USB 2.0 HOST; 1x USB Type-C
- CAN
- 2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional; Power Over Ethernet 802.3af/at
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- 15-30V DC
- Power Consumption
- 18W Typical; 24W Max
- Current at 15V
- 1.2A Typical; 1.6A Max
- Working Temperature
- -20℃ ~ 60℃
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
