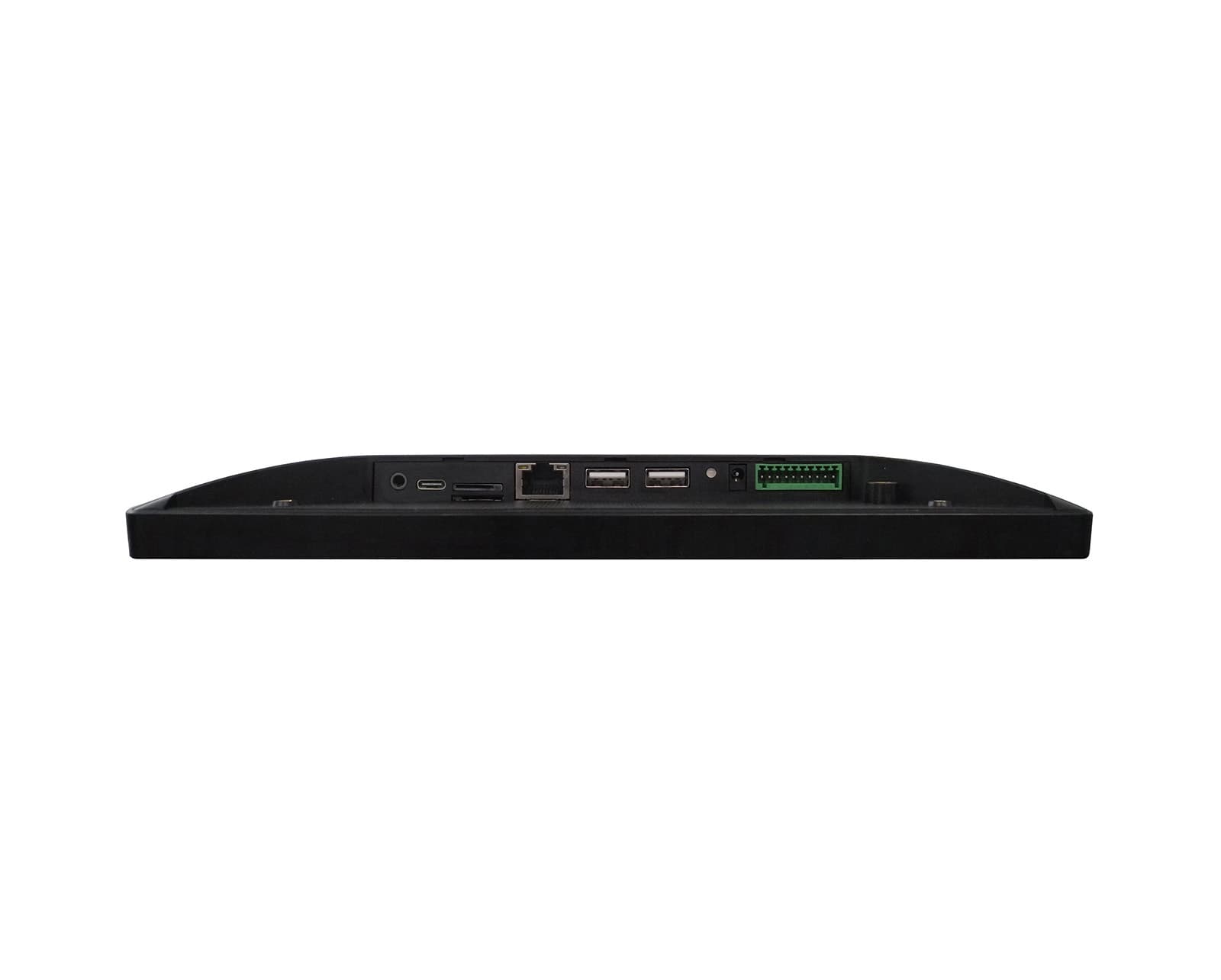

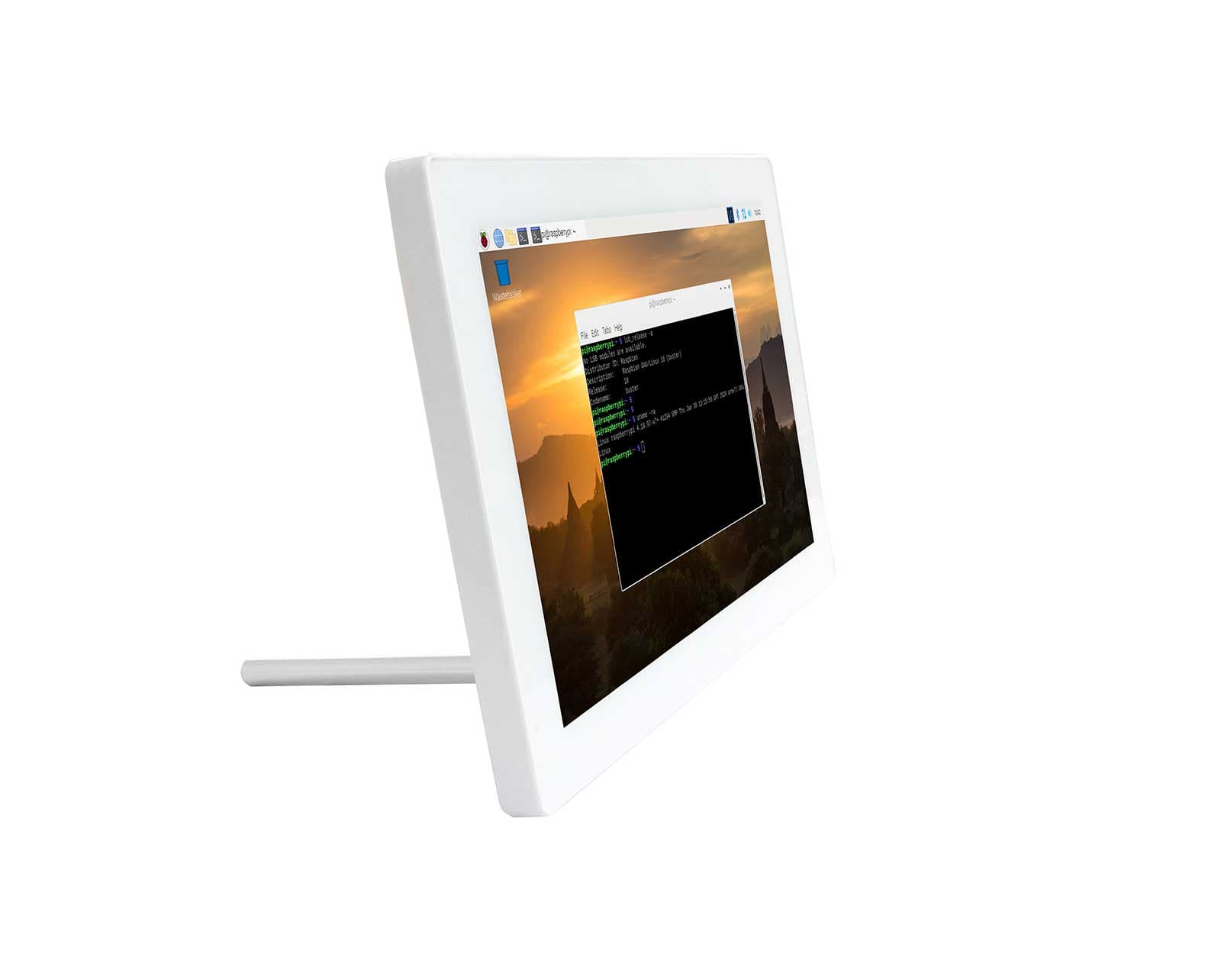

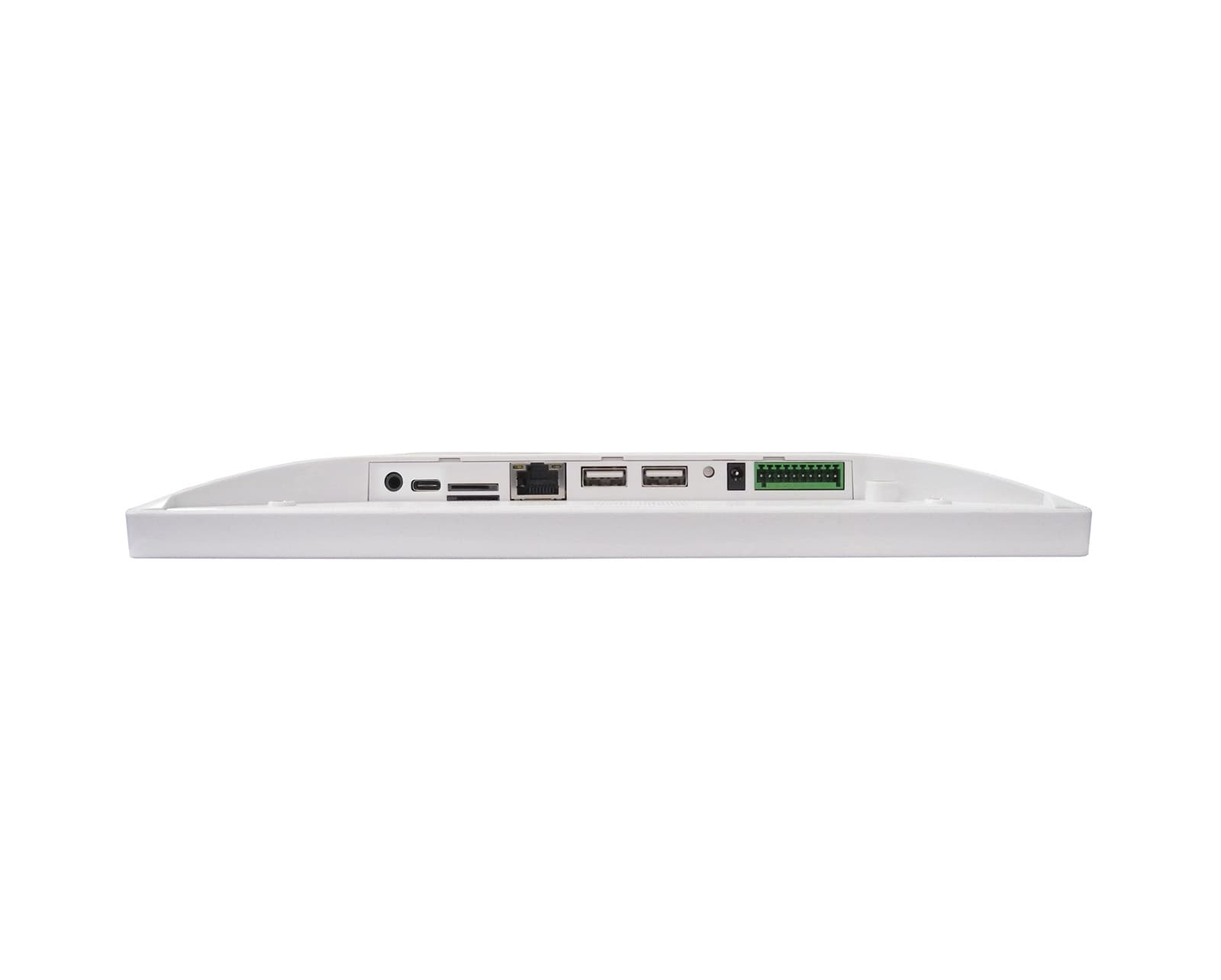

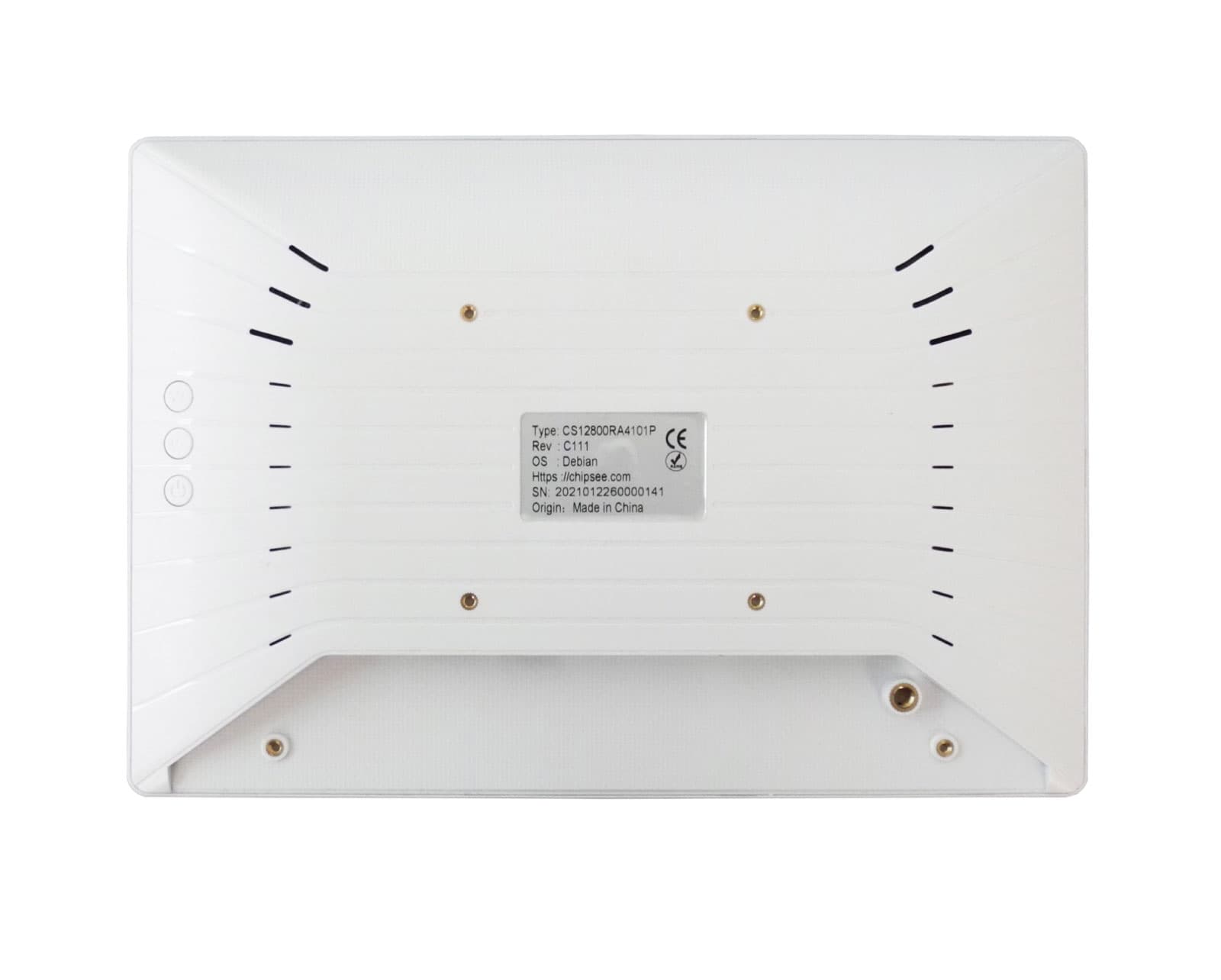

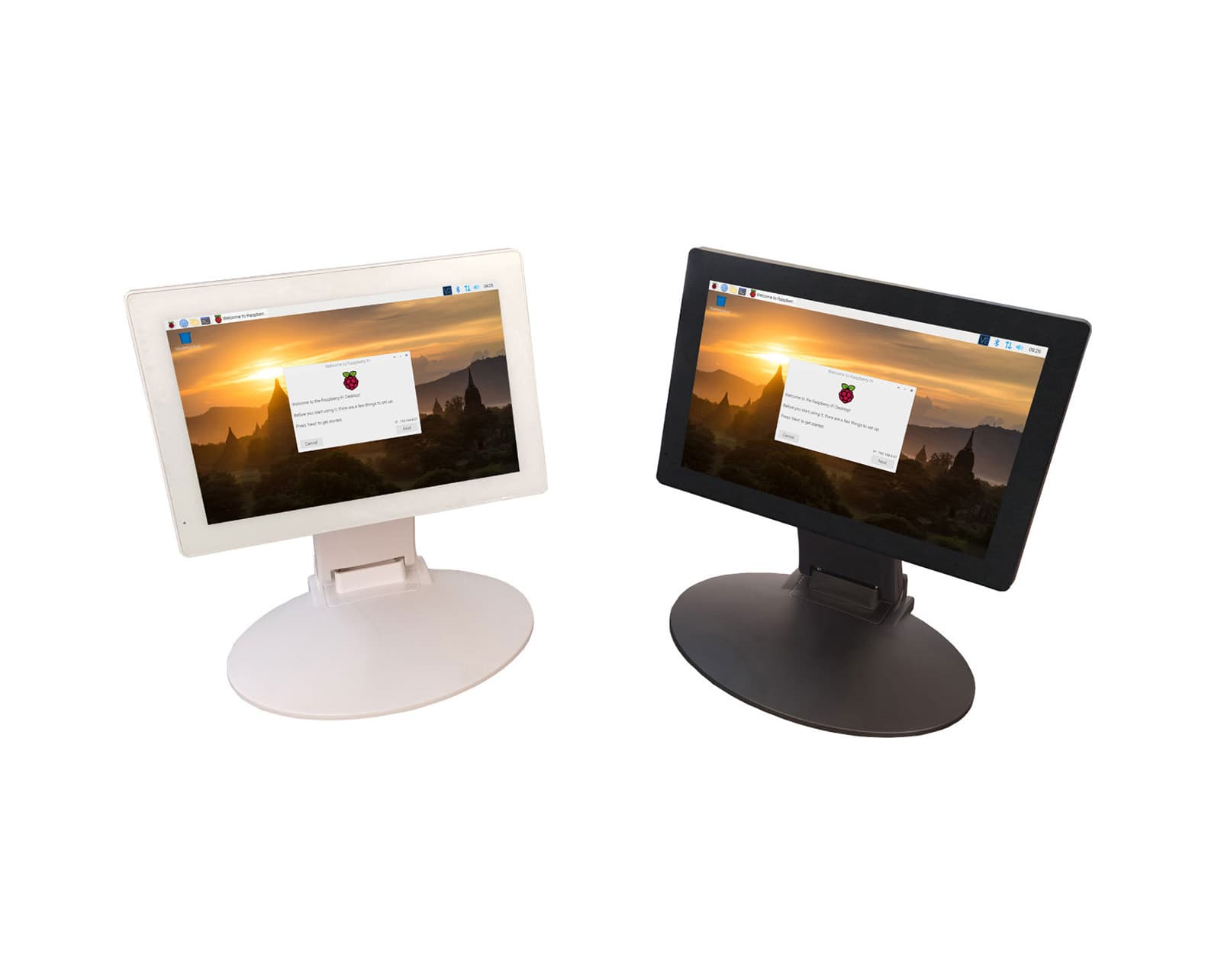

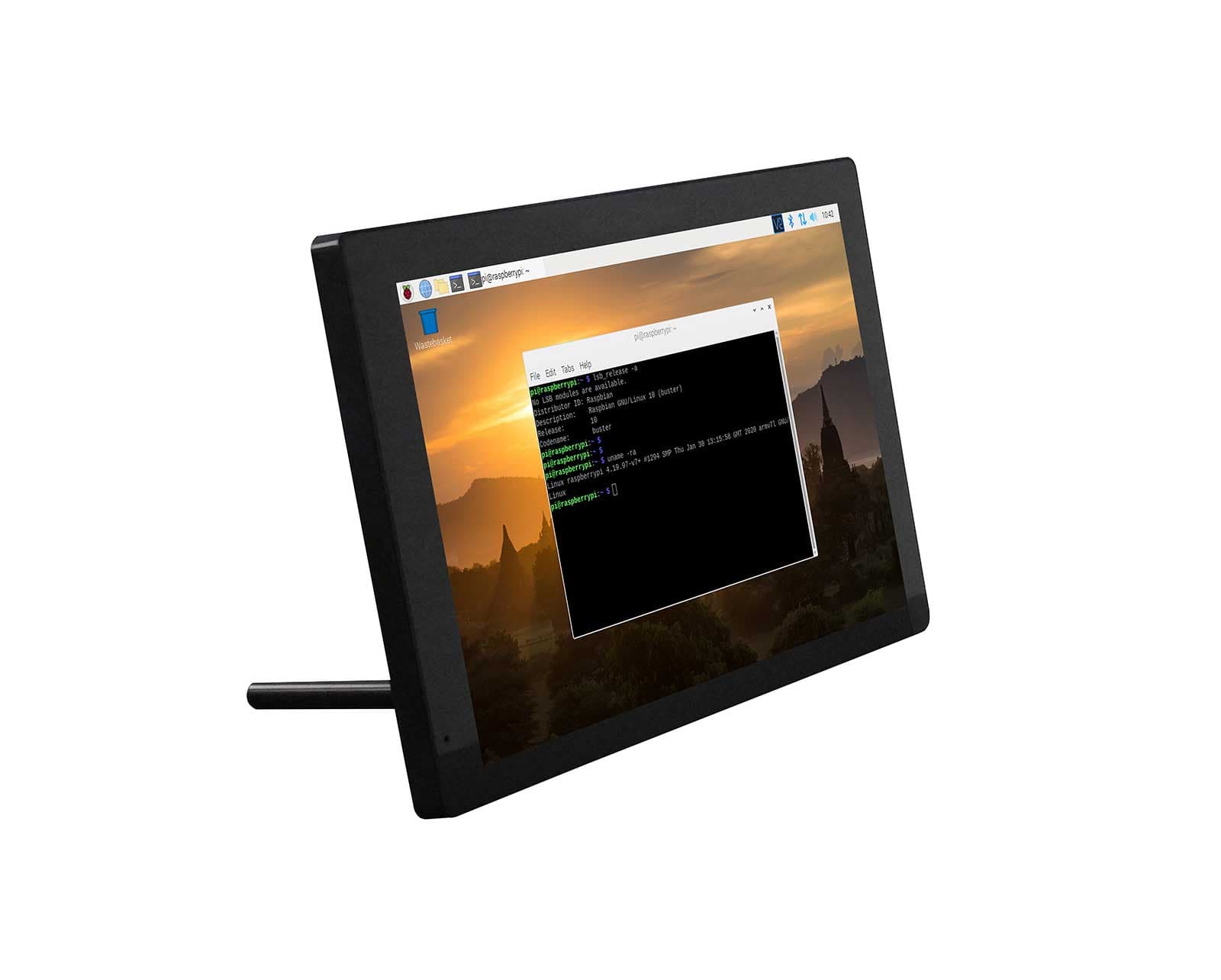

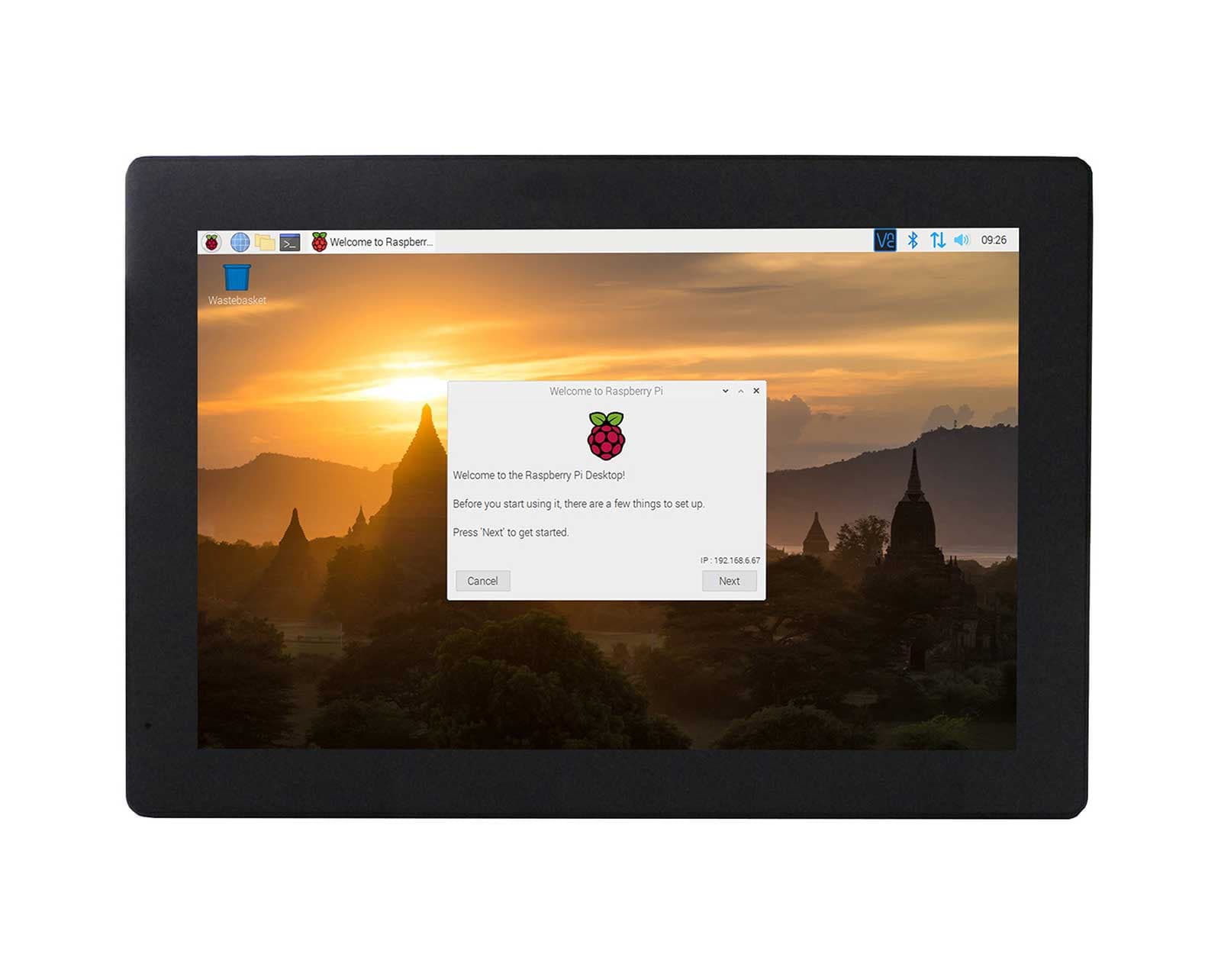

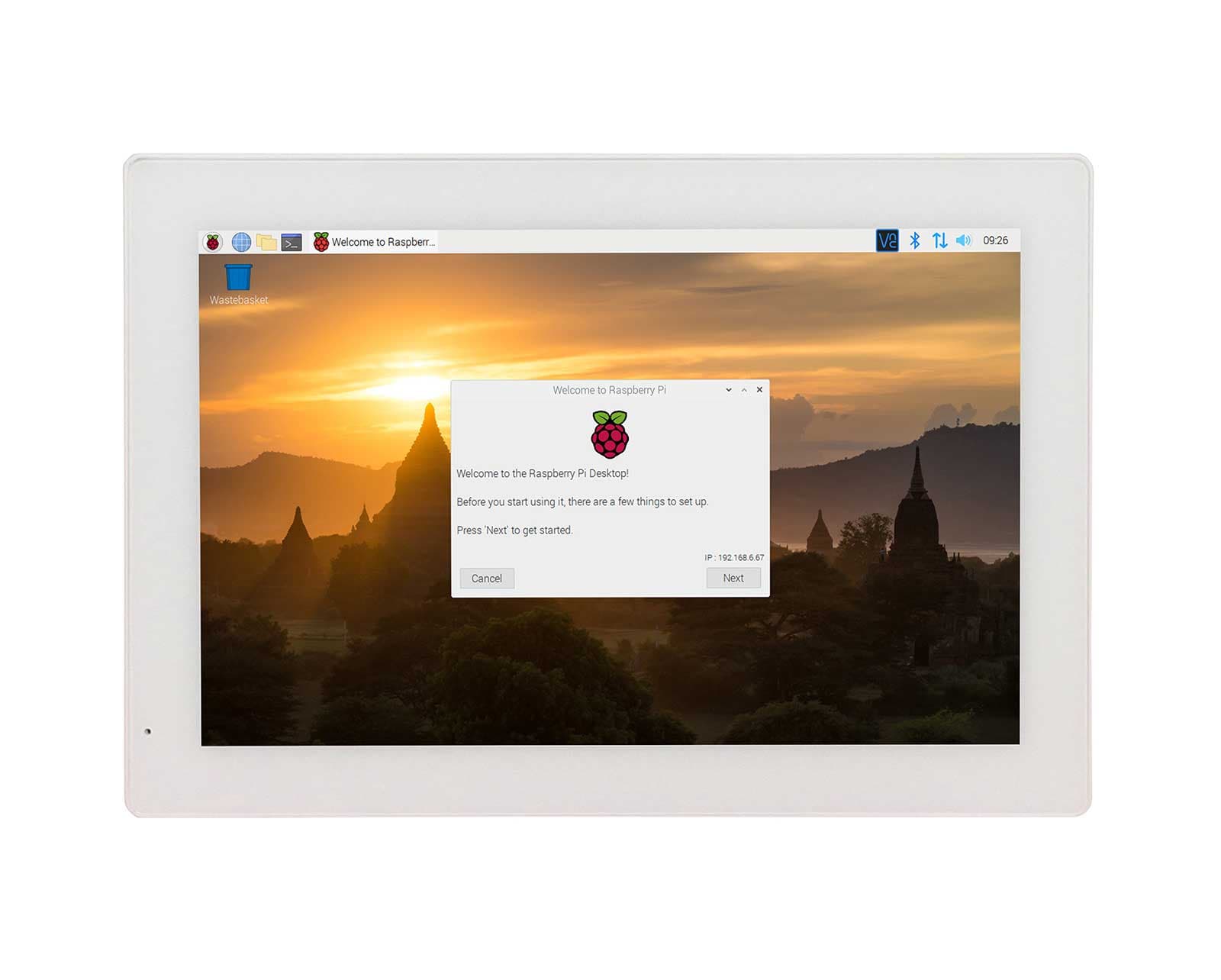

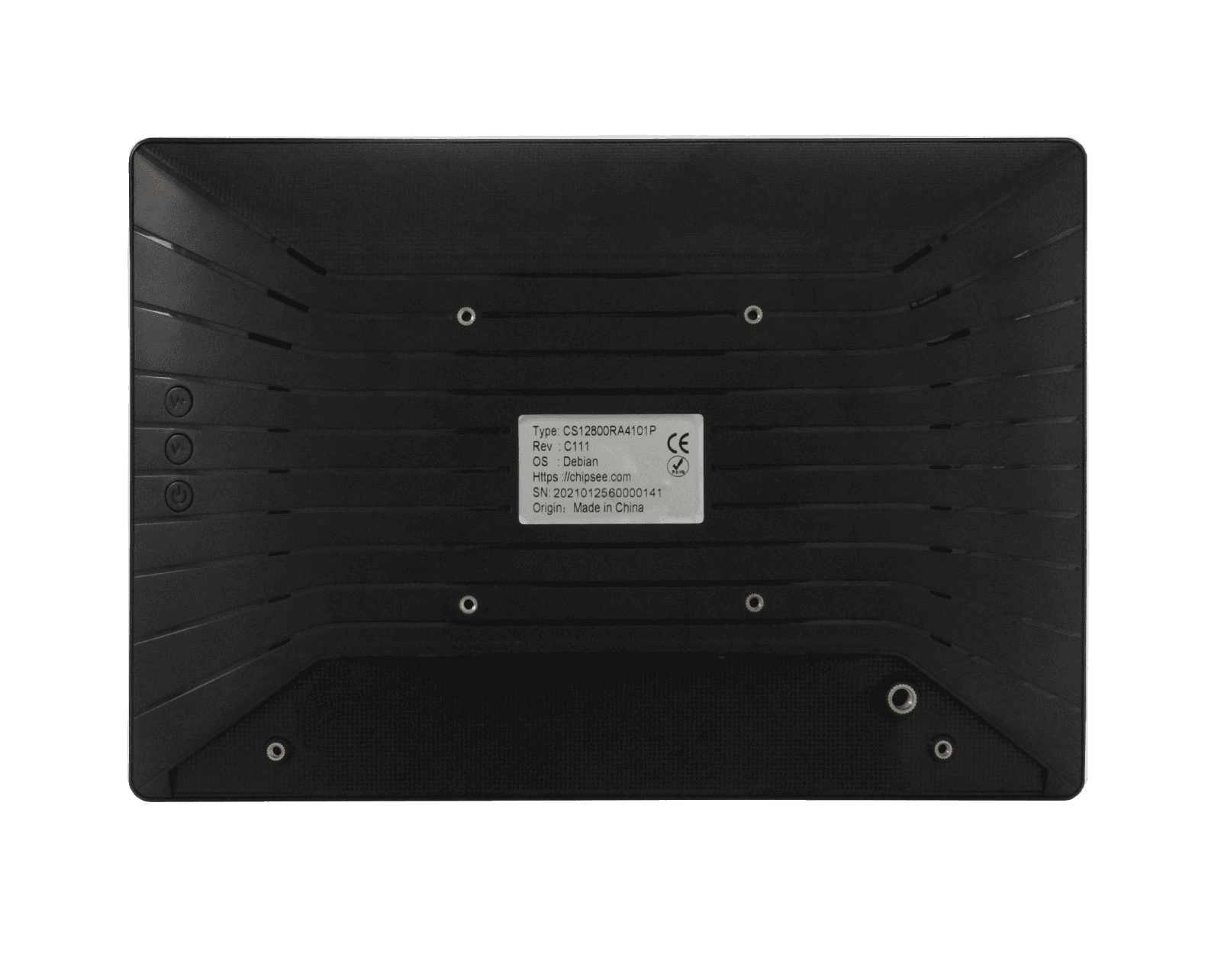

10.1" Панелни компютри и HMI — ARM: Raspberry Pi CM4, 1280 × 800
Спецификации
- SKU
- CS12800RA4101A
- Нетно тегло
- 620 g
- Форм-фактор
- All-In-One
- Процесор
- ARM: Raspberry Pi CM4
- Диагонал на екрана
- 10.1"
- Разделителна способност
- 1280*800
- Яркост
- 350 NIT
- Сензорен екран
- Capacitive
- Външна памет
- 1 TF card slot designed for storage expansion
- Wi-Fi / Bluetooth
- Depends on the CM4 selected.
- Zigbee
- Internal Zigbee supported, NOT mounted by default
- 4G / LTE
- Internal 4G/LTE module supported, NOT mounted by default
- USB
- 1x miniUSB OTG; 2x USB 2.0 HOST
- RS232
- 2 x RS232
- RS485
- 1 Channel by default, 2 Channels at most. The RS485 circuit automatically controls the Input and Output direction (no need for software control)
- GPIO / Wiegand
- Two 5V Logic GPIO Outputs, can be used as Wiegand signal
- Ethernet
- 1x RJ45, 1 Gbps
- Аудио
- Mic input on the front panel, 2W internal stereo speaker, 3.5mm audio In/Out connector
- Зумер
- Onboard, driven by GPIO
- RTC
- High accuracy internal RTC (keep track of time one week after power off)
- Операционна система
- Raspberry Pi OS; Ubuntu
- Входно захранване
- 15~36V DC
- Ток
- 400mA typical, 530mA max (15V)
- Консумация
- 6W typical; 7.95W max
- Работна температура
- 0℃~50℃
- Цвят на пластмасовия корпус
- Black, White
- Сертифициране
- CE; ROHS
- Цвят на корпуса
- White; Black
- Модул Raspberry Pi CM4
- CM4002000 ($57): 2GB DDR, no WiFi, or eMMC; CM4002016 ($79): No WiFi/BT+2GB DDR+16GB eMMC; CM4002032 ($100): No WiFi/BT+2GB DDR+32GB eMMC; CM4102016 ($100): WiFi+2GB DDR+16GB eMMC; CM4102032 ($105): WIFI+2GB DDR+32GB eMMC; CM4104016 ($137): WIFI+4GB DDR+16GB eMMC; CM4104032 ($142): WIFI+4GB DDR+32GB eMMC; CM4108032 ($216): WIFI+8GB DDR+32GB eMMC
