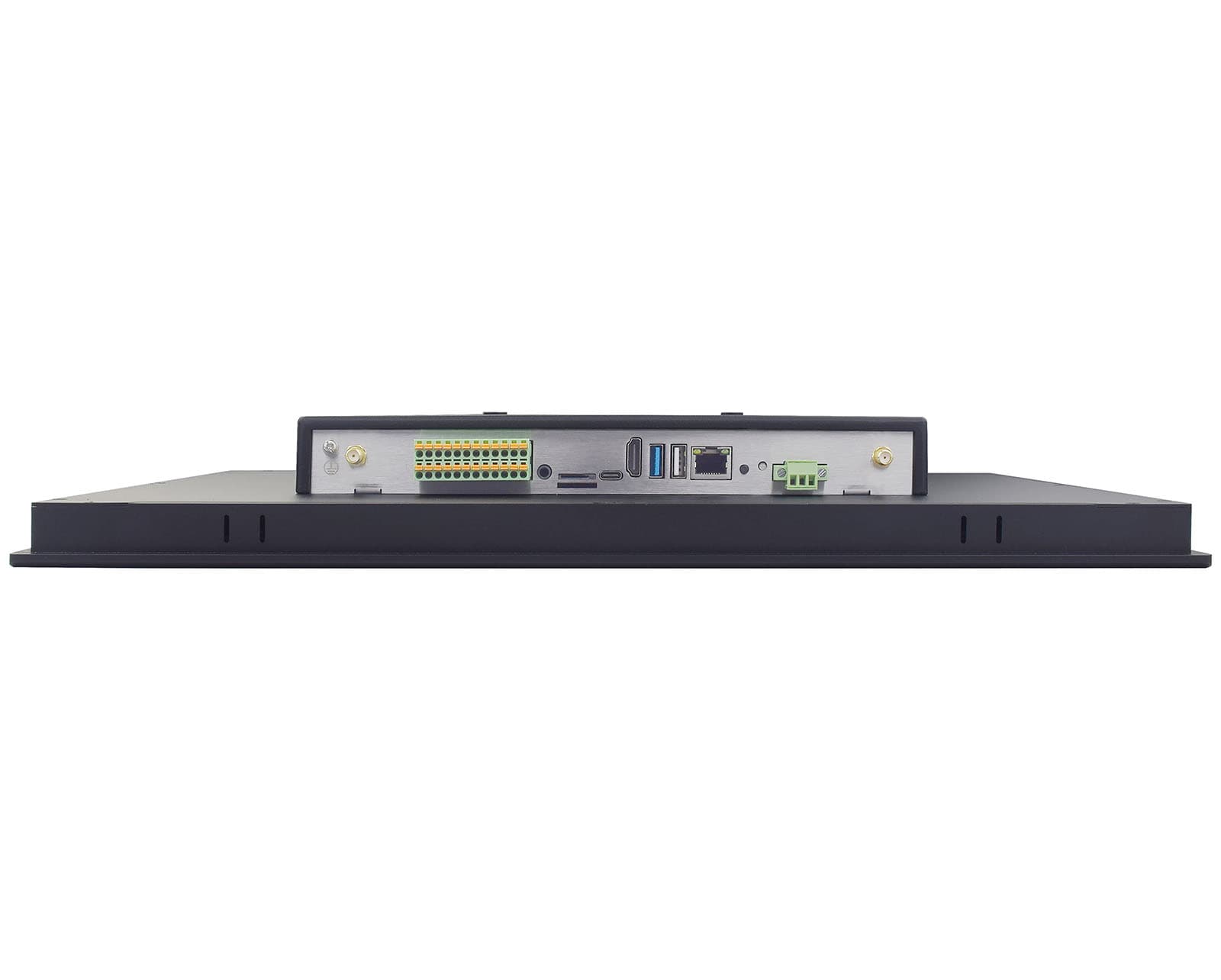

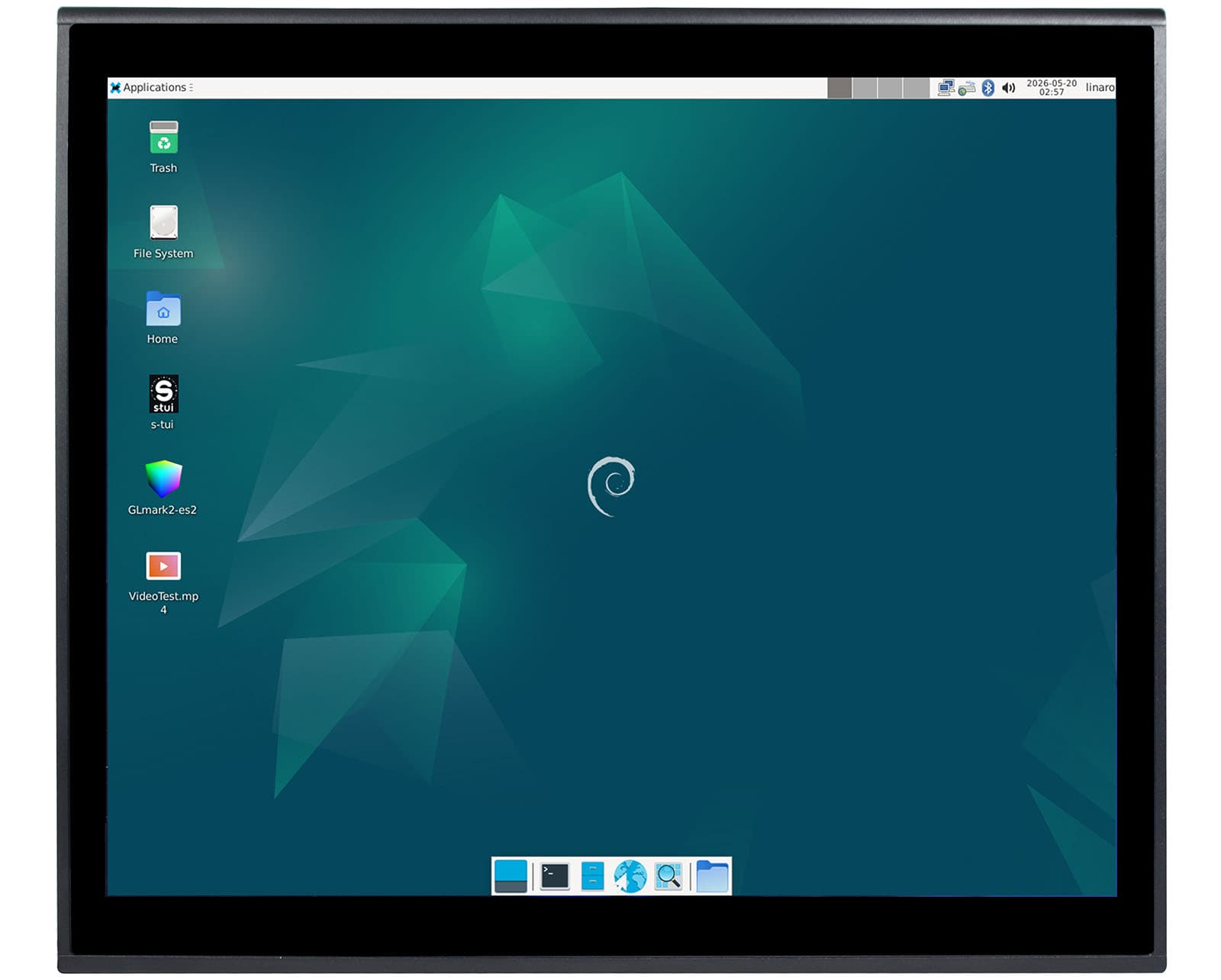

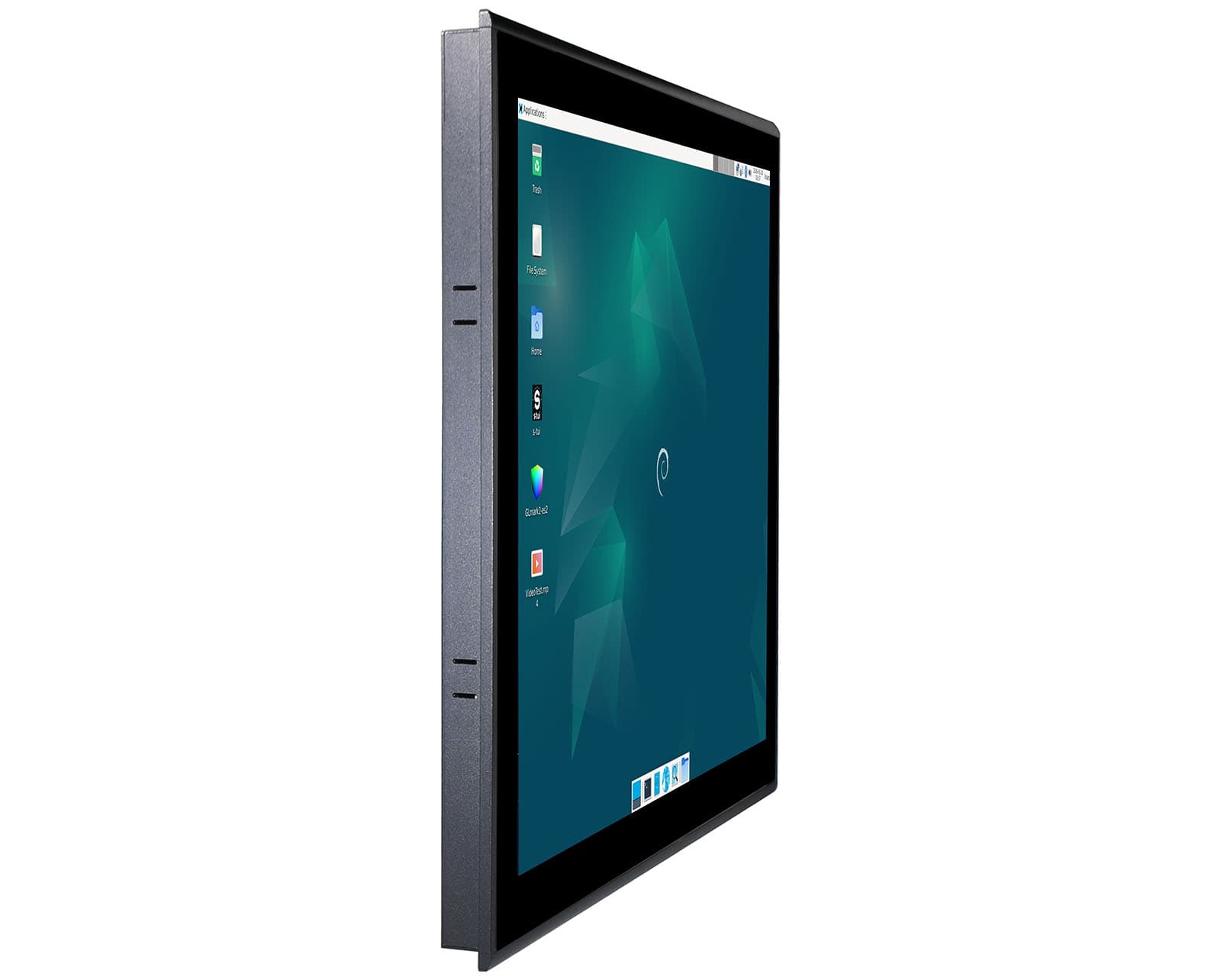

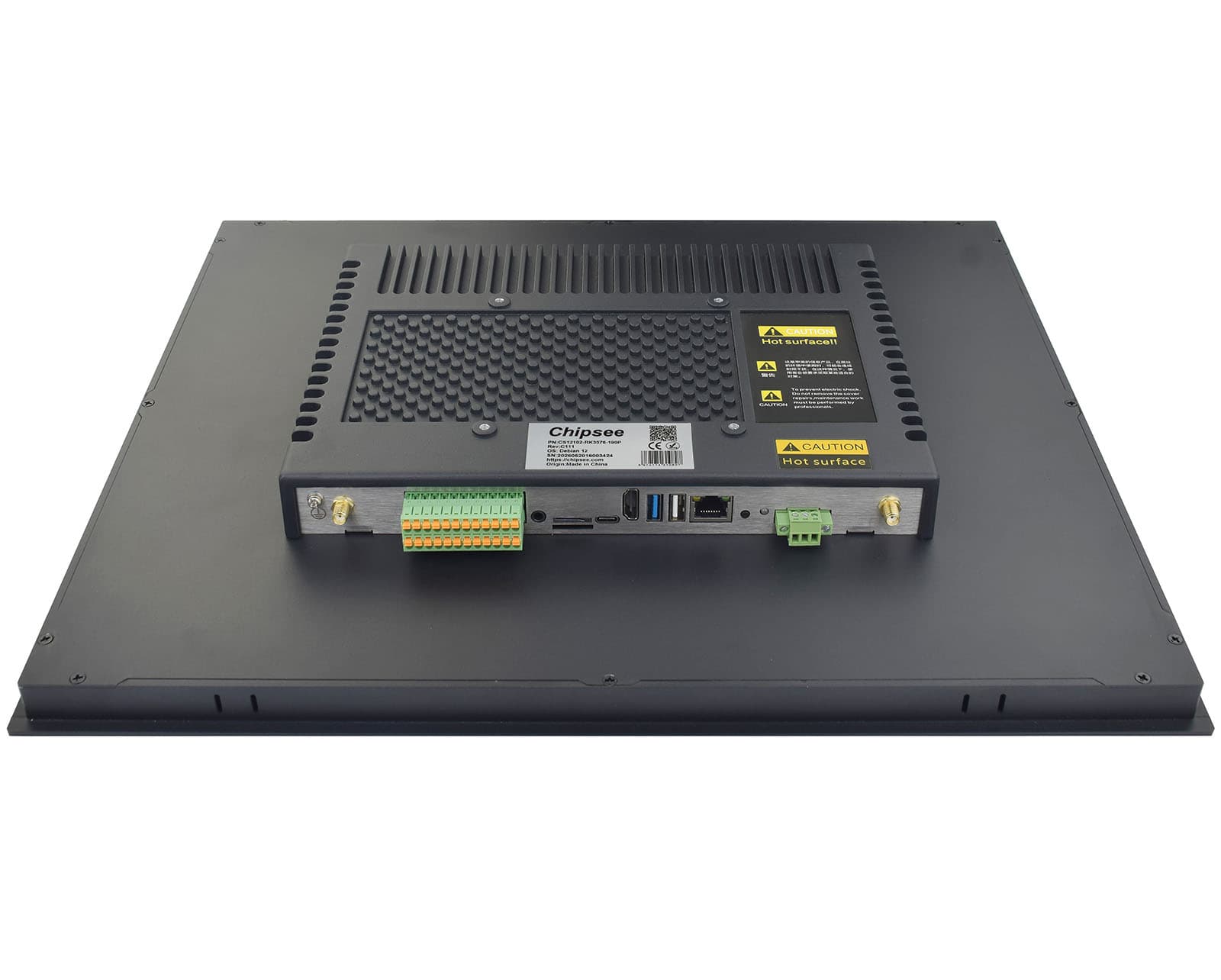

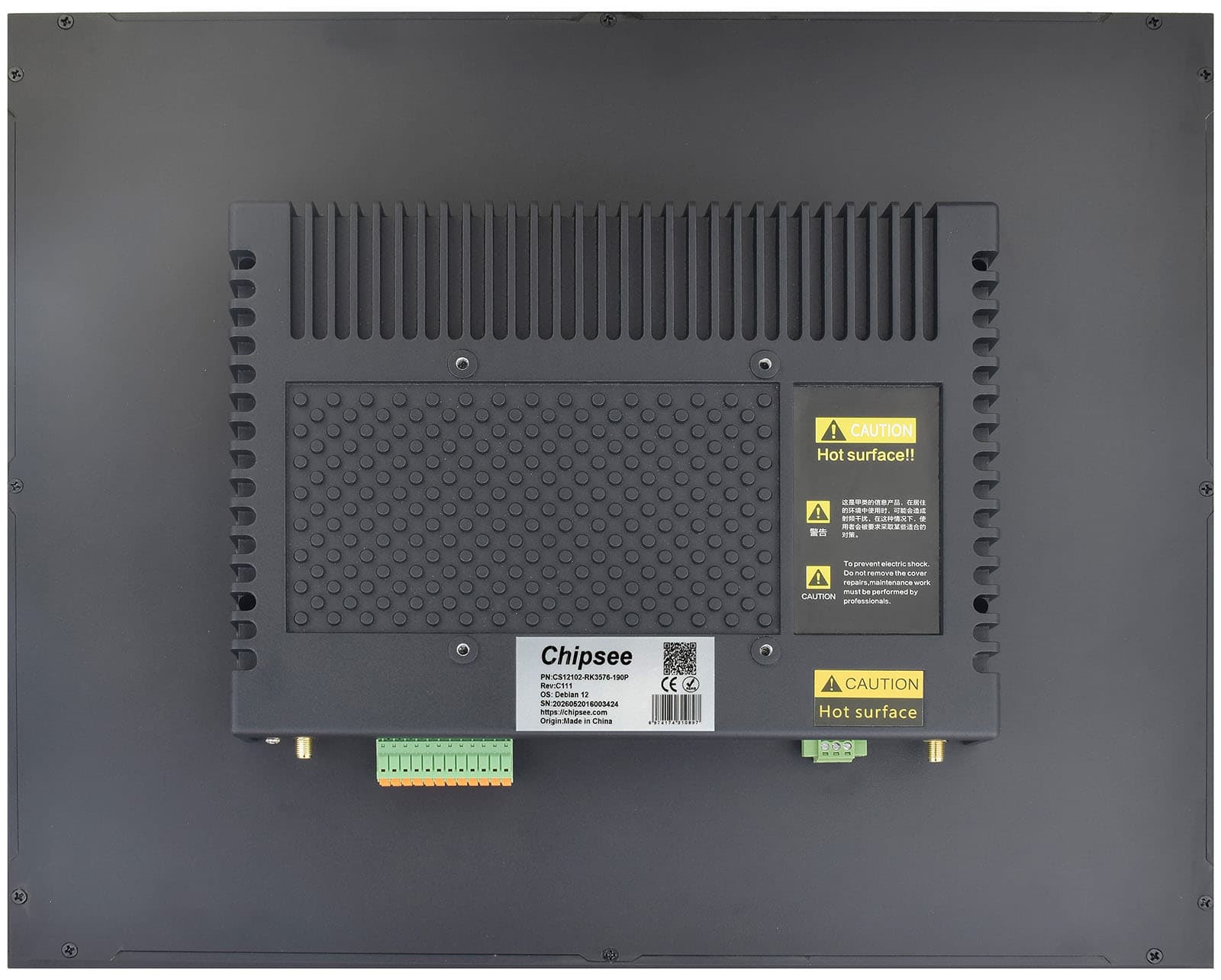

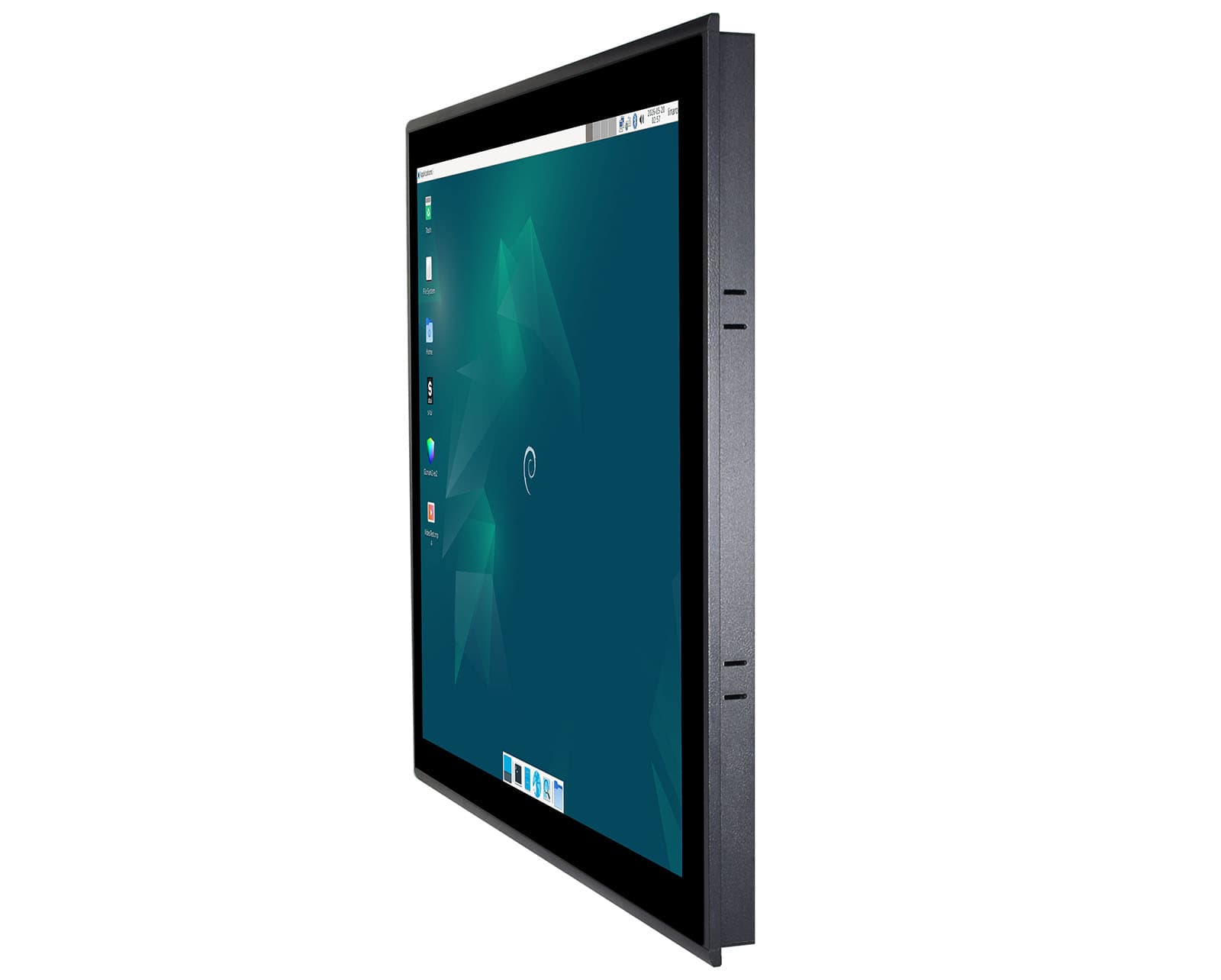

PPC-RK3576-190

Спецификации

SKU

CS12102-RK3576-190P

Нетно тегло

5400 g

Форм-фактор

Panel

Процесор

ARM: Rockchip RK3576

Тактова честота на процесора

Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)

NPU ускорител

6 TOPS(Sparsity)@INT8

Графичен процесор

ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding

Вградена памет (eMMC)

64GB

Постоянна памет

TF Card, Supports up to 128GB SDHC

PCIe

Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module

Диагонал на екрана

19.0″

Разделителна способност

1280*1024

Яркост

370 NIT

Сензорен екран

Capacitive

USB

(USB 3.0 port and USB-C port cannot be used at the same time); 1 x USB Type-C; 1x USB 2.0 HOST; 2 x USB 3.0 HOST

CAN

1 x CAN FD by default.; Optionally, these 2 x CAN FD can be configured to RS232.

HDMI

1 x HDMI OUT

GPIO

8 Channels, 4 Input, 4 Output

RS232

2 x RS232 by default (including 1 debug port). Up to 6 x RS232.

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

Ethernet

1 x RJ45, GbE

Wi-Fi / Bluetooth

YES

4G

Optional

PoE

Optional; Power Over Ethernet 802.3af/at

Аудио

3.5mm Audio In/Out Connector

Зумер

YES

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

(supports optional 24V ignition signal); 15-30V DC

Консумация

17W Typical; 22W Max

Ток при 15 V

1.13A Typical; 1.46A Max

Работна температура

0℃~50℃

Операционна система

Android; Buildroot; Debian; Ubuntu

Начин на монтаж

VESA, PANEL
