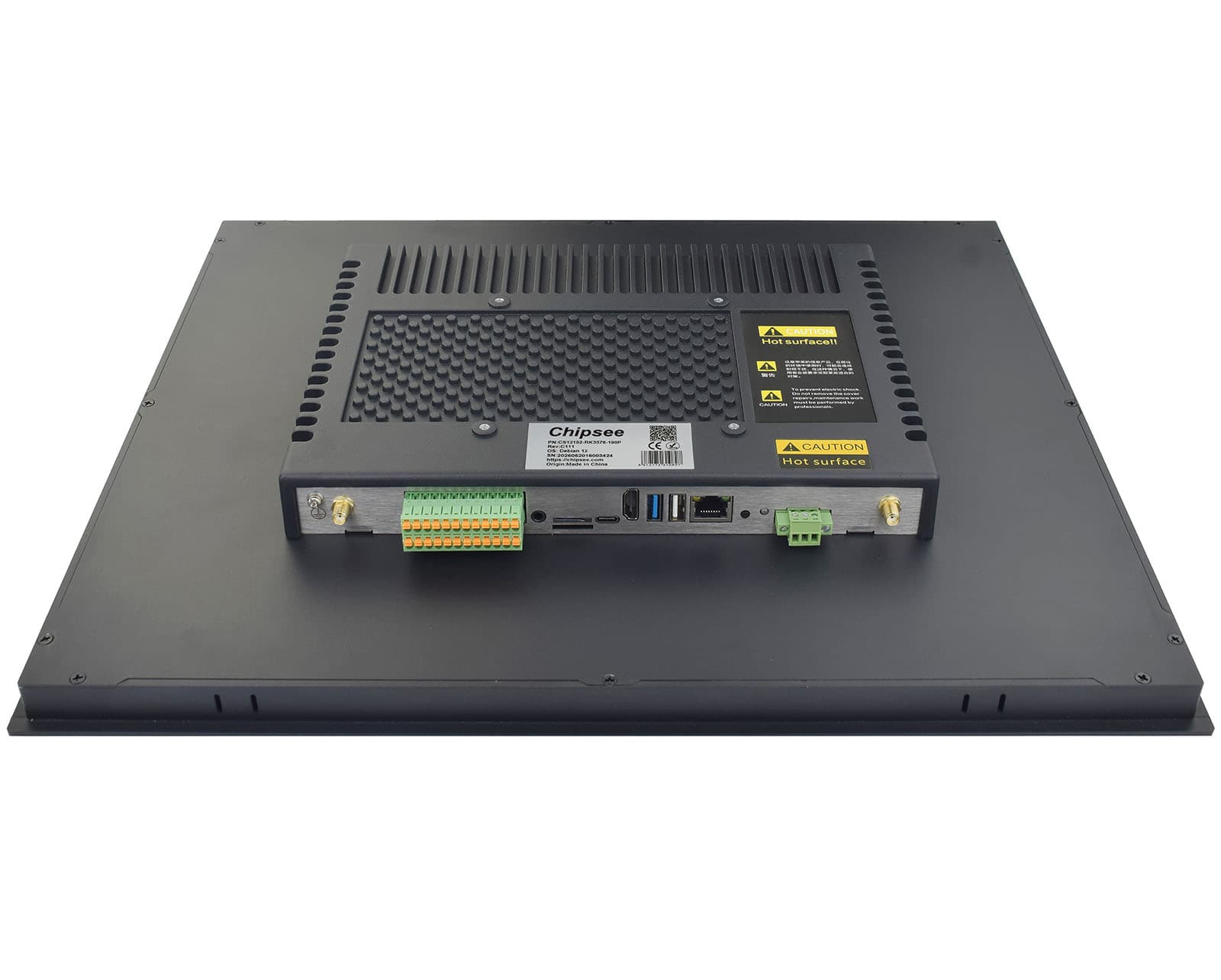

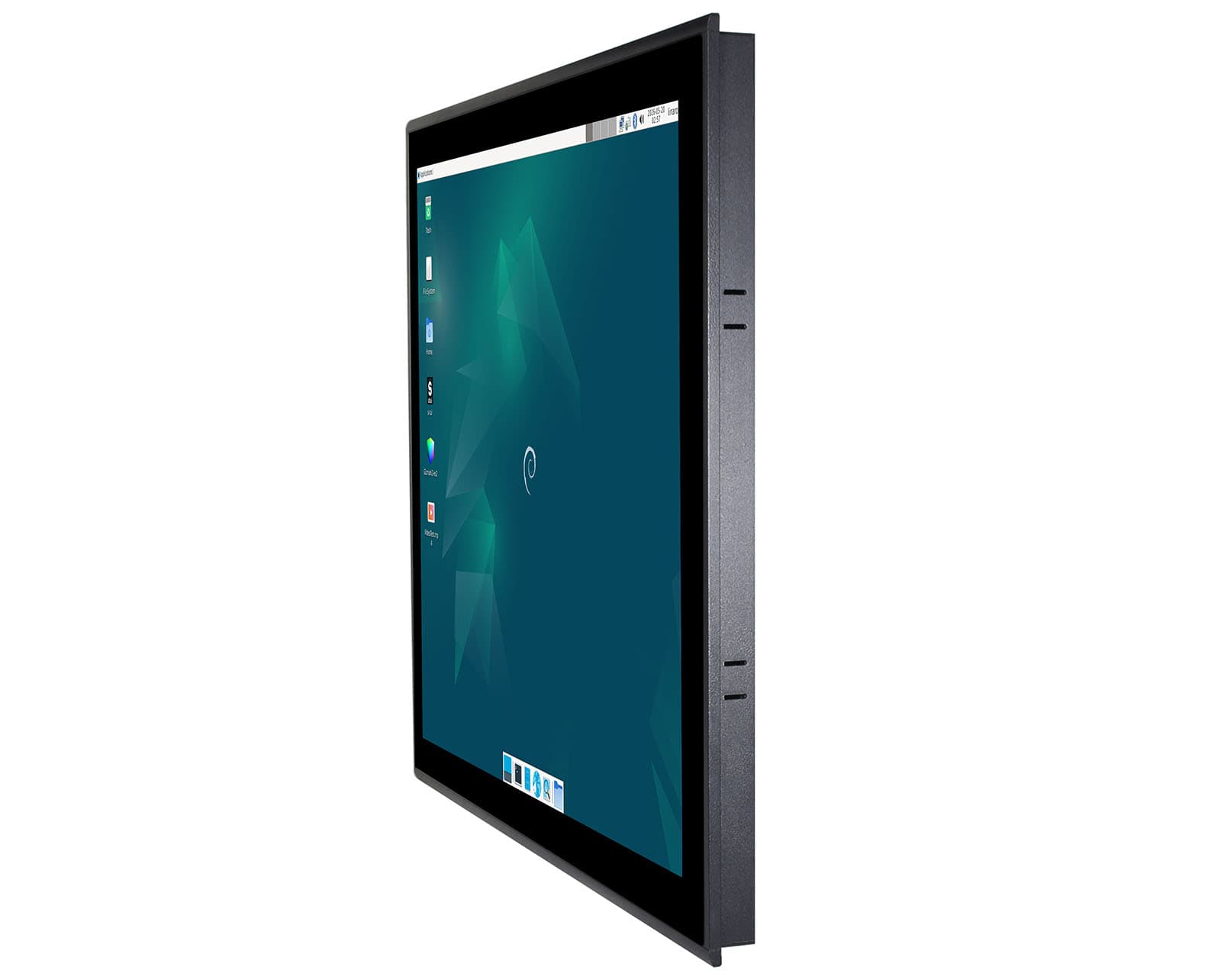

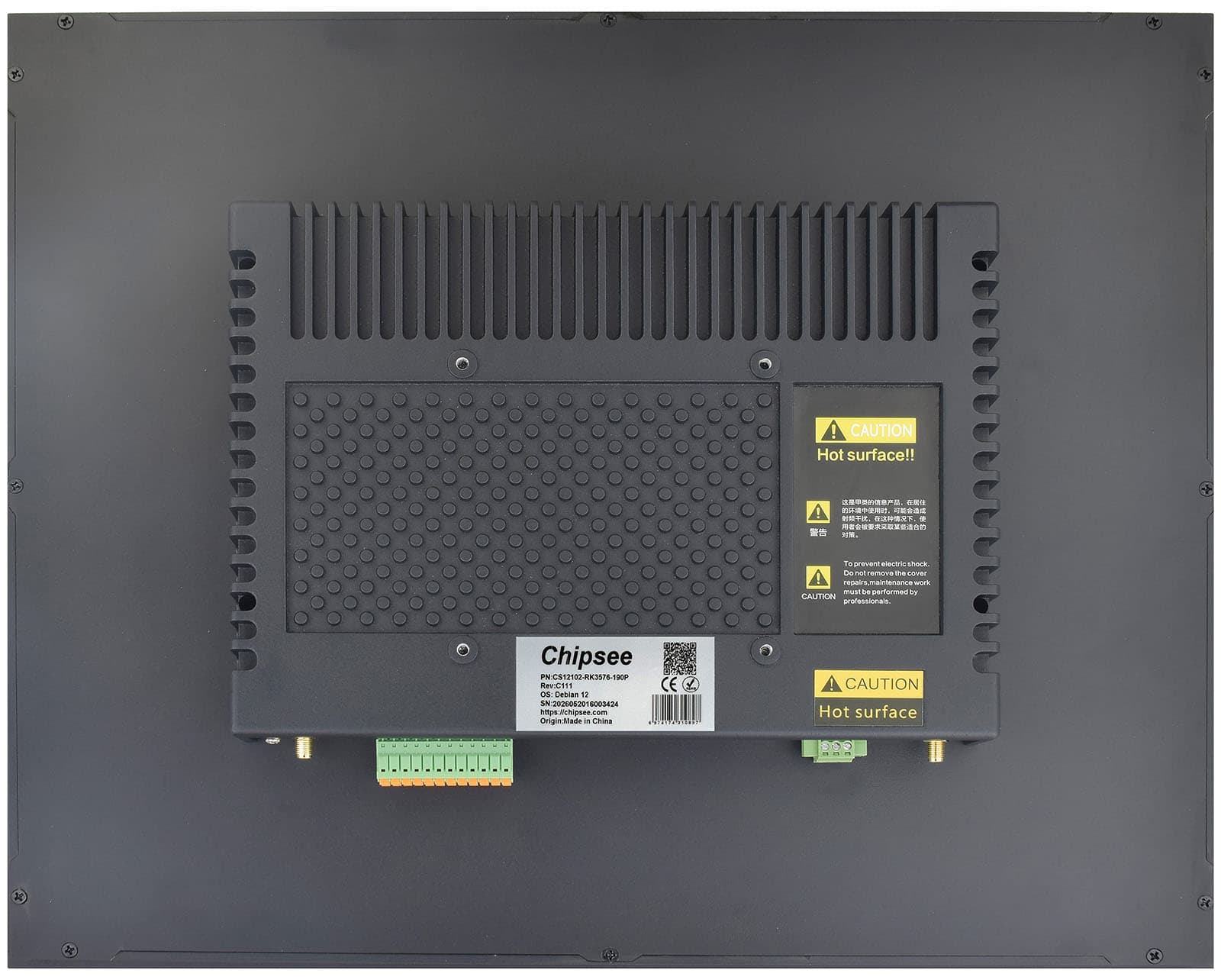

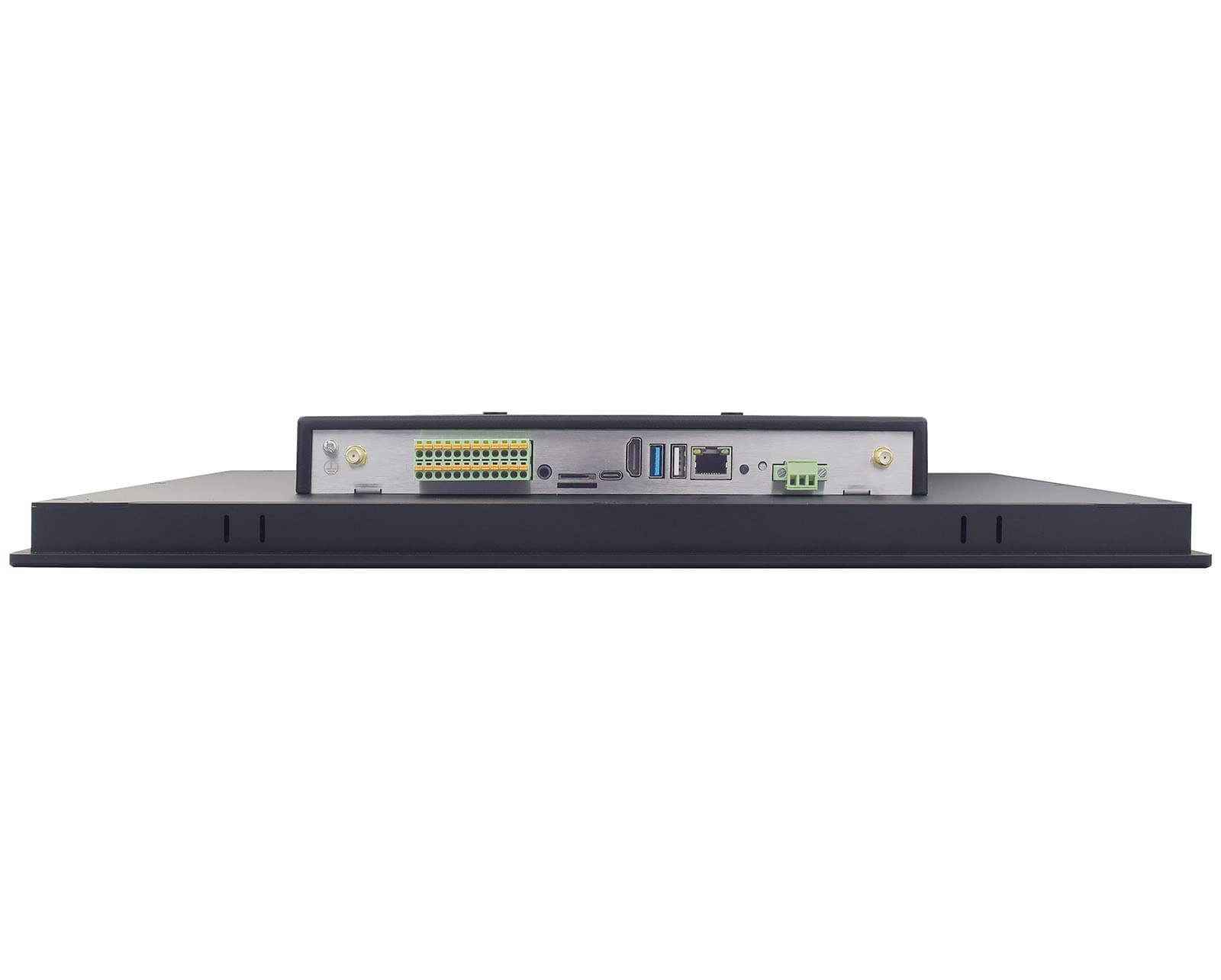

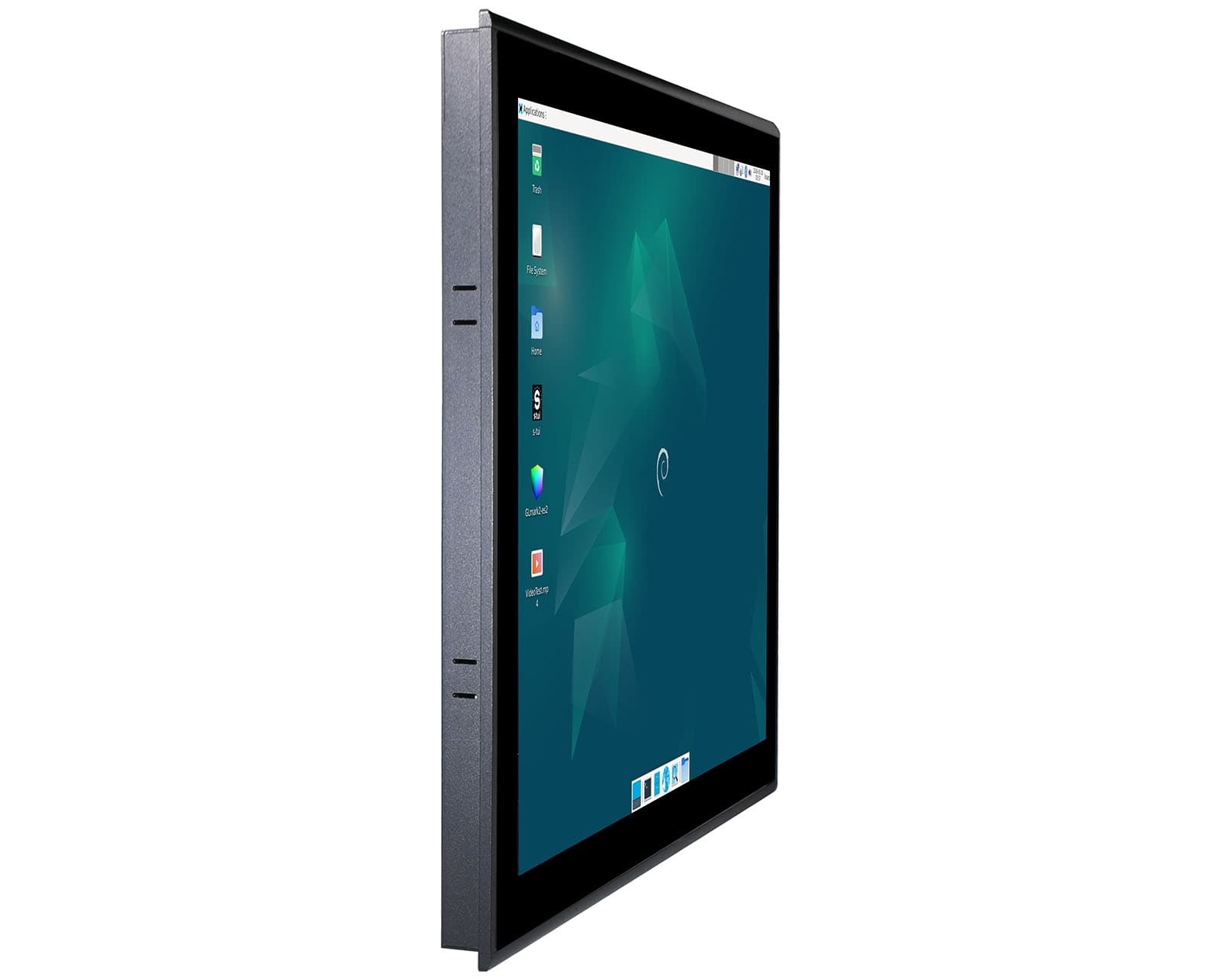

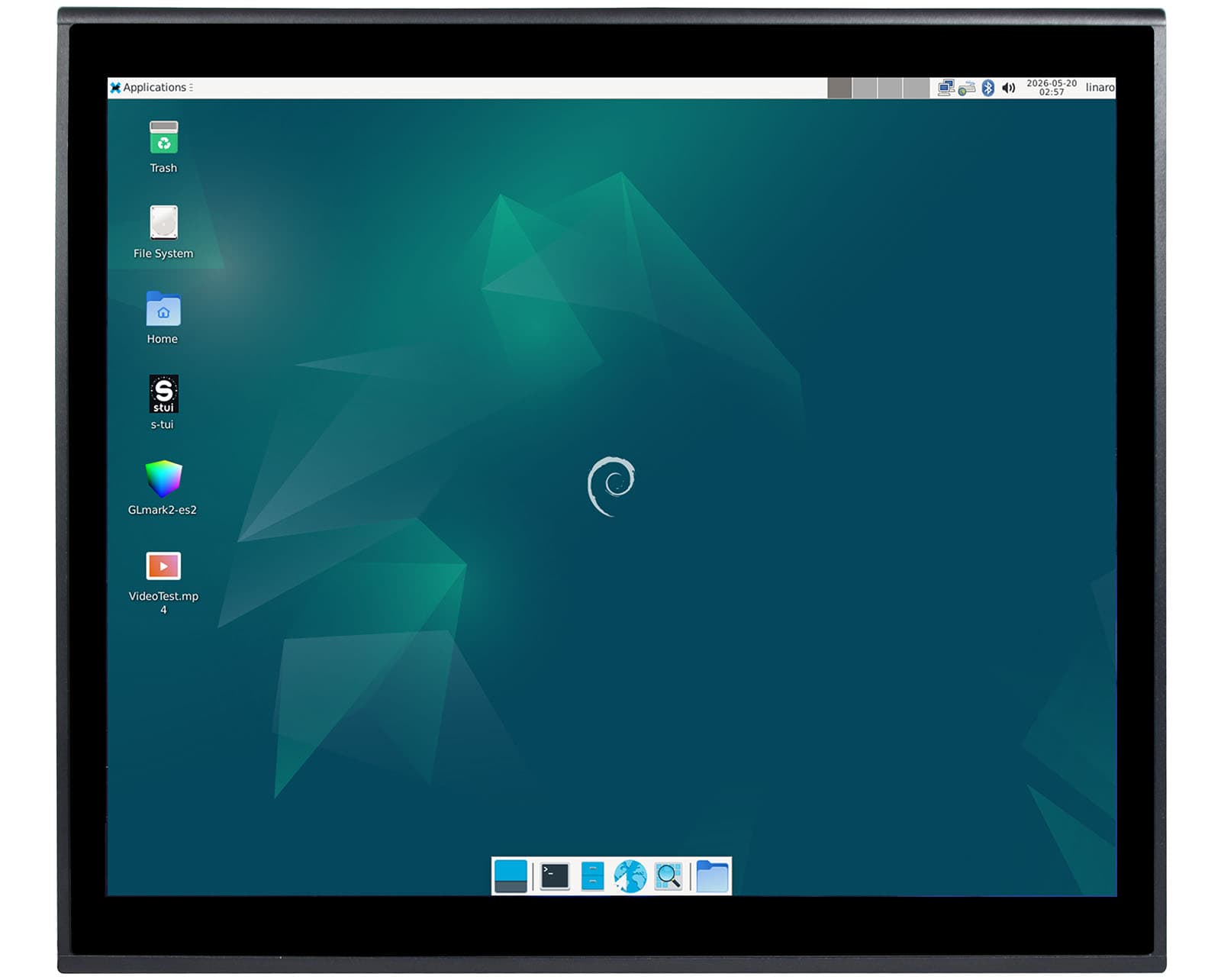

The PPC-RK3576-190 is a powerful industrial panel PC designed to support advanced HMI, automation, process control, and edge AI applications. Equipped with a 19.0” IP65-rated capacitive touchscreen display featuring a 1280 × 1024 resolution, it provides reliable operation and clear visibility in demanding industrial environments. Its durable aluminum housing and support for both panel and VESA mounting make it suitable for seamless integration into industrial systems and equipment.
Specifications
- SKU
- CS12102-RK3576-190P
- Net weight
- 5400 g
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- PCIe
- Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module
- Display size
- 19.0″
- Display resolution
- 1280*1024
- Brightness
- 370 NIT
- Touch Screen
- Capacitive
- USB
- (USB 3.0 port and USB-C port cannot be used at the same time); 1 x USB Type-C; 1x USB 2.0 HOST; 2 x USB 3.0 HOST
- CAN
- 1 x CAN FD by default.; Optionally, these 2 x CAN FD can be configured to RS232.
- HDMI
- 1 x HDMI OUT
- GPIO
- 8 Channels, 4 Input, 4 Output
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional; Power Over Ethernet 802.3af/at
- Audio
- 3.5mm Audio In/Out Connector
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 15-30V DC
- Power Consumption
- 17W Typical; 22W Max
- Current at 15V
- 1.13A Typical; 1.46A Max
- Working Temperature
- 0℃~50℃
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
