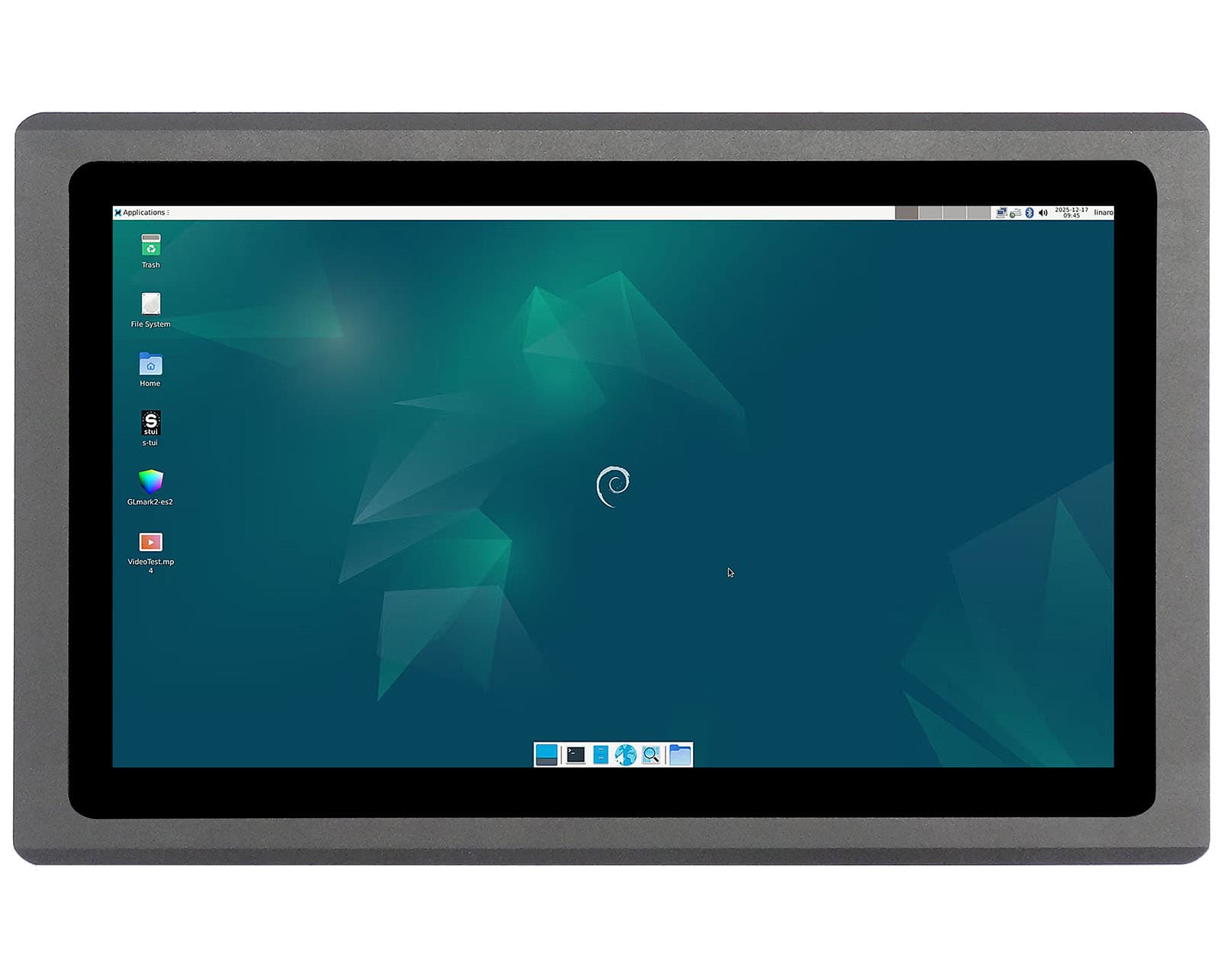

PPC-RK3576-133

Спецификации

SKU

CS19108-RK3576-133P

Нетно тегло

3000 g

Процесор

ARM: Rockchip RK3576

Тактова честота на процесора

Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)

M.2

Optional, supports M.2 M-Key 2230/2242/2260/2280 NVME SSD (PCI-E 3.0 x1)

NPU ускорител

6 TOPS(Sparsity)@INT8

Графичен процесор

ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding

Оперативна памет

4GB LPDDR5

Вградена памет (eMMC)

64GB

Постоянна памет

TF Card, Supports up to 128GB SDHC

Диагонал на екрана

13.3″

Разделителна способност

1920*1080

Яркост

360 NIT

Сензорен екран

Capacitive

USB

1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST

CAN

2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.

GPIO

8 Channels, 4 Input, 4 Output

HDMI

1 x HDMI OUT

RS232

2 x RS232 by default (including 1 debug port). Up to 6 x RS232.

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

Ethernet

1 x RJ45, GbE

Wi-Fi / Bluetooth

YES

4G

Optional

PoE

Optional

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

YES

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

15-30V DC

Консумация

10.5W typical

Работна температура

0°C to +80°C

Ток при 15 V

1.2A Max

Операционна система

Android; Buildroot; Debian; Ubuntu

Начин на монтаж

VESA, PANEL
