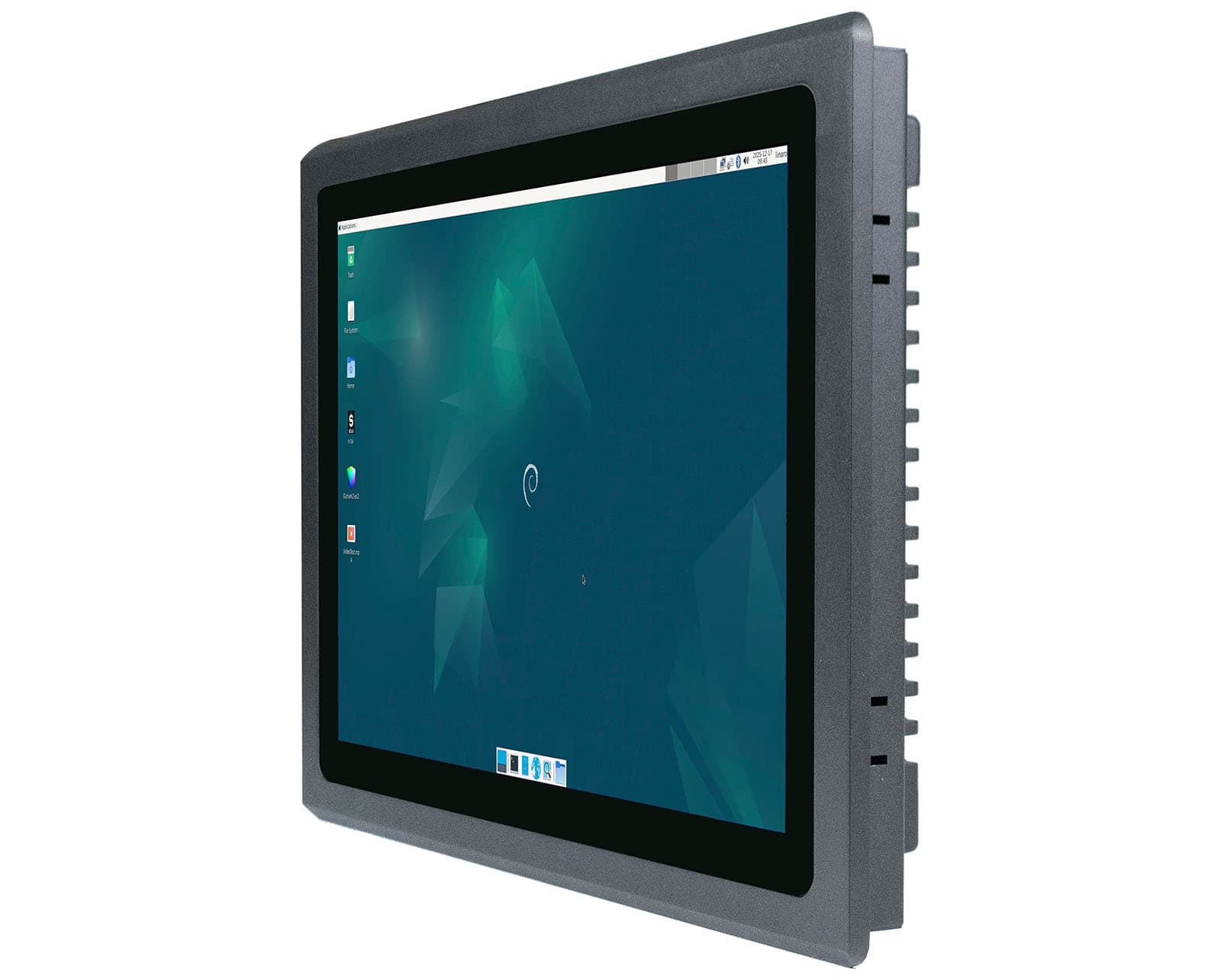

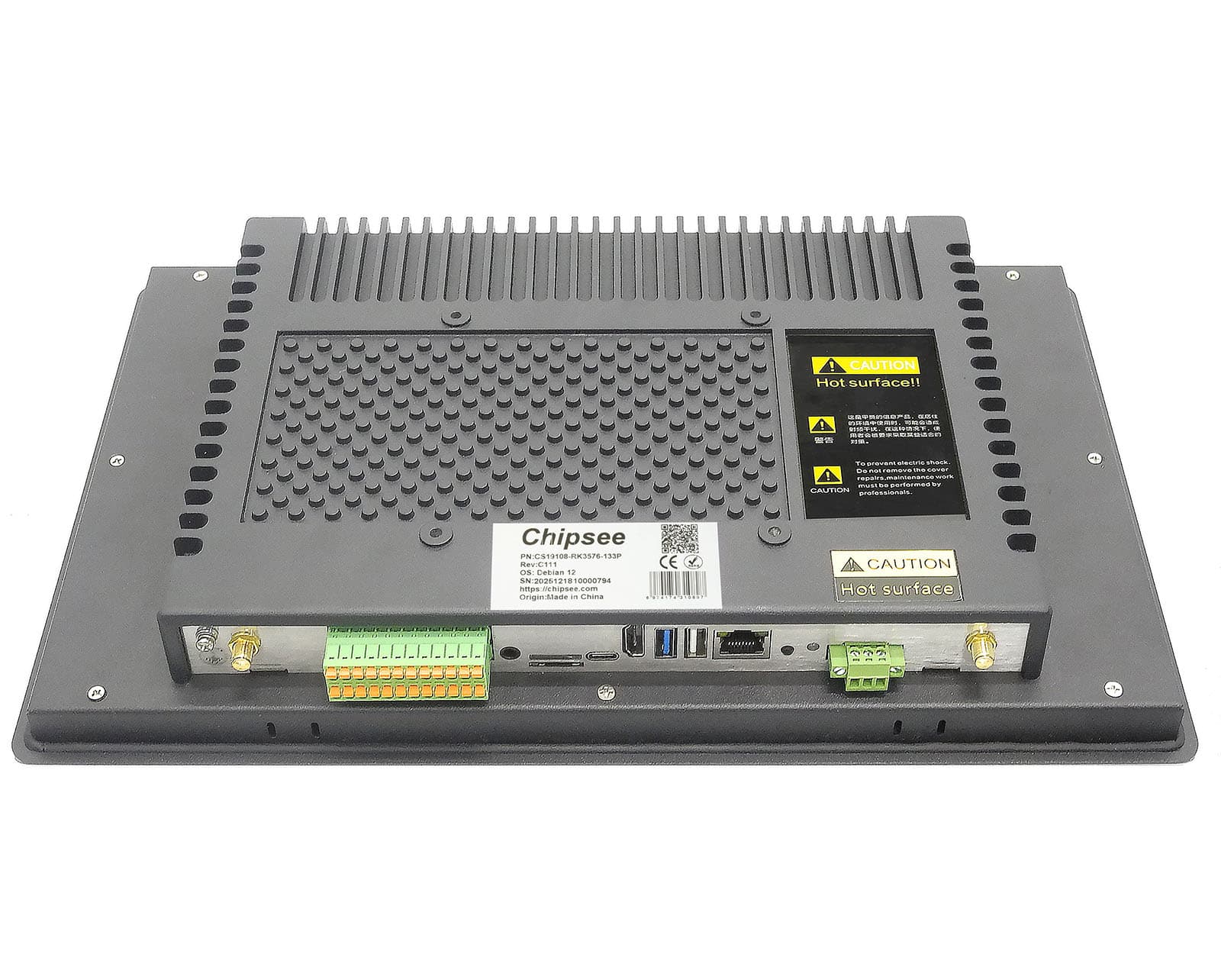

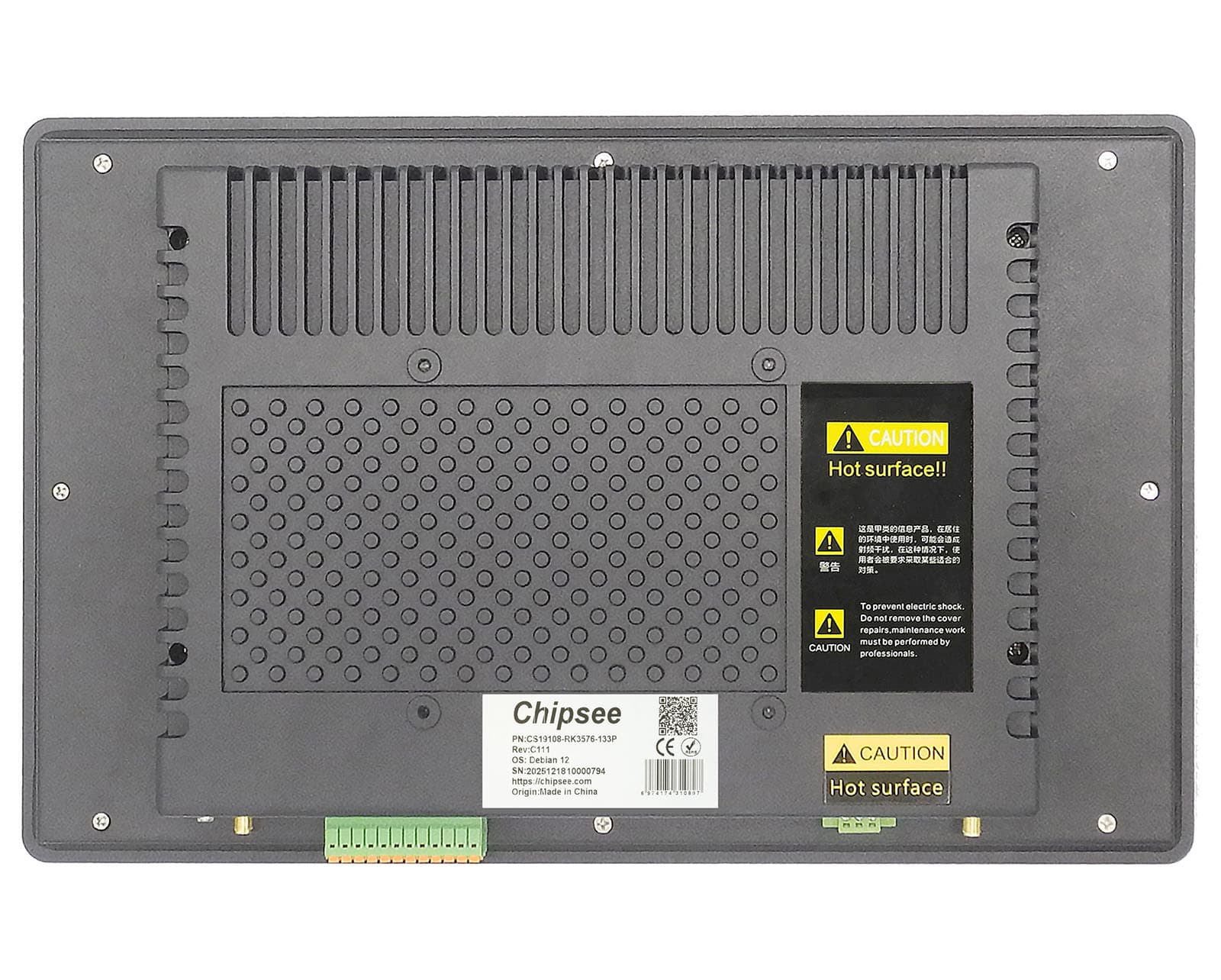

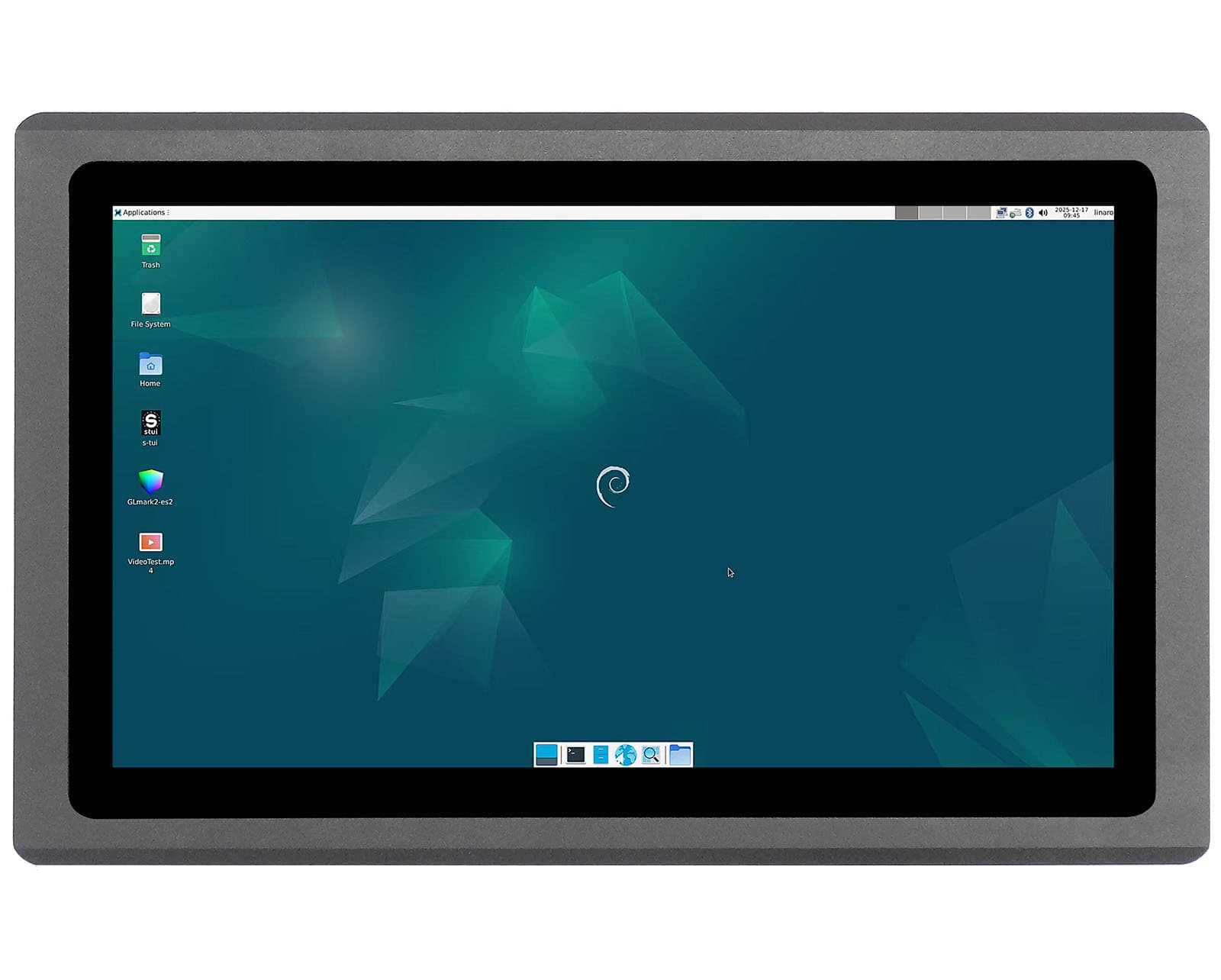

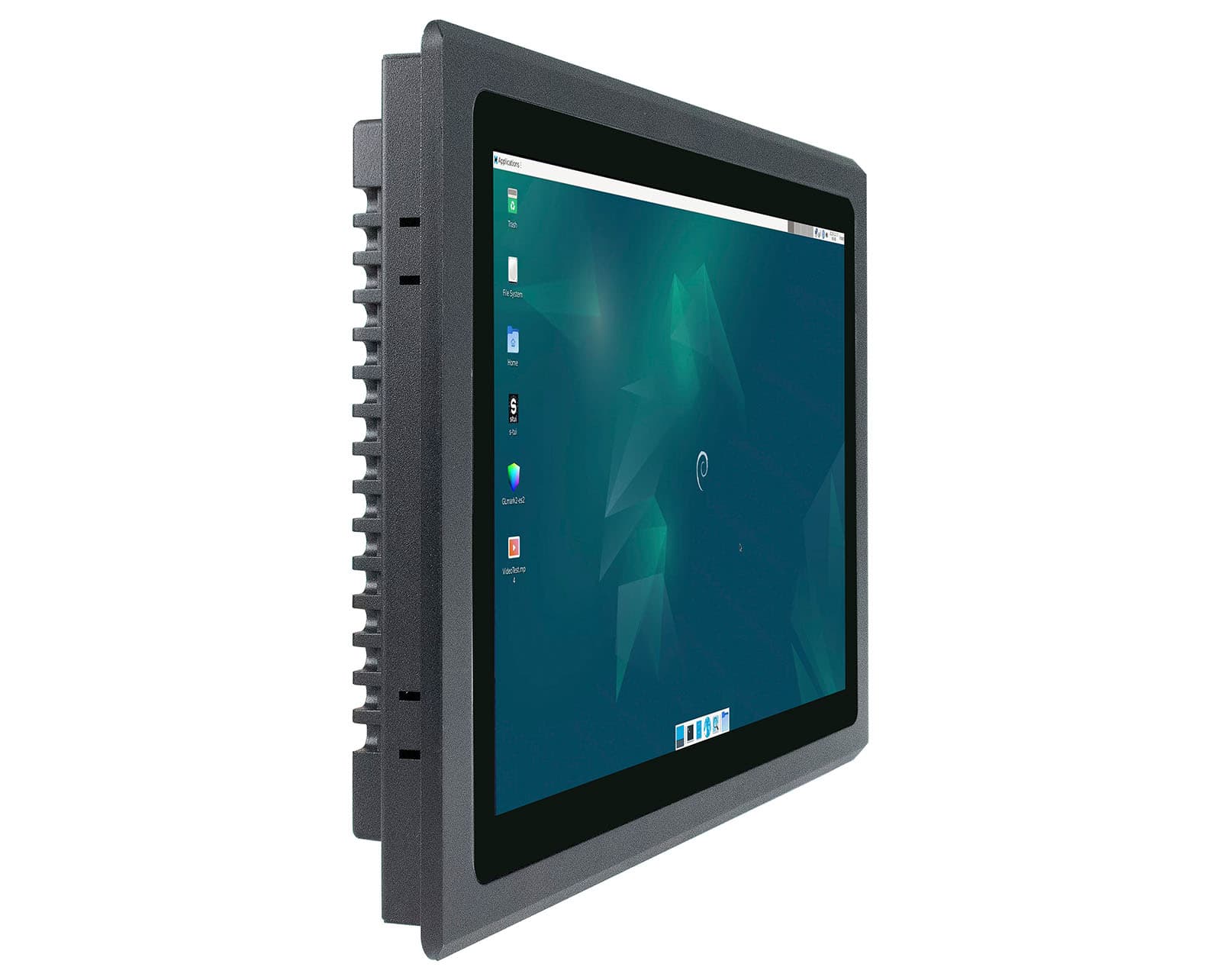

The PPC-RK3576-133 is a high-performance, IP65-rated industrial panel PC with a 13.3″ ten-point capacitive touchscreen offering Full HD resolution of 1920 × 1080 and 360 NIT brightness. Its robust aluminum enclosure with bezels supports both panel and VESA mounting, providing versatile installation options in industrial environments. Powered by the Rockchip RK3576 octa-core processor with integrated 6 TOPS NPU, the PPC-RK3576-133 is designed for demanding applications such as HMI systems, video processing, machine learning, process monitoring, and ATMs. The combination of high-quality display, responsive touch, and expandable connectivity ensures seamless integration with existing equipment while maintaining reliable performance under challenging industrial conditions.
Specifications
- SKU
- CS19108-RK3576-133P
- Net weight
- 3000 g
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- M.2
- Optional, supports M.2 M-Key 2230/2242/2260/2280 NVME SSD (PCI-E 3.0 x1)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- Display size
- 13.3″
- Display resolution
- 1920*1080
- Brightness
- 360 NIT
- Touch Screen
- Capacitive

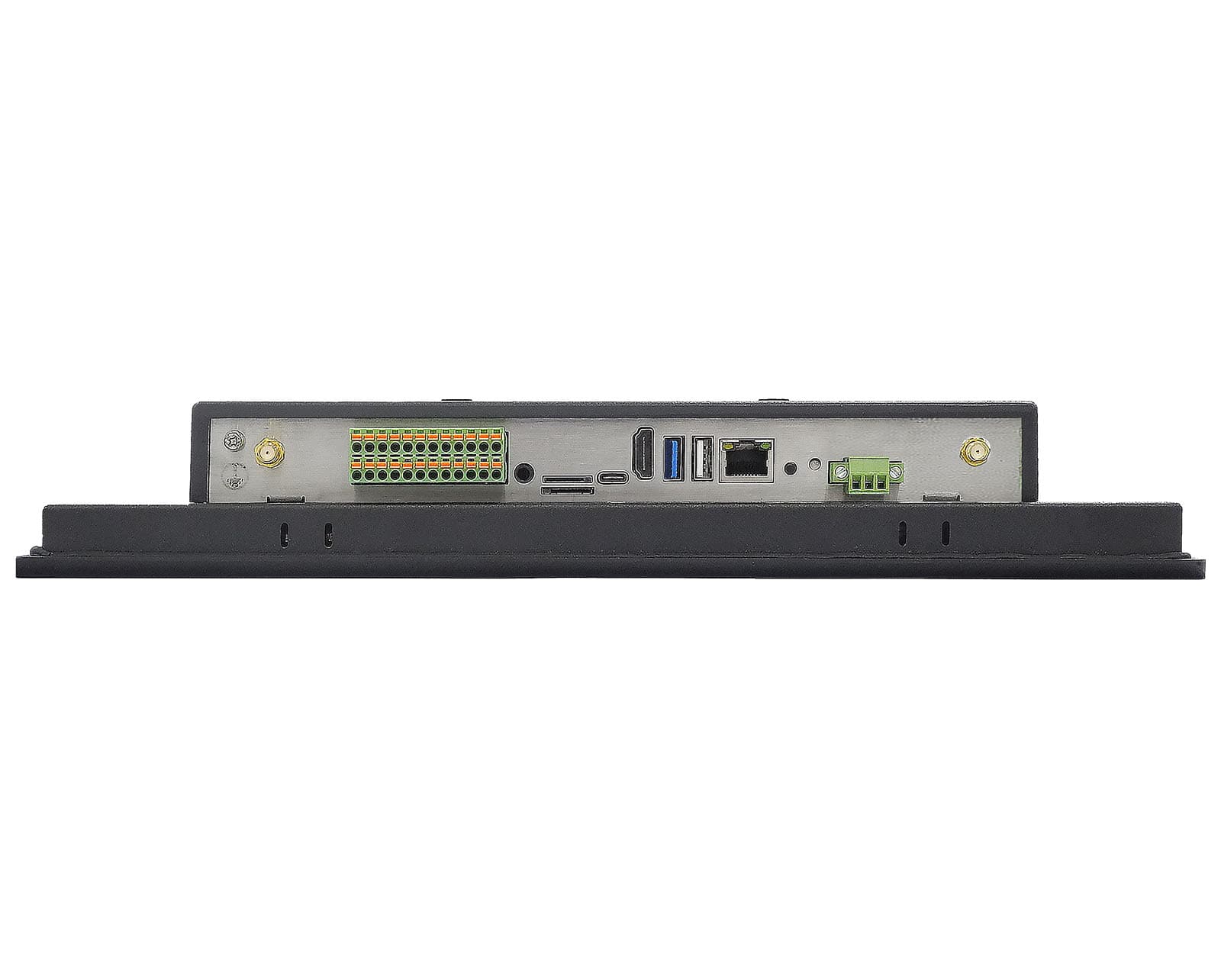

- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- 15-30V DC
- Power Consumption
- 10.5W typical
- Working Temperature
- 0°C to +80°C
- Current at 15V
- 1.2A Max
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
