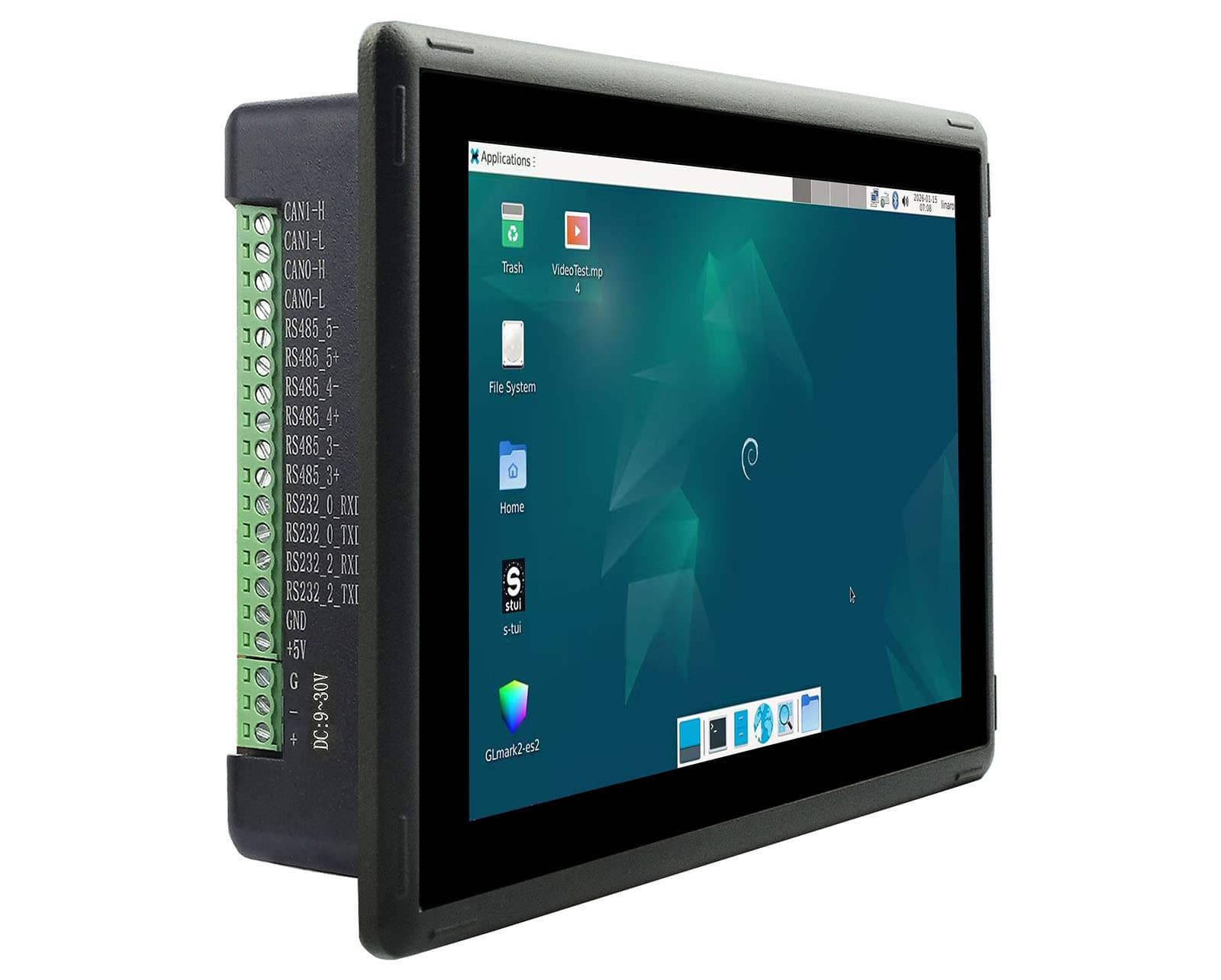

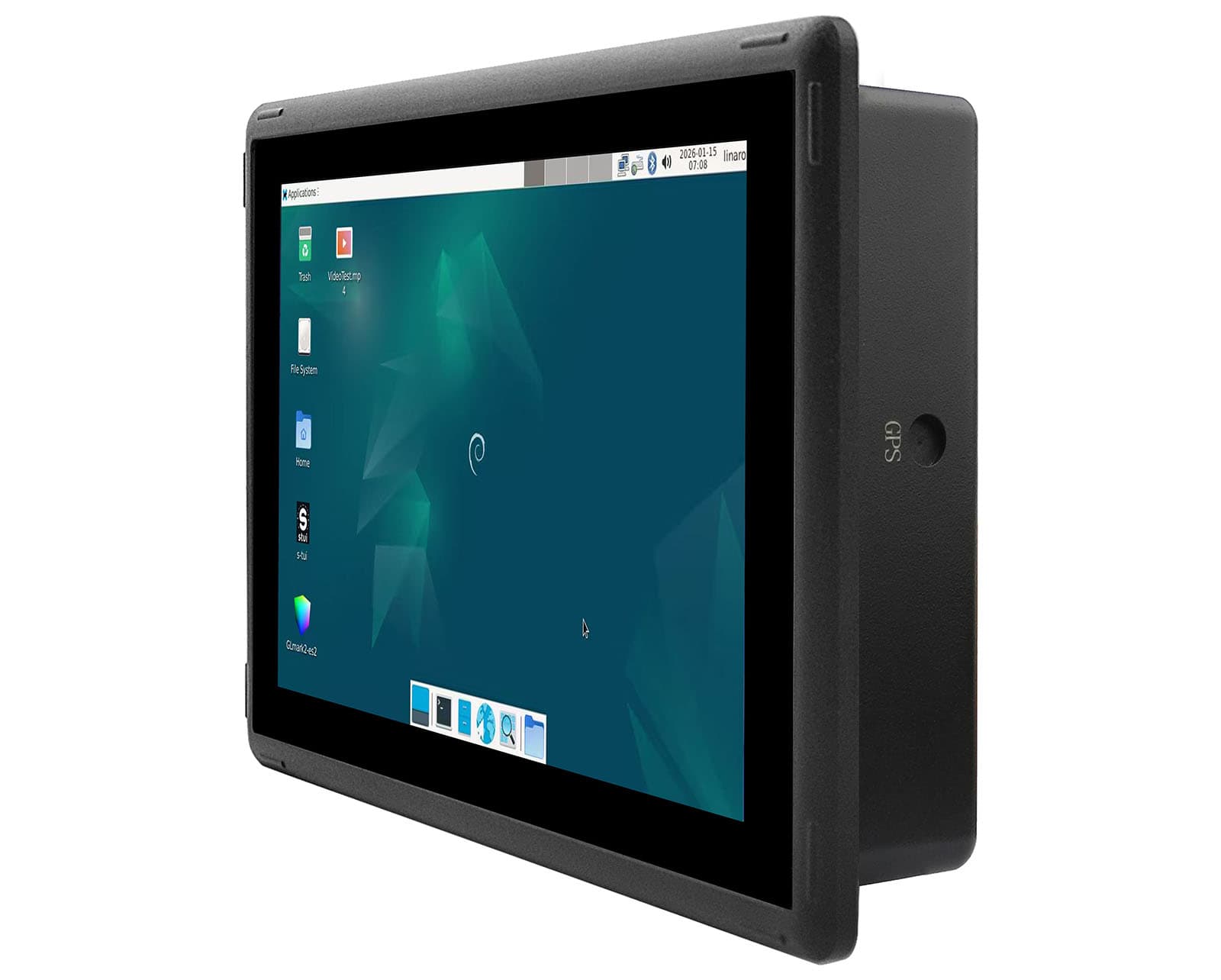

PPC-RK3576-070

Спецификации

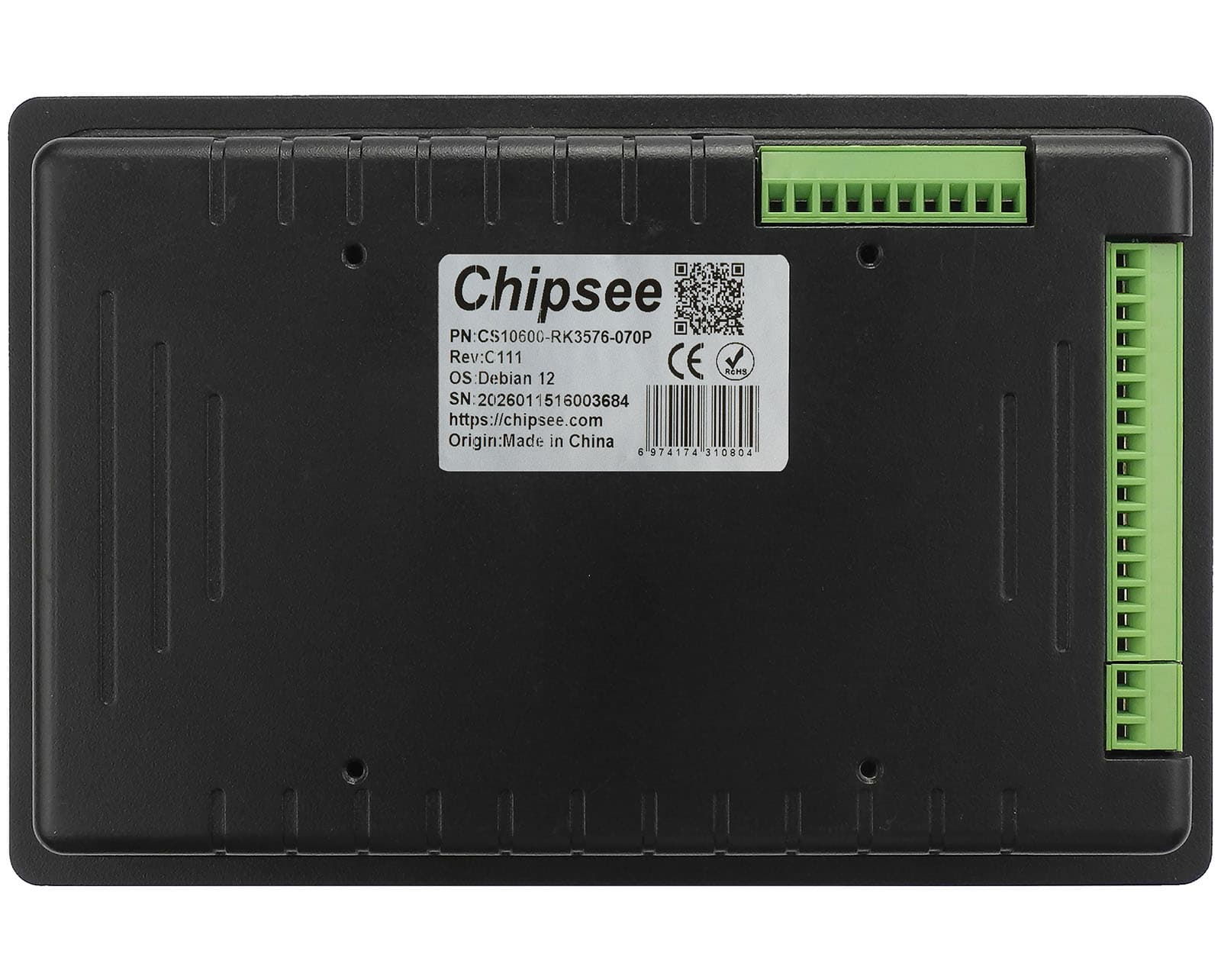

SKU

CS10600-RK3576-070P

Нетно тегло

610 g

Форм-фактор

Panel

Процесор

ARM: Rockchip RK3576

Тактова честота на процесора

Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)

NPU ускорител

6 TOPS(Sparsity)@INT8

Графичен процесор

ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding

Оперативна памет

4GB LPDDR5

Вградена памет (eMMC)

64GB

Постоянна памет

TF Card, Supports up to 128GB SDHC

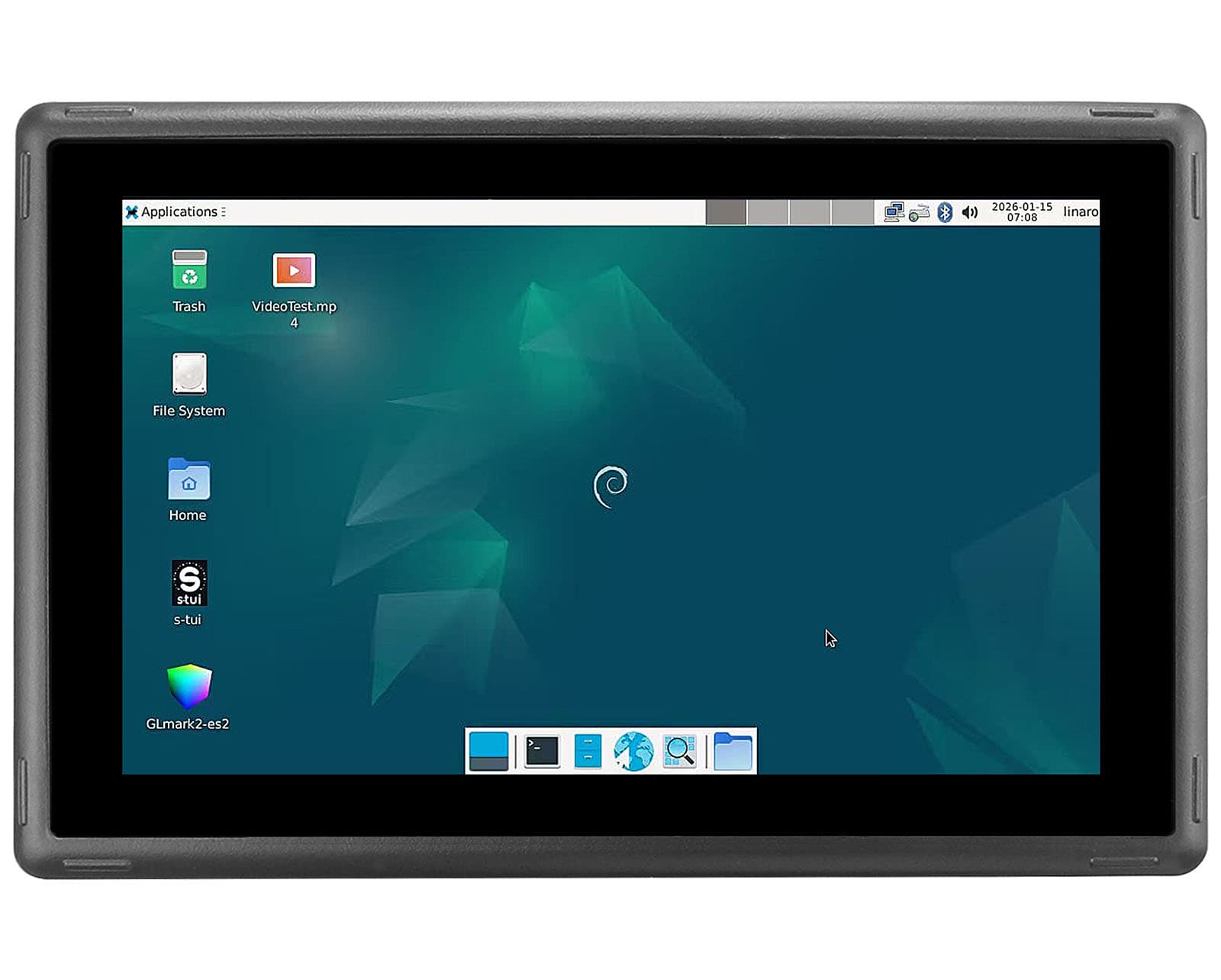

Диагонал на екрана

7.0″

Разделителна способност

1024*600

Яркост

500 NIT

Сензорен екран

Capacitive

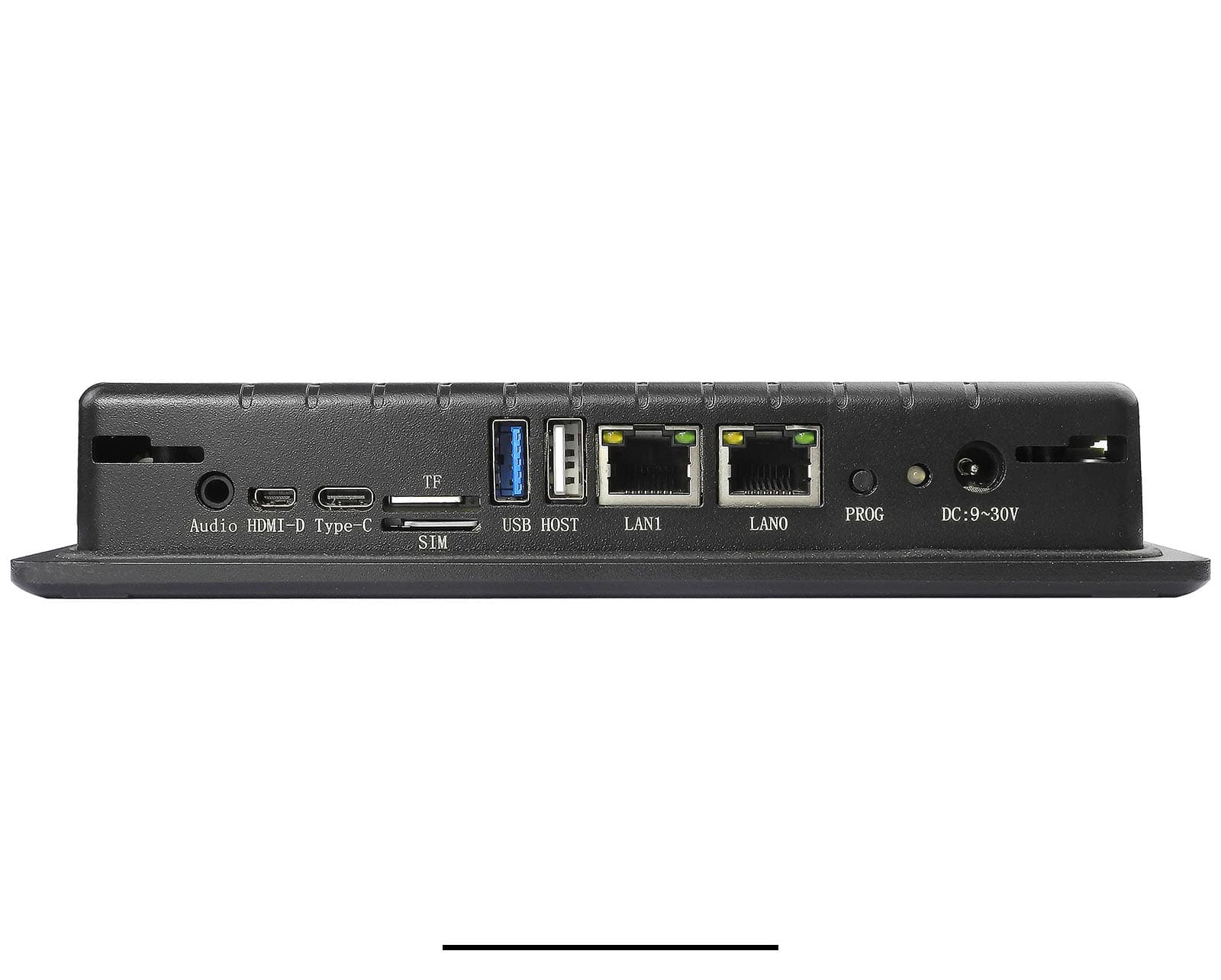

USB

1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST

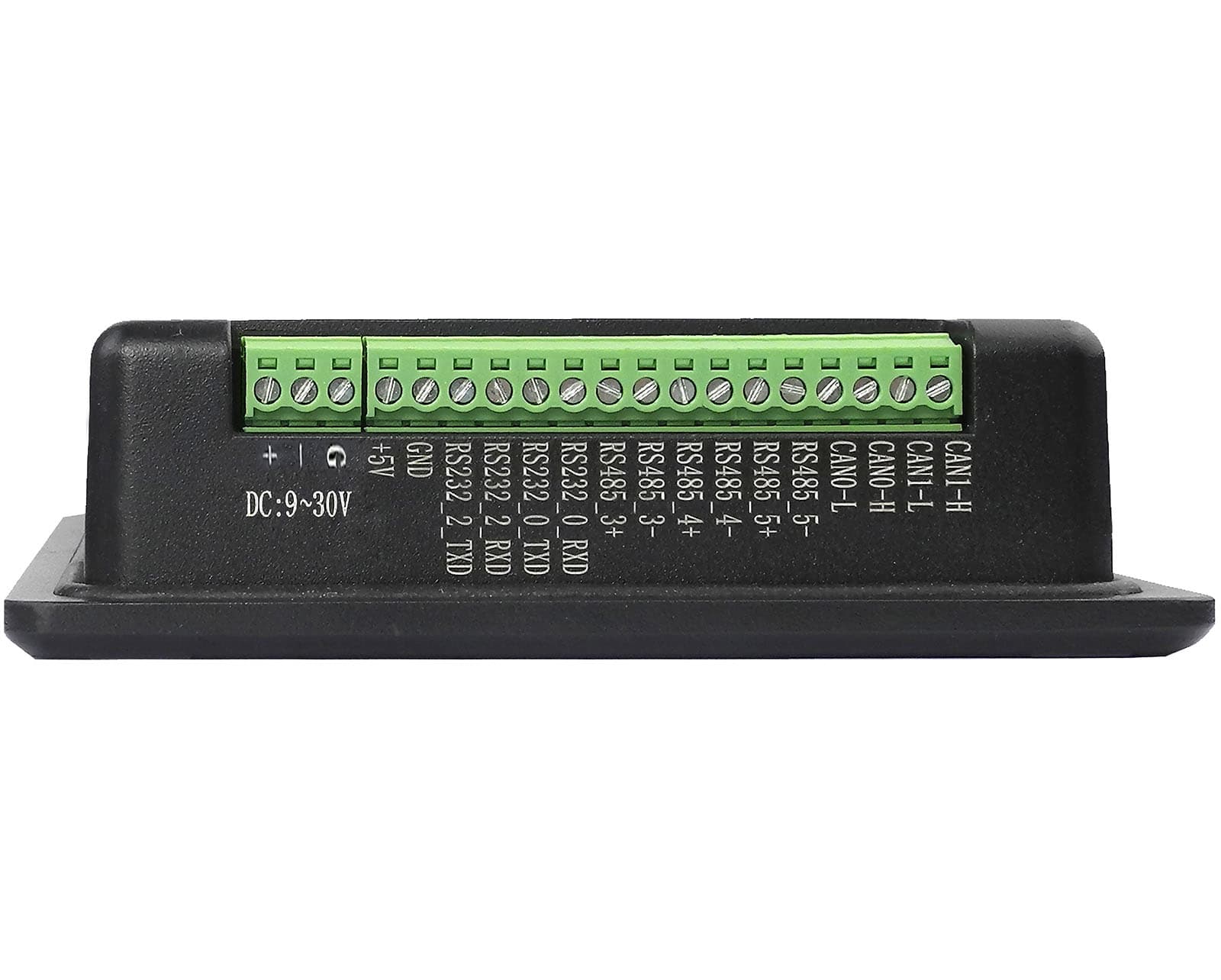

CAN

2 x CAN FD by default; Optionally 1 x CAN (CAN1) can be configured as RS232.

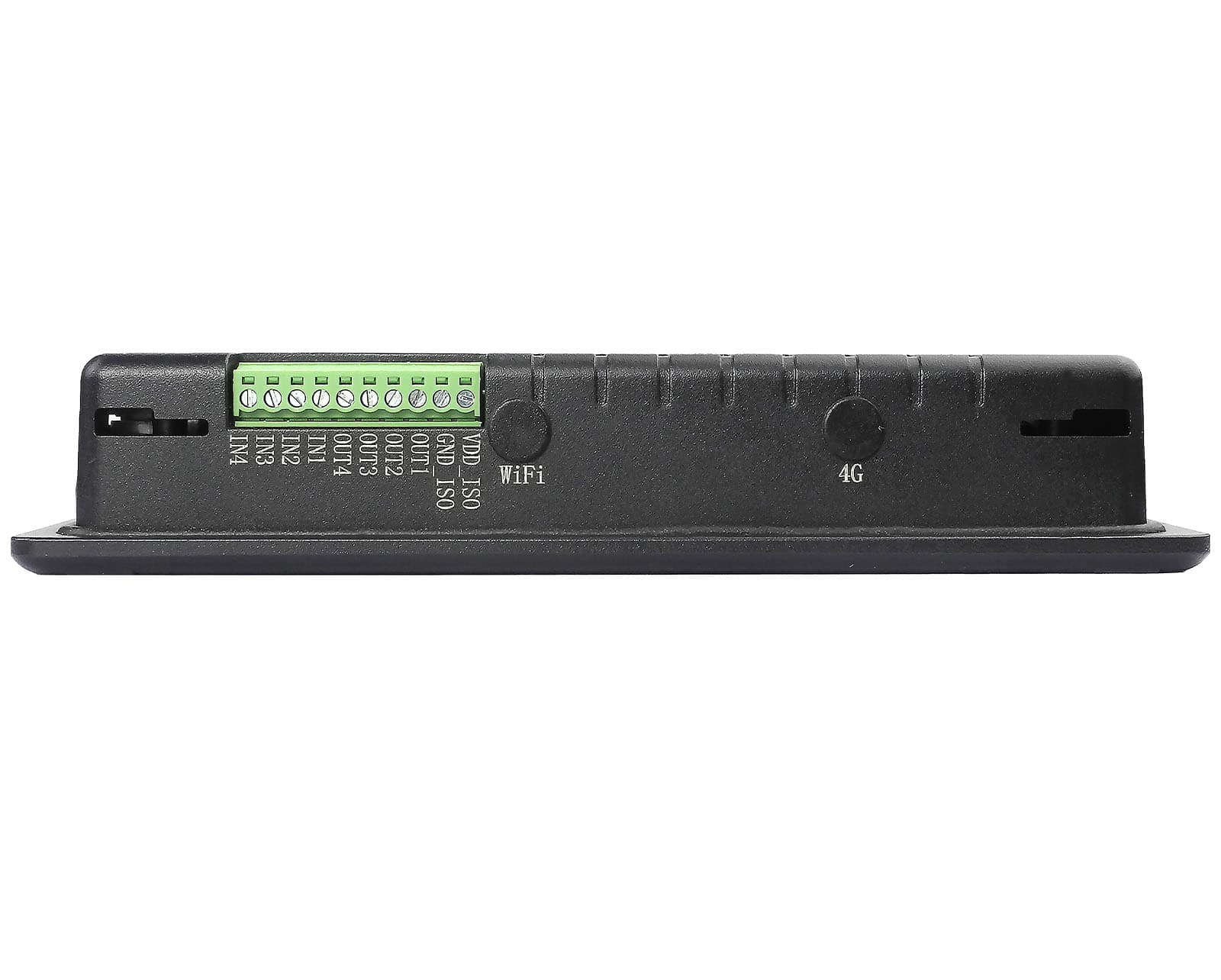

GPIO

8 Channels, 4 Input, 4 Output

HDMI

1 x HDMI-D (Micro HDMI) OUT

RS232

2 x RS232 by default (including 1 debug port). Up to 6 x RS232.

RS485

3 x RS485 by default; Optionally these 3 x RS485 can be configured as RS232.

Ethernet

2 x RJ45, GbE

Wi-Fi / Bluetooth

YES

4G

Optional

PoE

Not supported

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

YES

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

(supports optional 24V ignition signal); 9-30V DC

Консумация

8.25W Max

Ток при 15 V

550mA Max

Работна температура

-10°C to +60°C

Операционна система

Android; Buildroot; Debian; Ubuntu

Начин на монтаж

VESA, PANEL
