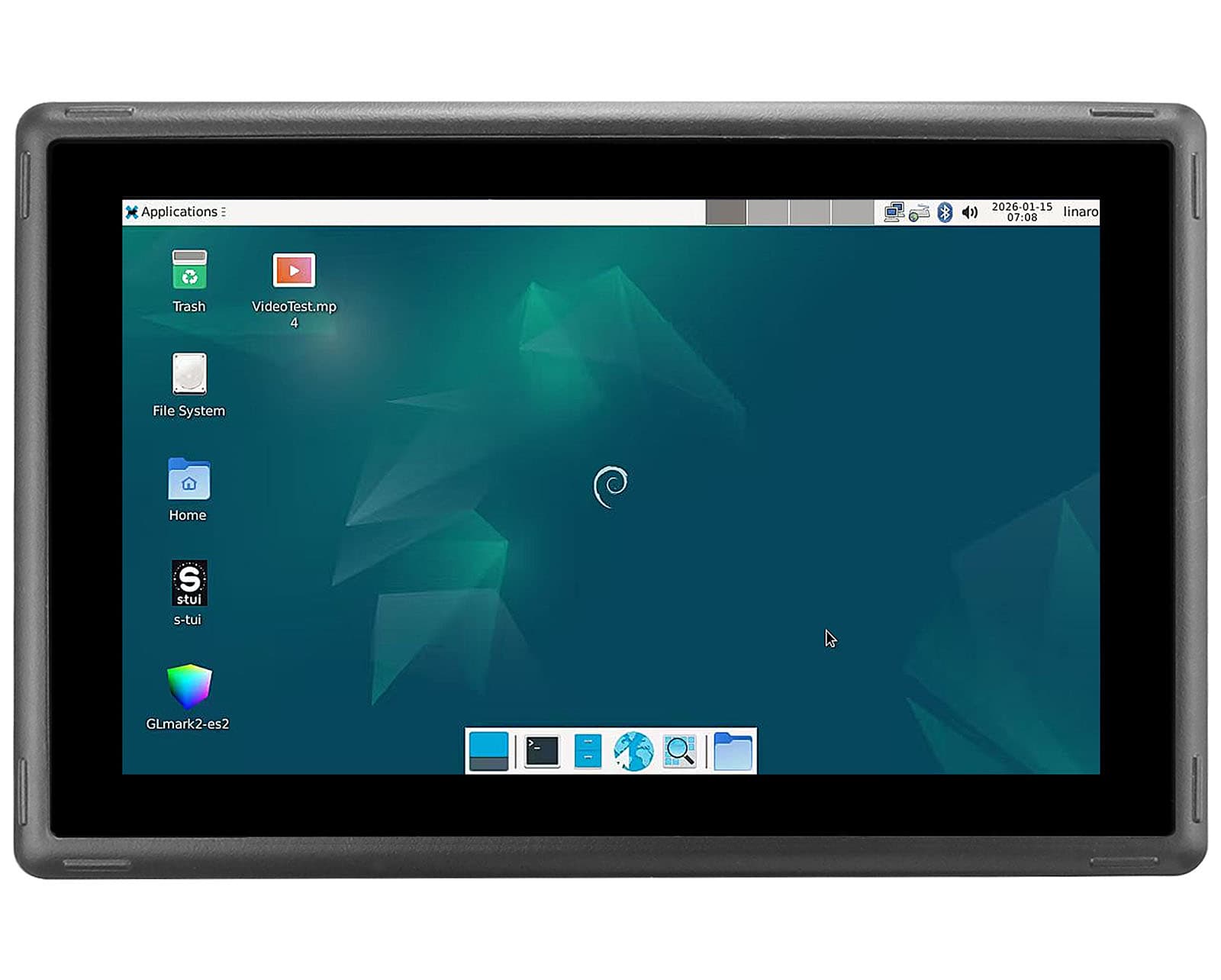

The PPC-RK3576-070 is a compact, high-performance industrial panel PC designed for modern HMI, automation, and intelligent edge applications. Featuring a 7.0” high-brightness capacitive touchscreen with armored glass and an IP65-rated front panel, it is built to operate reliably in demanding industrial environments. Its slim aluminum enclosure supports both panel and VESA mounting, making it easy to integrate into control cabinets, machinery, or existing systems where space efficiency and durability are essential. Powered by the Rockchip RK3576J platform, the PPC-RK3576-070 delivers a strong balance of computing performance, graphics capability, and AI acceleration. With support for Android and Linux operating systems, extensive connectivity, and flexible expansion options, this panel PC is well-suited for applications such as industrial control, process monitoring, machine vision, edge AI, and interactive user interfaces.
Specifications
- SKU
- CS10600-RK3576-070P
- Net weight
- 610 g
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- Display size
- 7.0″
- Display resolution
- 1024*600
- Brightness
- 500 NIT
- Touch Screen
- Capacitive
- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST

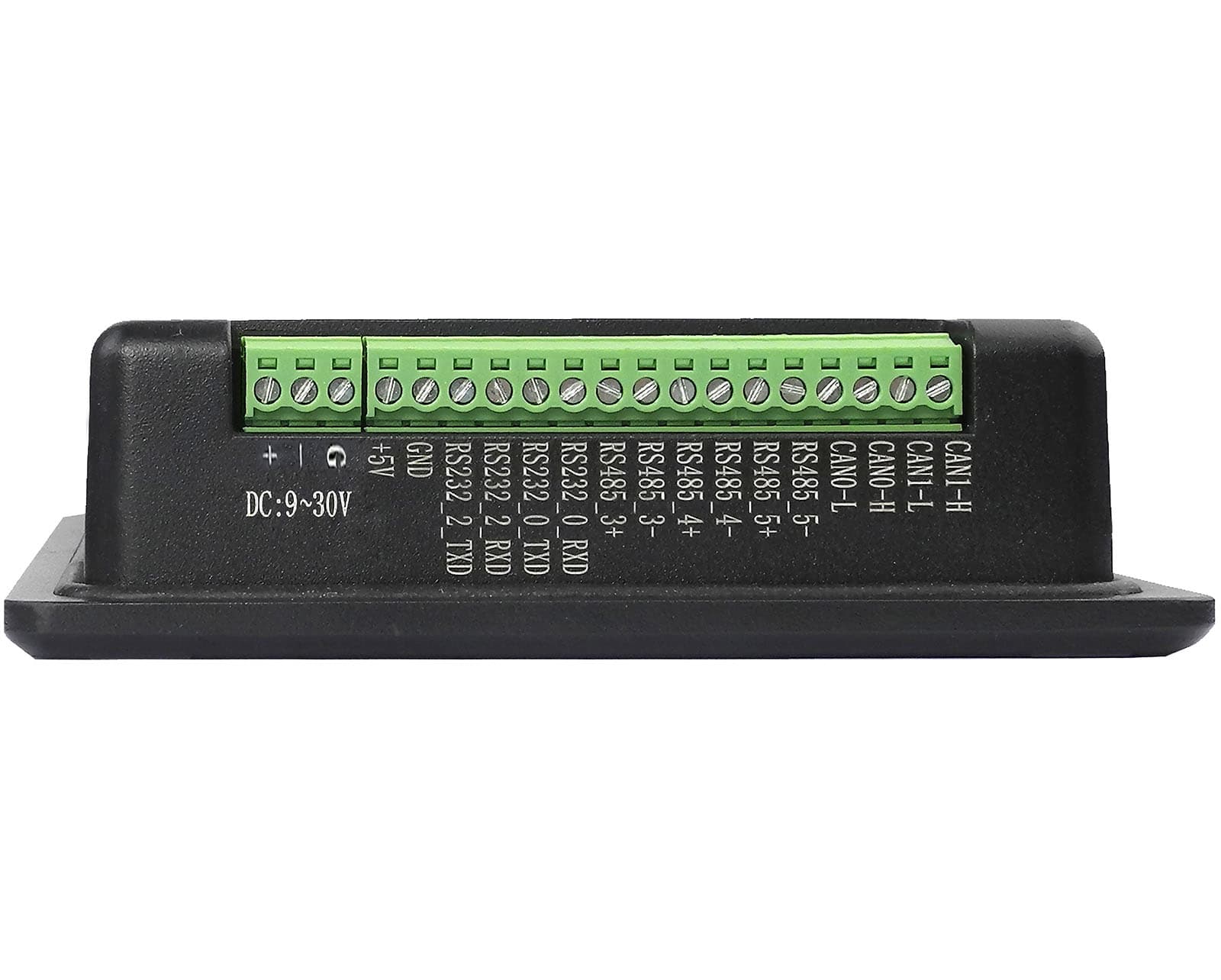

- CAN
- 2 x CAN FD by default; Optionally 1 x CAN (CAN1) can be configured as RS232.

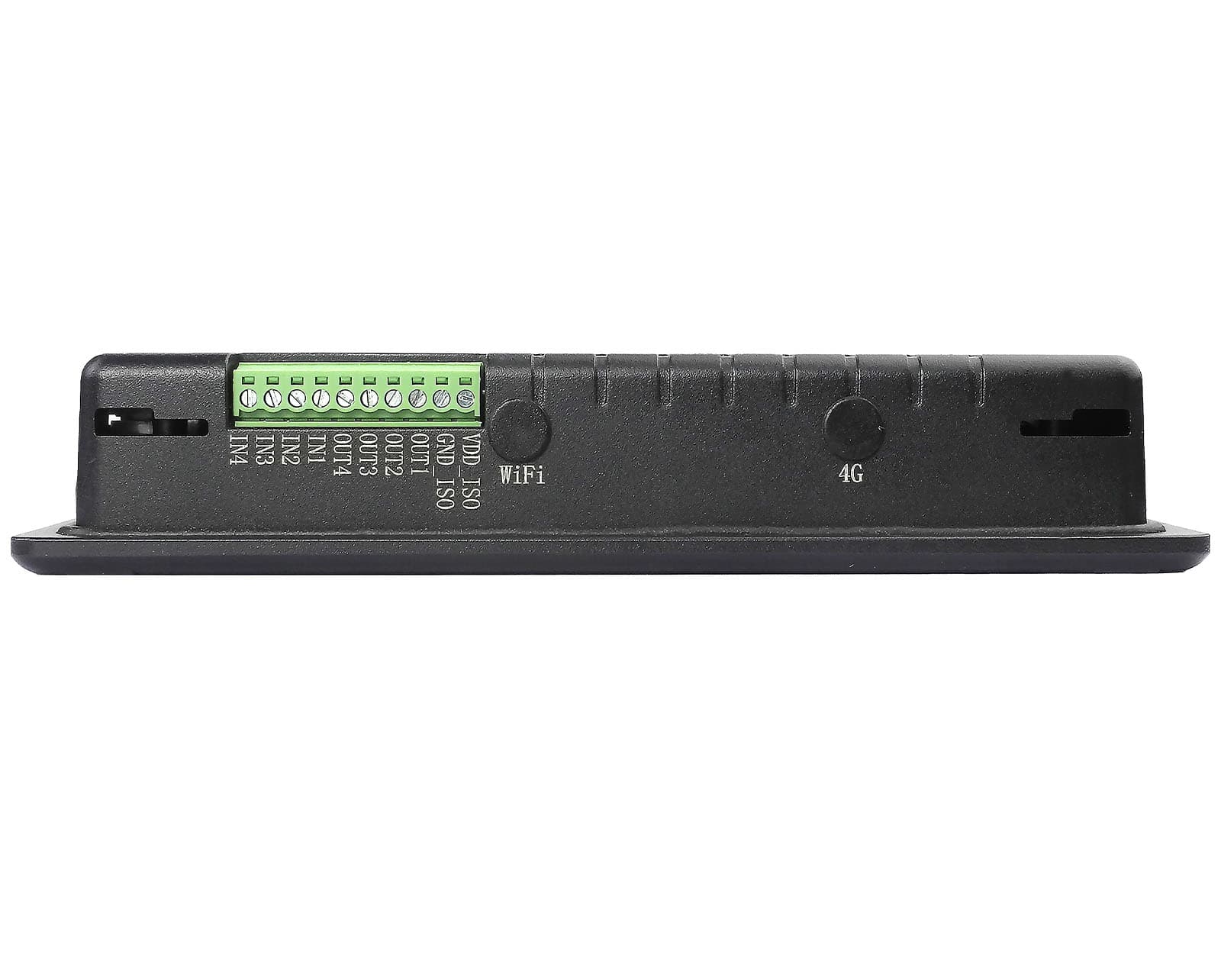

- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI-D (Micro HDMI) OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 3 x RS485 by default; Optionally these 3 x RS485 can be configured as RS232.
- Ethernet
- 2 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Not supported
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 9-30V DC
- Power Consumption
- 8.25W Max
- Current at 15V
- 550mA Max
- Working Temperature
- -10°C to +60°C
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
