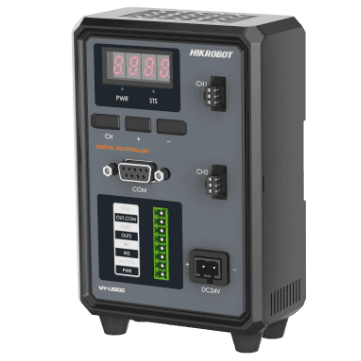

light controller for dot-type lighting
MV-LE201-10W5-2DHikrobot
Осветление — IP30
Model
- Product Model
- MV-LE201-10W5-2D
- Type
- light controller for dot-type lighting
Performance
- Dimming mode
- Control panel (via pressing button), software (serial port)
- Trigger mode
- External trigger and internal trigger
- Communication protocol
- Serial
Electrical feature
- Output current for each channel
- Max. 1 A
Physical specification
- Channel
- 2-channel
Mechanical
- Power supply interface
- 24 VDC terminal block
- Console interface
- DB9F serial port
- Digital I/O
- Opto-isolated input × 2, opto-isolated output × 2
- Dimension
- 139.5 mm × 90 mm × 54.1 mm (5.5" × 3.5" × 2.1")
- Shell material
- Plastic
- Weight
- 240 g (0.5 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
General
- Certification
- CE, KC
