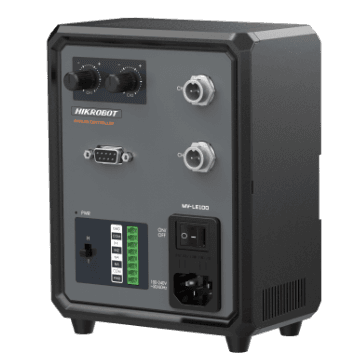

Analog Light Controller，2 channel，200W/24V
MV-LE100-200W24-2BDHikrobot
Осветление — IP30
Model
- Product Model
- MV-LE100-200W24-2BD
- Type
- Analog Light Controller，2 channel，200W/24V
Performance
- Dimming mode
- Control panel (knob), software (serial port)
- Trigger mode
- External trigger
Electrical feature
- Output current for each channel
- Max. 6 A
Physical specification
- Channel
- 2-channel
Mechanical
- Power supply interface
- C13 220 VAC interface
- Digital I/O
- Opto-isolated input × 2
- Dimension
- 130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7")
- Shell material
- Plastic
- Weight
- Approx. 820 g (1.8 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
General
- Certification
- CE, KC
