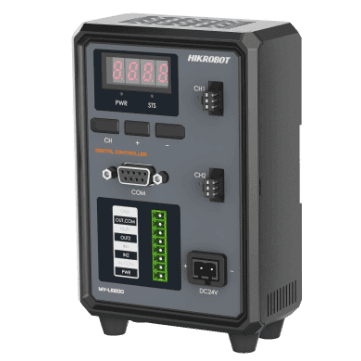

Digital Light Controller，2 channel，48W/24V
MV-LE200-48W24-2DHikrobot
Осветление — IP30
Model
- Product Model
- MV-LE200-48W24-2D
- Type
- Digital Light Controller，2 channel，48W/24V
Performance
- Drive mode
- Digital, constant voltage
- Lighting mode
- Continuous, strobe
- PWM frequency
- 125 kHz
- Strobe overdrive
- Not support
- Channel
- 2-channel
- Dimming mode
- Control panel (via pressing button), software (serial port)
- Brightness level
- 0 to 255
- Lighting response time
- < 10 μs
- Trigger mode
- External trigger and internal trigger
- Communication protocol
- Serial
- Applicable product
- Ring light, bar light, flat light, coaxial light, etc.
Electrical feature
- Input voltage
- 24 VDC
- Input current
- 2.5 A
- Output voltage
- 24 VDC
- Output current
- Max. 2 A
- Output power
- Max. 48 W
- Output current for each channel
- Max. 2 A
- Trigger in
- High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
- Trigger out
- High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical
- Power supply interface
- 5.08 mm × 2 terminal block
- Console interface
- DB9F serial port
- Digital I/O
- Opto-isolated input × 2, opto-isolated output × 2
- Lighting output connector
- SMR-03V-BC
- Dimension
- 90 mm × 54.1 mm × 139.5 mm (3.5" × 2.1" × 5.5")
- Shell material
- Plastic
- Weight
- Approx. 188 g (0.4 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
- Cooling mode
- Natural cooling
General
- Certification
- CE, KC
