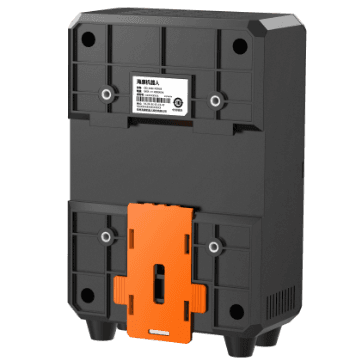

light controller for dot-type lighting

MV-LE201-10W5-2DHikrobot

Hikrobot MV-LE series light controllers cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series by now with brand new family style design, stable and reliable performance, compatible with all light source product series. The analog series support knob stepless dimming, helping users to achieve rapid deployment; The digital series support precise button dimming, can also flexibly configure parameters through the communication interfaces; Support Always-On & Trigger mode; Equipped with unique “Timer” linkage function, can flexibly realize multi-optical signal synchronization linkage. Support various parameter configuration methods: panel/serial port/network port Provide demo tools (no installation needed), no need for users to query the controller communication protocol; Support MVS/SDK integration, highly match the development habits of industrial cameras, can reduce the complexity of secondary development.

Model

Product Model
MV-LE201-10W5-2D
Type
light controller for dot-type lighting

Performance

Dimming mode
Control panel (via pressing button), software (serial port)
Trigger mode
External trigger and internal trigger
Communication protocol
Serial

Electrical feature

Output current for each channel
Max. 1 A

Physical specification

Channel
2-channel

Mechanical

Power supply interface
24 VDC terminal block
Console interface
DB9F serial port
Digital I/O
Opto-isolated input × 2, opto-isolated output × 2
Dimension
139.5 mm × 90 mm × 54.1 mm (5.5" × 3.5" × 2.1")
Shell material
Plastic
Weight
240 g (0.5 lb.)
Temperature
Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F)
Humidity
20% RH to 85% RH (no condensation)
Ingress protection
IP30

General

Certification
CE, KC

Firmware
