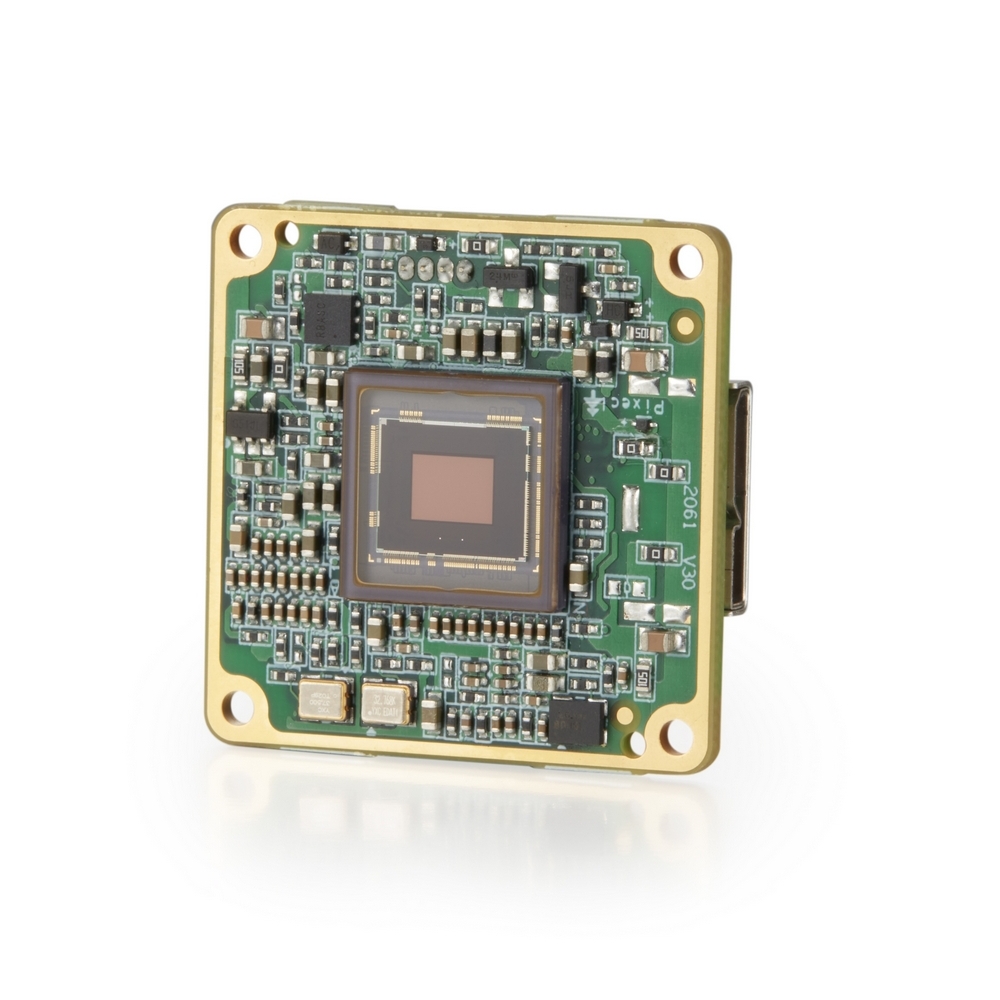

VEN-161-61U3C-M06

DAHENG Board level USB 3.0 industrial camera

1/2.9", 61fps, 1440x1080, Color, Global shutter, Board-level, IMX296, USB3.0

DAHENG Board level USB 3.0 industrial camera

The VENUS series (VEN-U3) camera is DAHENG IMAGING’s board level industrial digital camera. The VEN-U3 series camera is a good choice for users who have requirements for space, weight, consumption and heat. The VEN-161-61U3M/C is a monochrome/color USB3 Vision camera with Sony IMX296 CMOS sensors. The VEN-161-61U3M/C provides three lens mount options: CS mount with housing, S mount with housing, and No mount (bare board). Thanks to the extremely compact housing of 35mm × 35mm × 15.8mm, and various mount options, the VEN-161-61U3M/C is more flexible in demanding space. The VEN-161-61U3M/C is especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • VEN-161-61U3C supports light source preset function
  • Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
  • Storable user sets
  • Support Reverse X/Y (horizontal and vertical mirroring)
  • Support hardware trigger and software trigger
  • 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Compatible with GenICam™ and USB3 Vision®, can be used in a wide range of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision
Spectral Response Data:

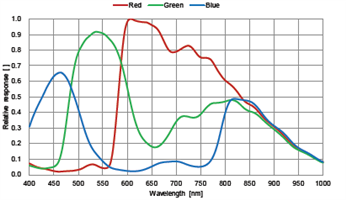

VEN-161-61U3C Spectral Response

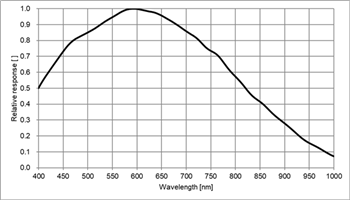

VEN-161-61U3M Spectral Response

SpecificationsVEN-161-61U3MVEN-161-61U3C
Resolution1440(H) × 1080(V)
Frame Rate61.2fps @ 1440×1080
Sensor Type1/2.9", Global Shutter Sony IMX296 CMOS
Pixel Size3.45μm×3.45μm
SpectrumMonoColor
Pixel Data FormatsMono8 / Mono10Bayer RG8 / Bayer RG10
Data InterfaceUSB3.0 Micro B
Power Consumption<2.7W@5V DC

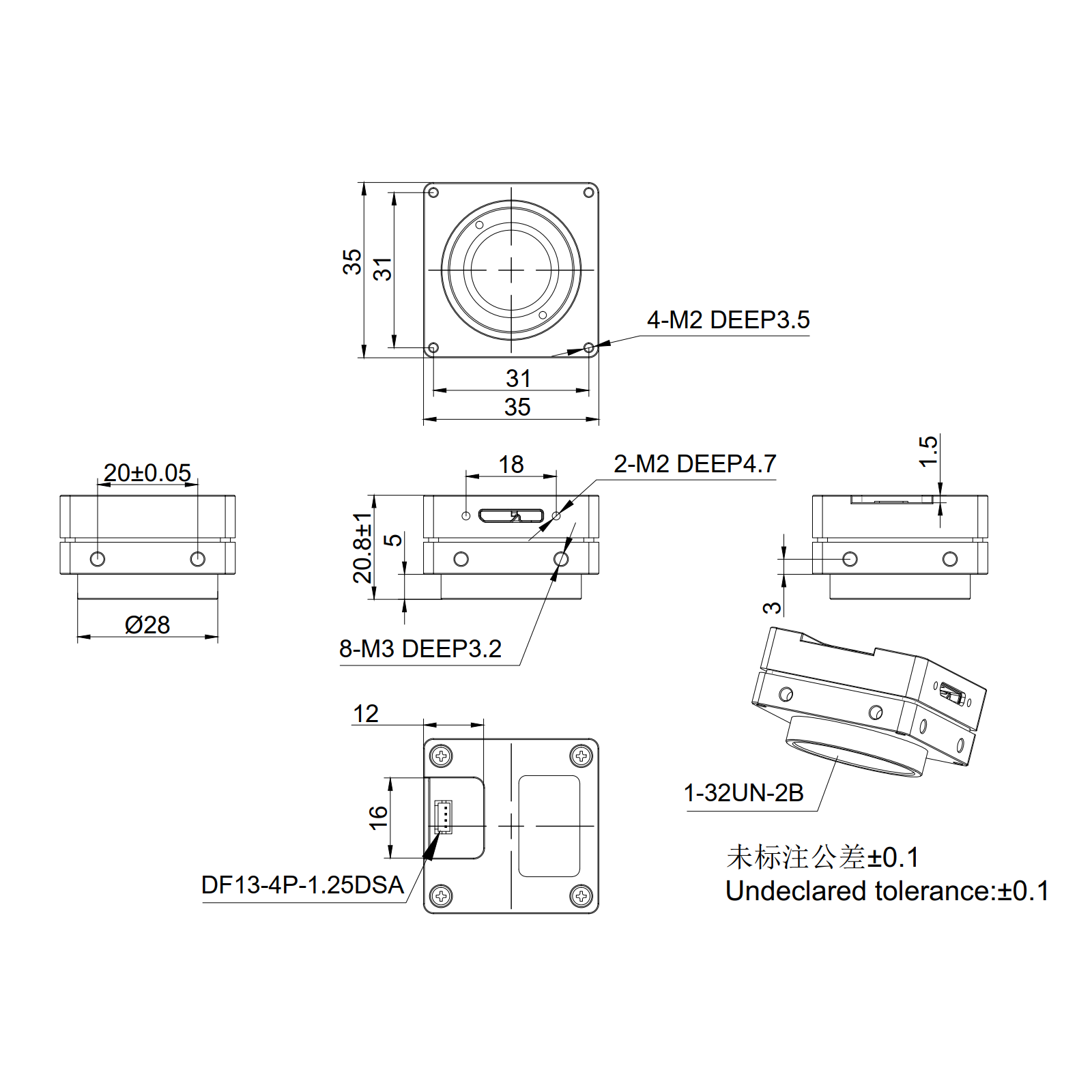

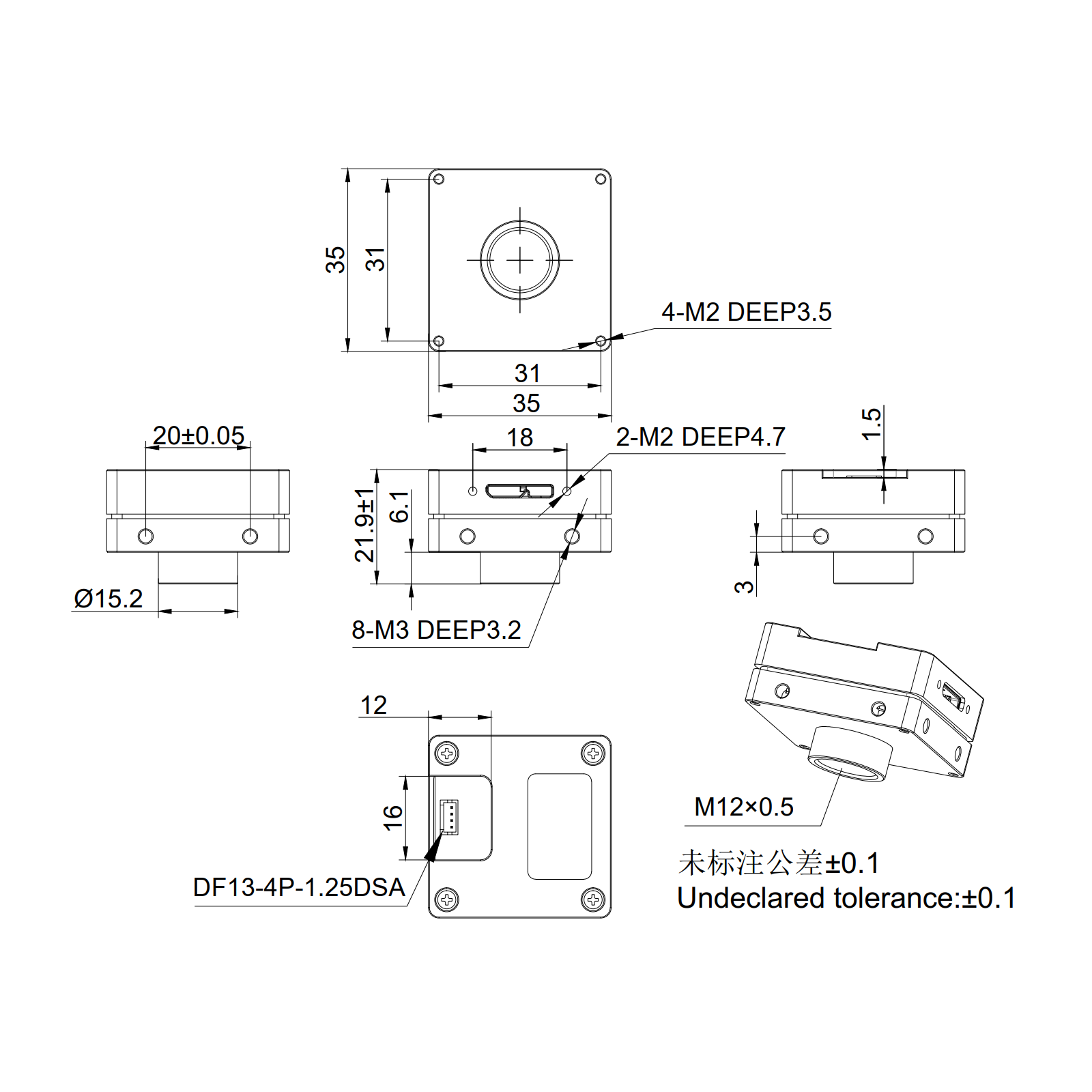

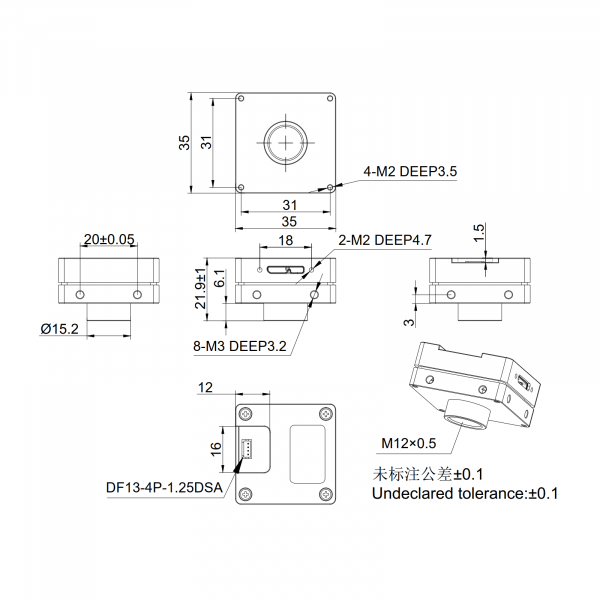

Lens MountCS-mount (-M01) /S-mount (-M05) /No mount (-M06)(optional)

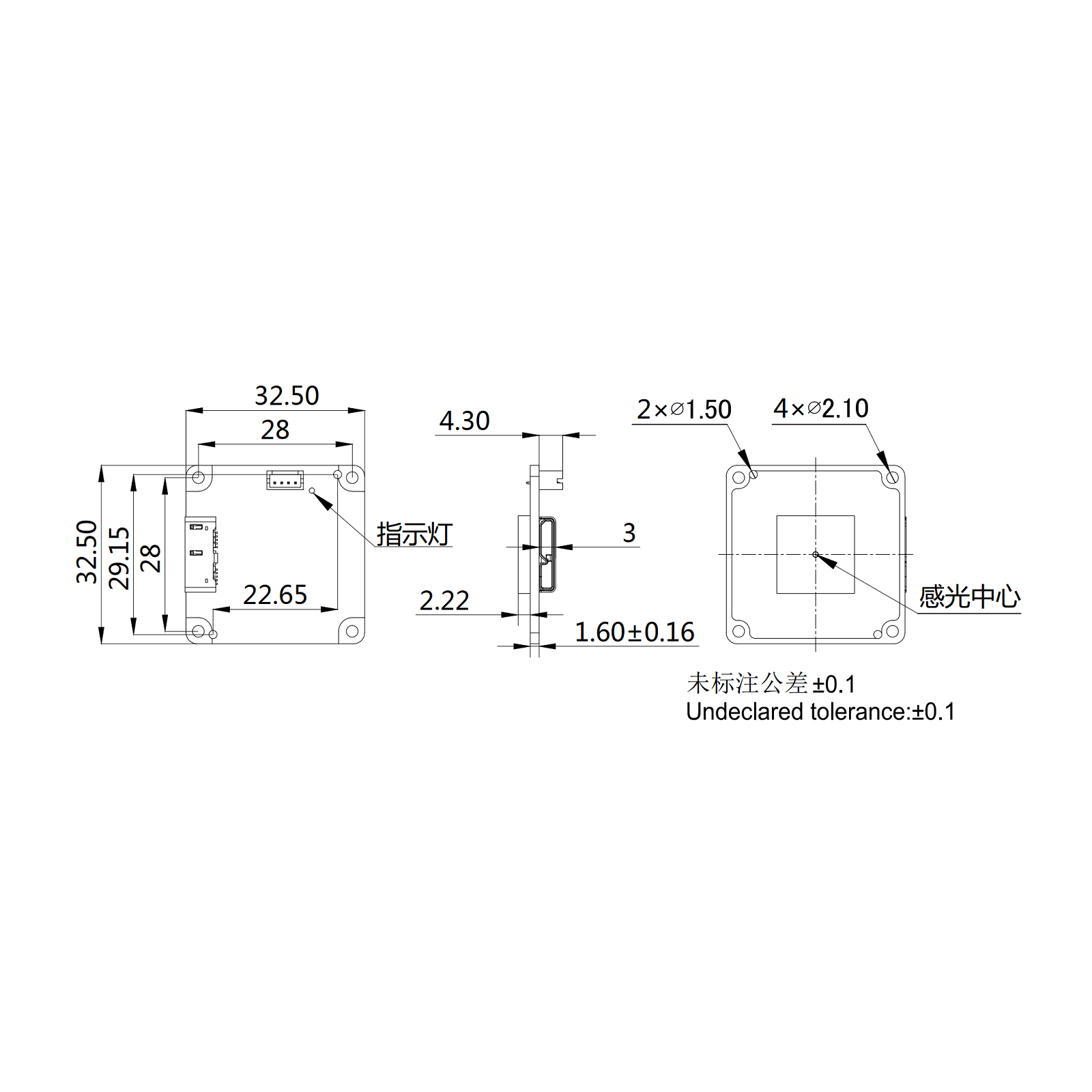

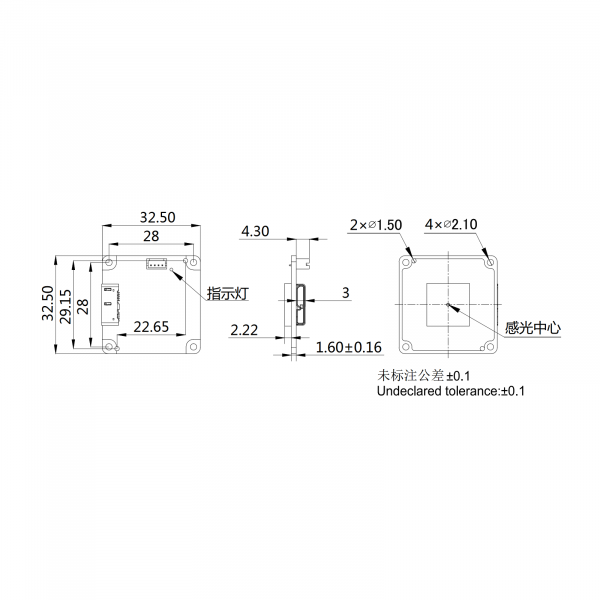

Dimensions (L×W×H)35x35x15.8 mm (without CS lens mount), 35x35x15.1 mm (without S lens mount), 32.5x32.5x8.1 mm (bare board, the PCB thickness is 1.6mm)
Operating Temp.0°C~45°C
Operating Humidity10%~80%
Weight31g (CS mount), 32g (S mount), 7g (bare board)
RegulationsRoHS, CE, USB3 Vision, GenICam
Optical Specifications:
Lens MountCS mountS mountNo mount
Camera ModelVEN-161-61U3M/C-M01VEN-161-61U3M/C-M05VEN-161-61U3M/C-M06
