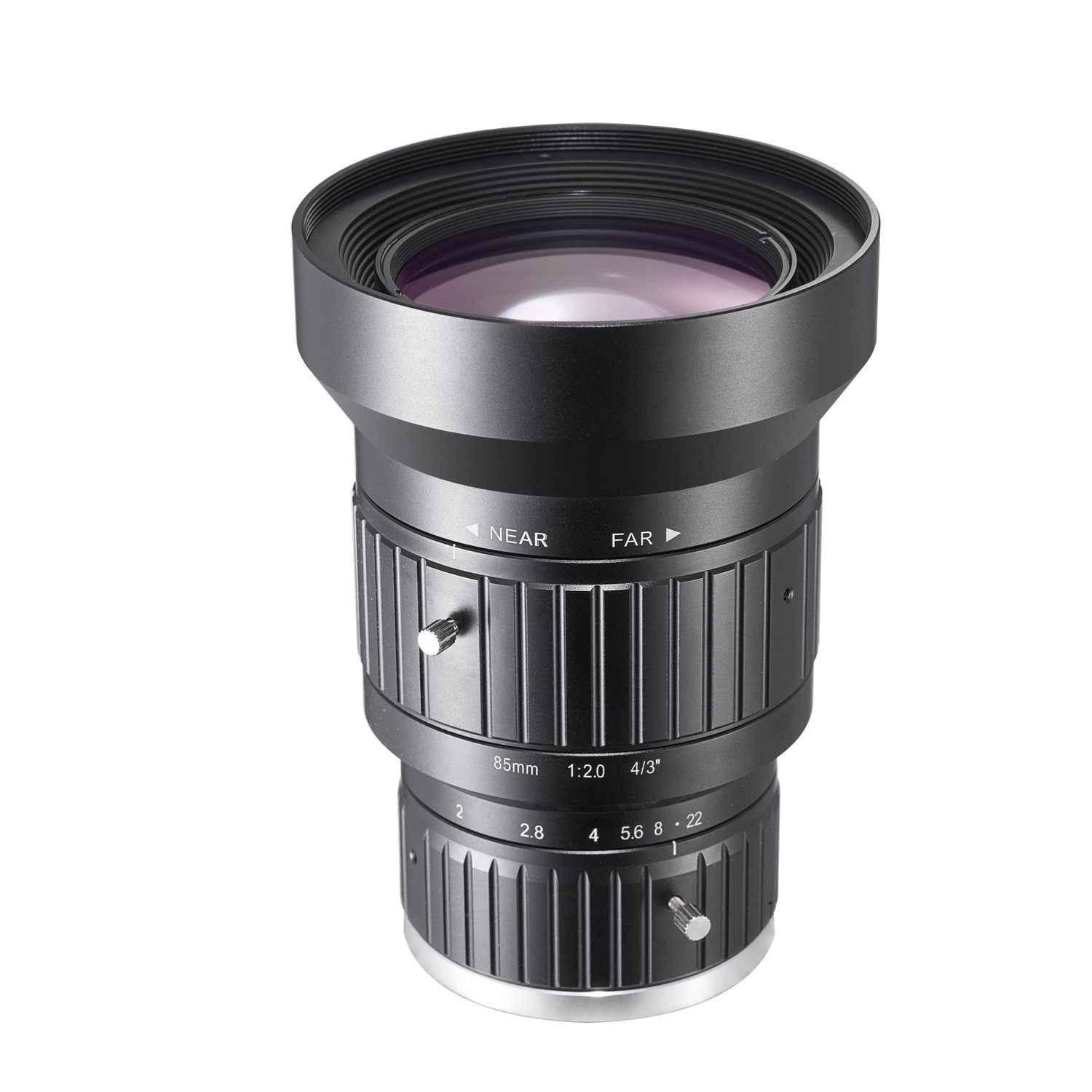

SA8520M-10MP

HIKROBOT Lens, FA Series, SA

85mm, F2.0 ~ F22, Ø 23mm (4/3''), C-Mount

HIKROBOT Lens, FA Series, SA

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

SKU: SA8520M-10MP Categories: , Tags: , , ,
Compare
  • High resolution and excellent image uniformity
  • F2.0, Maximum image circle of 4/3”
  • Low distortion to improve measurement accuracy
  • High peripheral brightness ratio to ensure image brightness consistency

Model Product Model SA8520M-10MP
Type 85mm, F2.0, 4/3″, 10MP Lens, C-Mount
Performance Focal length 85 mm
F-Number F2.0 ~ F22
Image Size Φ23 mm(4/3”)
Optical Distortion -0.04%
Minimum Object Distance 1.2 m
Field of View D(22.6 mm):15.4°H(18.13 mm):12.1°V(13.6 mm):9.3°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M77 × 0.75
Mount C-Mount
Flange Back Length 17.526 mm

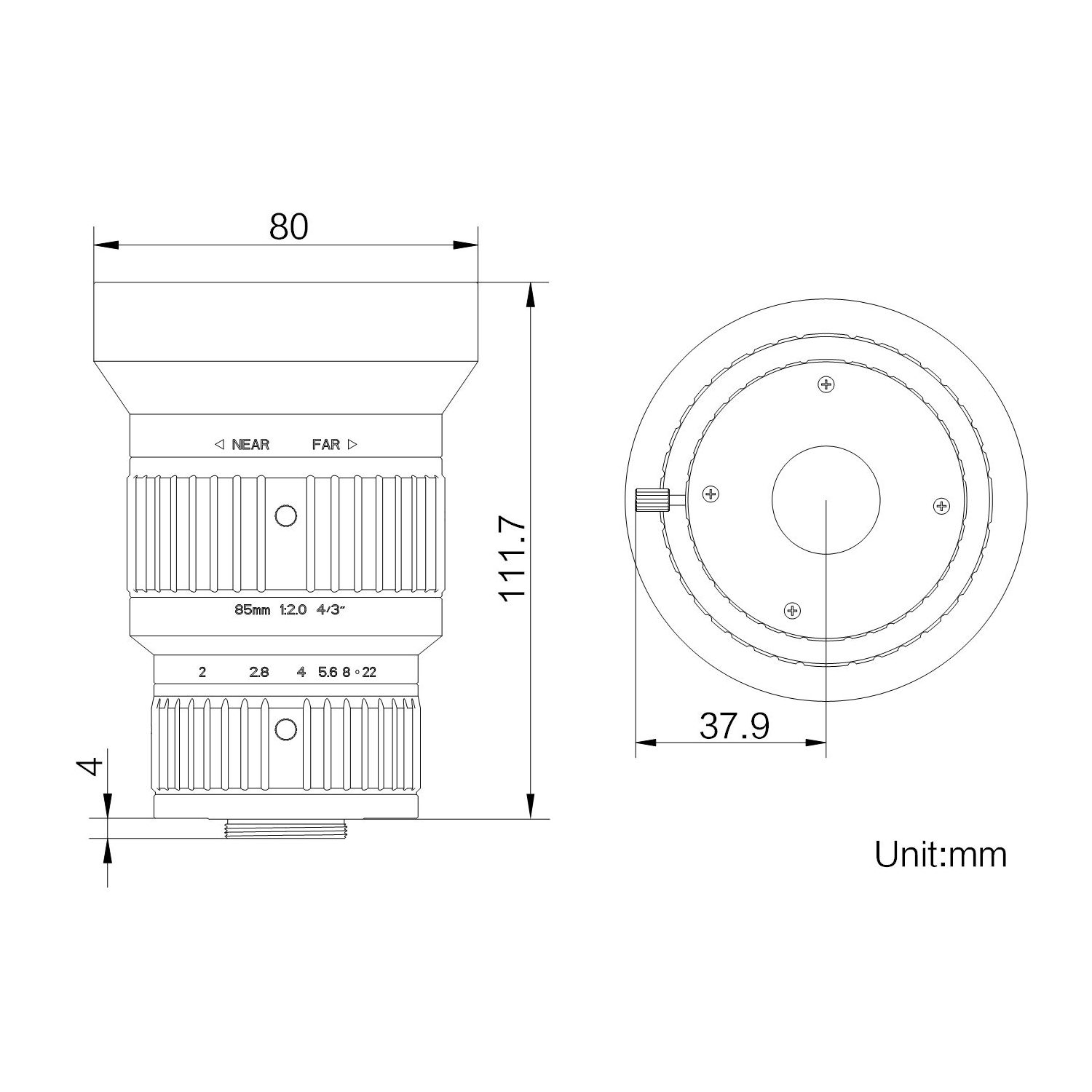

Dimension Φ80 × 111.7 mm
Weight 666 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
