DAHENG Anti-Shock/Vibration Machine-Vision Lens

6mm, 2Mpix, 1/2", C-Mount

DAHENG Anti-Shock/Vibration Machine-Vision Lens

  • High optical performance
    For up to 1/2″, 2 megapixel sensor. The F/No. is 1.2-16, and clear images can be obtained even in low light environment.
  • Anti-shock & Anti-vibration
    Through the use of original mechanical structure, the optical axis changes below 10µm, with excellent anti-shock and anti-vibration performance.
  • Compact

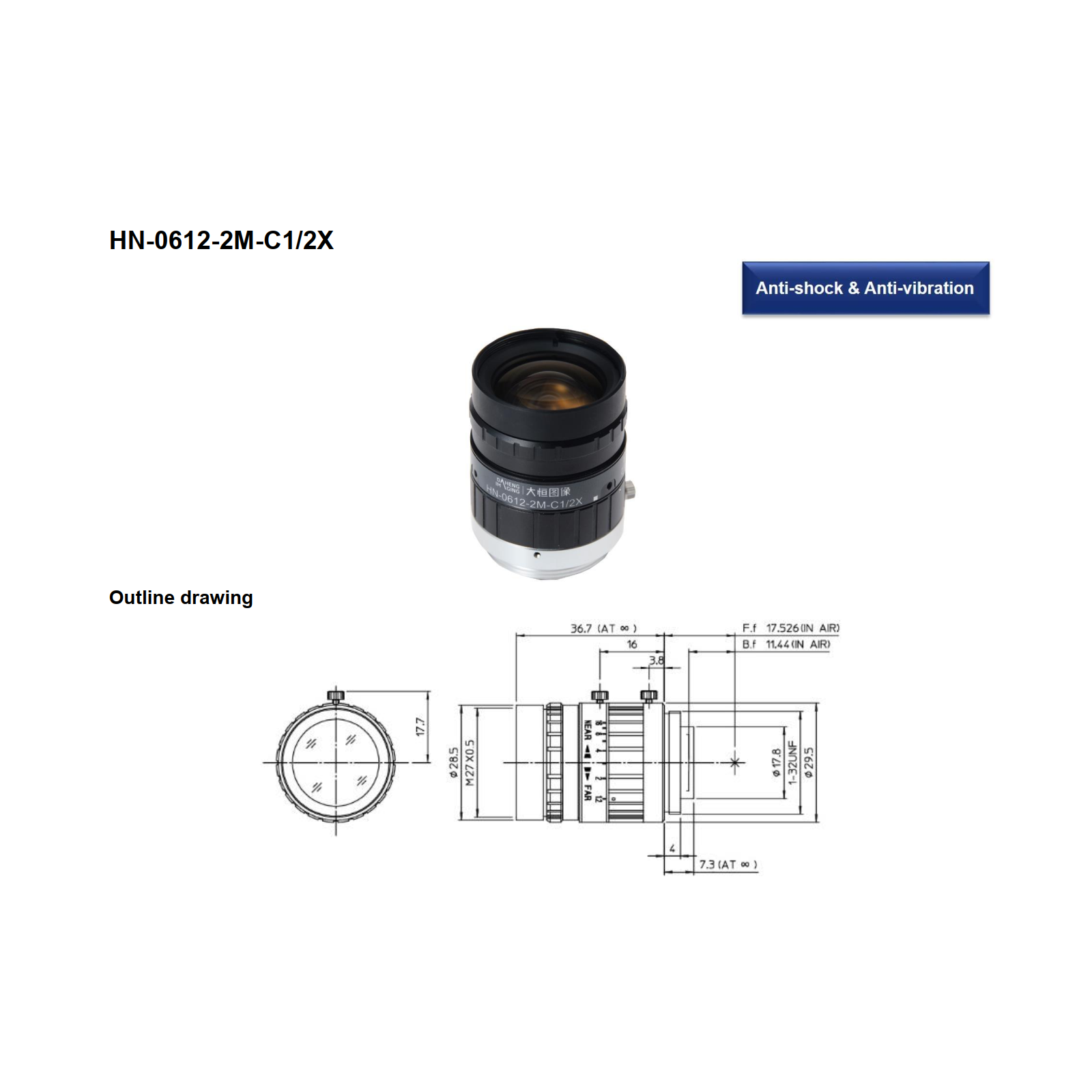

    With its diameter of φ29.5mm, the lens fits limited space requirements.
  • Easy installation
    The lens barrel is respectively provided with 3 holes that can fix the variable aperture and focus. The best fixing holes can be selected according to the setting environment. The installation is simple and convenient.
SKU: HN-0612-2M-C1/2X Categories: , Tags: , , ,

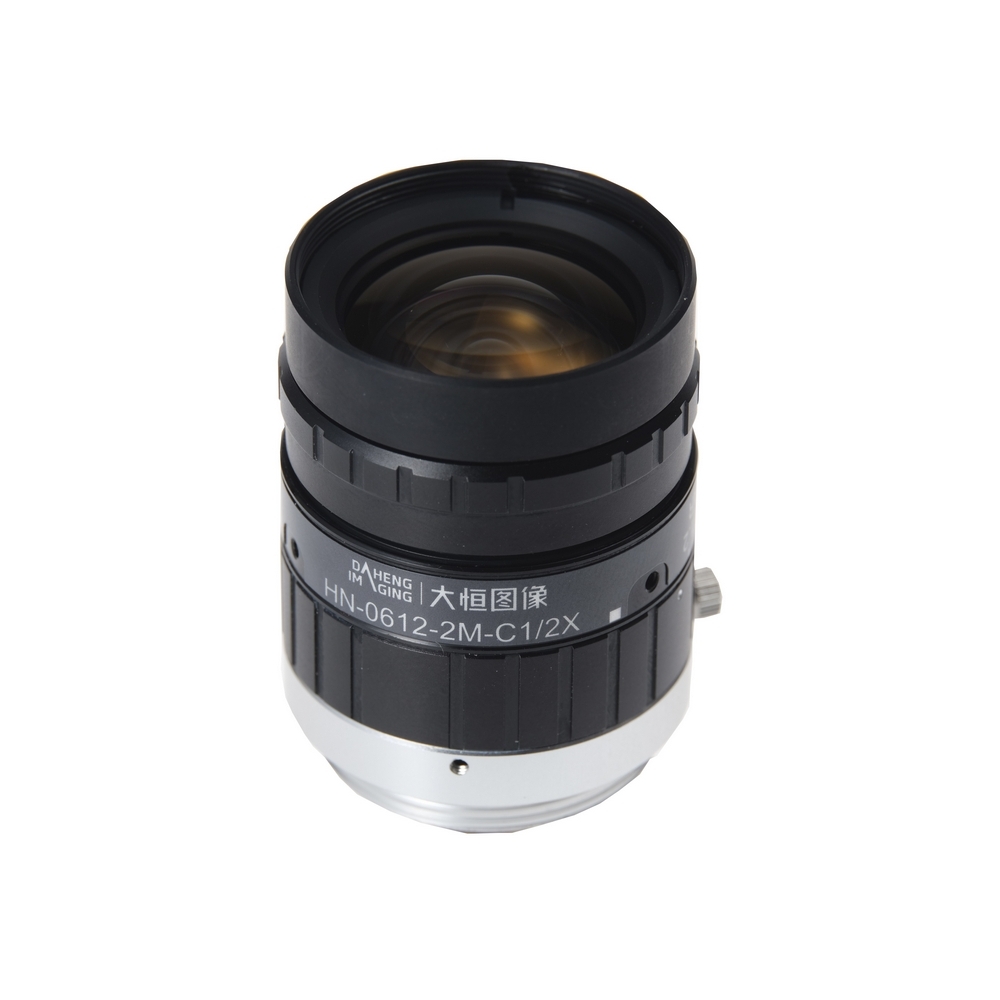

Model HN-0612-2M-C1/2X
Sensor Size 1/2″
Focal Length (mm) 6
F/No. F1.2-F16
Angle of View (H×V) 57.3°×43.8°(1/2″)
Working Distance (mm) ∞-100
Control: Focus Manual
Control: Iris Manual
Filter Thread (mm) M27×0.5
Mount C-mount
Weight(g) 50
Distortion (%) -1.84
Dimensions(DXL)(mm) φ29.5×36.7
