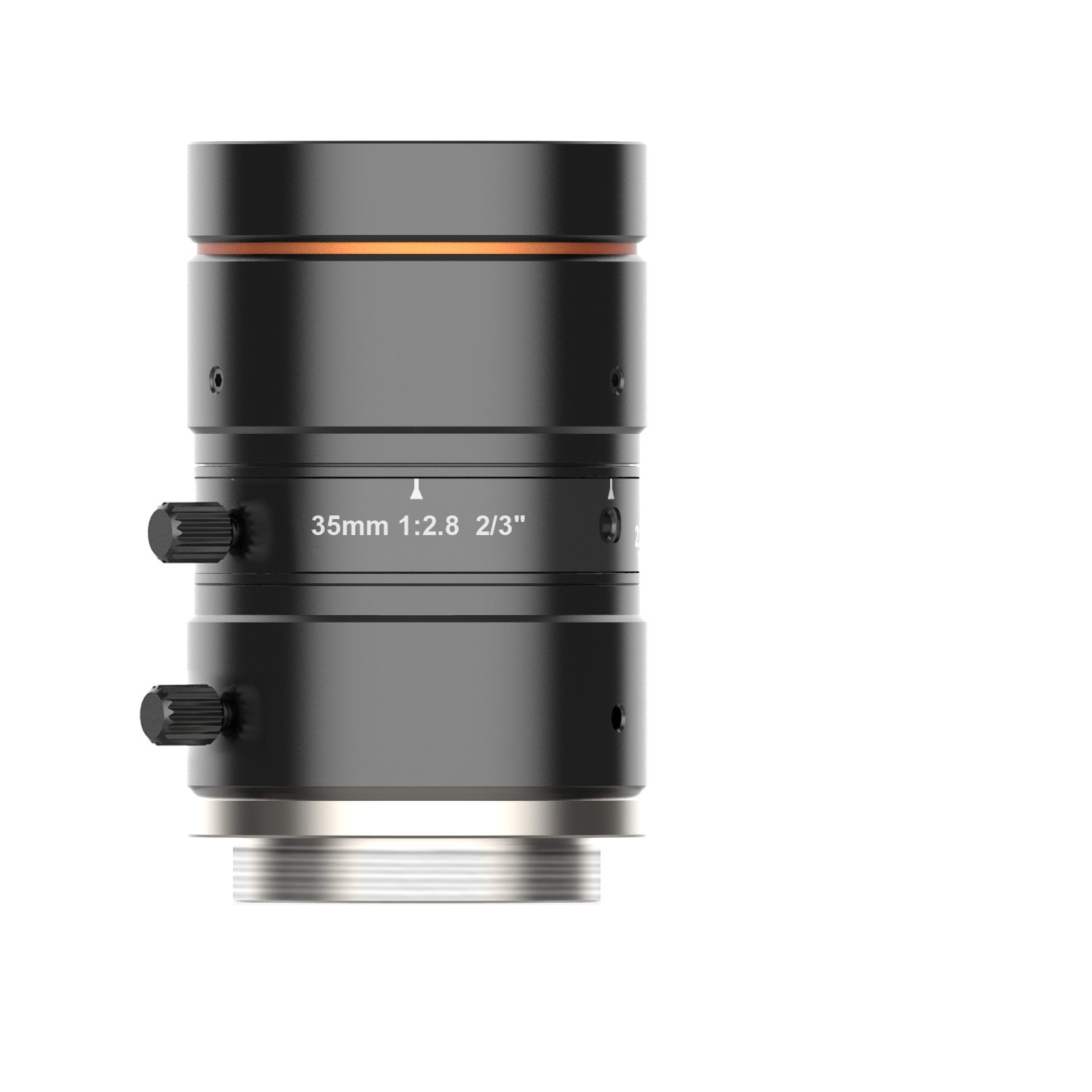

MVL-MF3528M-8MP

HIKROBOT Lens, FA Series, MF

35mm, F2.8 ~ F16, Ø 11mm (2/3''), C-Mount

HIKROBOT Lens, FA Series, MF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

Data SheetDrawing

SKU: MVL-MF3528M-8MP Categories: , Tags: , , ,
Compare
  • Ultra-high resolution and consistency of image clarity
  • Ultra-low distortion and higher relative illumination
  • Achromatic optical system design, better image performance with color camera
  • Supports ultra-short working distance with good optical performance
  • Compact design, excellent vibration resistance and high and low temperature performance

Model Product Model MVL-MF3528M-8MP
Type 35mm, F2.8, 2/3″, 8MP Lens, C-Mount
Performance Focal length 35 mm
F-Number F2.8 ~ F16
Image Size Φ11 mm(2/3”)
Distortion 0.02%
Minimum Object Distance 0.15 m
Field of View D(11.1 mm):15.26° H(8.45 mm):11.65° V(7.07 mm):9.76°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M30.5 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm

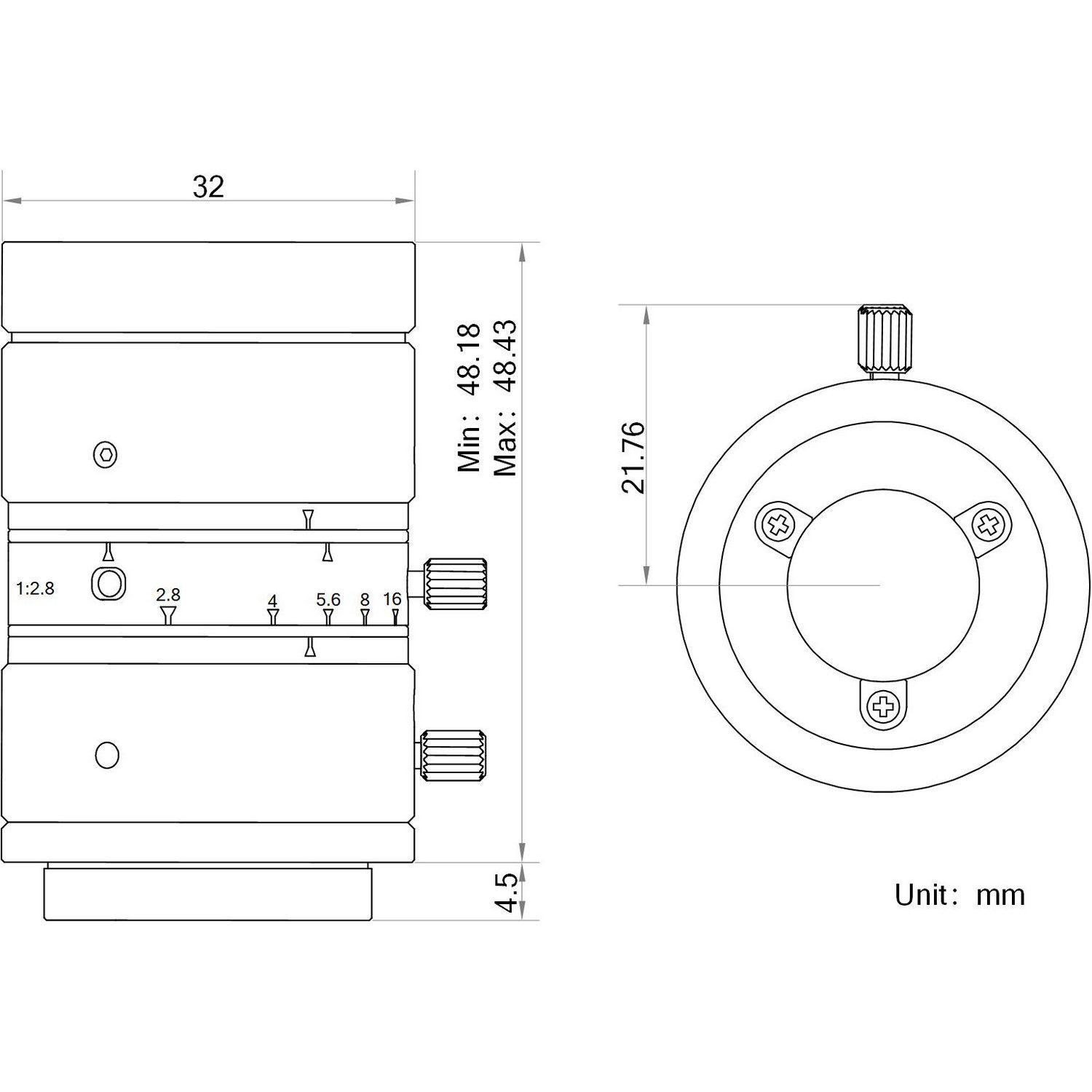

Dimension Φ32 × 48.43 mm
Weight 84.3 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
