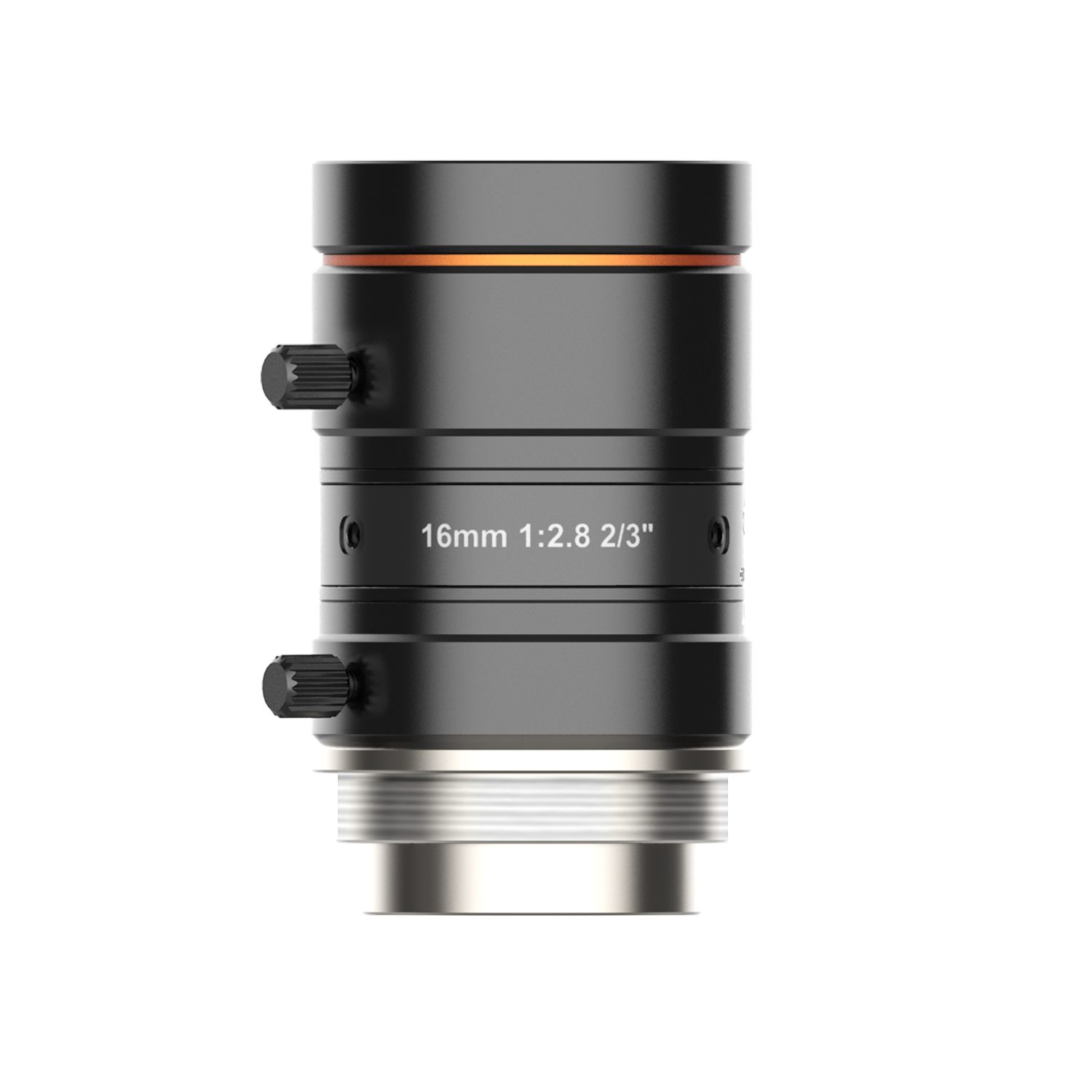

MVL-MF1628M-8MP

HIKROBOT Lens, FA Series, MF

16mm, F2.8 ~ F16, Ø 11mm (2/3''), C-Mount

HIKROBOT Lens, FA Series, MF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

DrawingData Sheet

SKU: MVL-MF1628M-8MP Categories: , Tags: , , ,
Compare
  • Ultra-high resolution and consistency of image clarity
  • Ultra-low distortion and higher relative illumination
  • Achromatic optical system design, better image performance with color camera
  • Supports ultra-short working distance with good optical performance
  • Compact design, excellent vibration resistance and high and low temperature performance

Model Product Model MVL-MF1628M-8MP
Type 16mm, F2.8, 2/3″, 8MP Lens, C-Mount
Performance Focal length 16 mm
F-Number F2.8 ~ F16
Image Size Φ11 mm(2/3”)
Distortion 0.33%
Minimum Object Distance 0.1 m
Field of View D(11.1 mm):37.39° H(8.45 mm):28.9° V(7.07 mm):24.33°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M27 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm

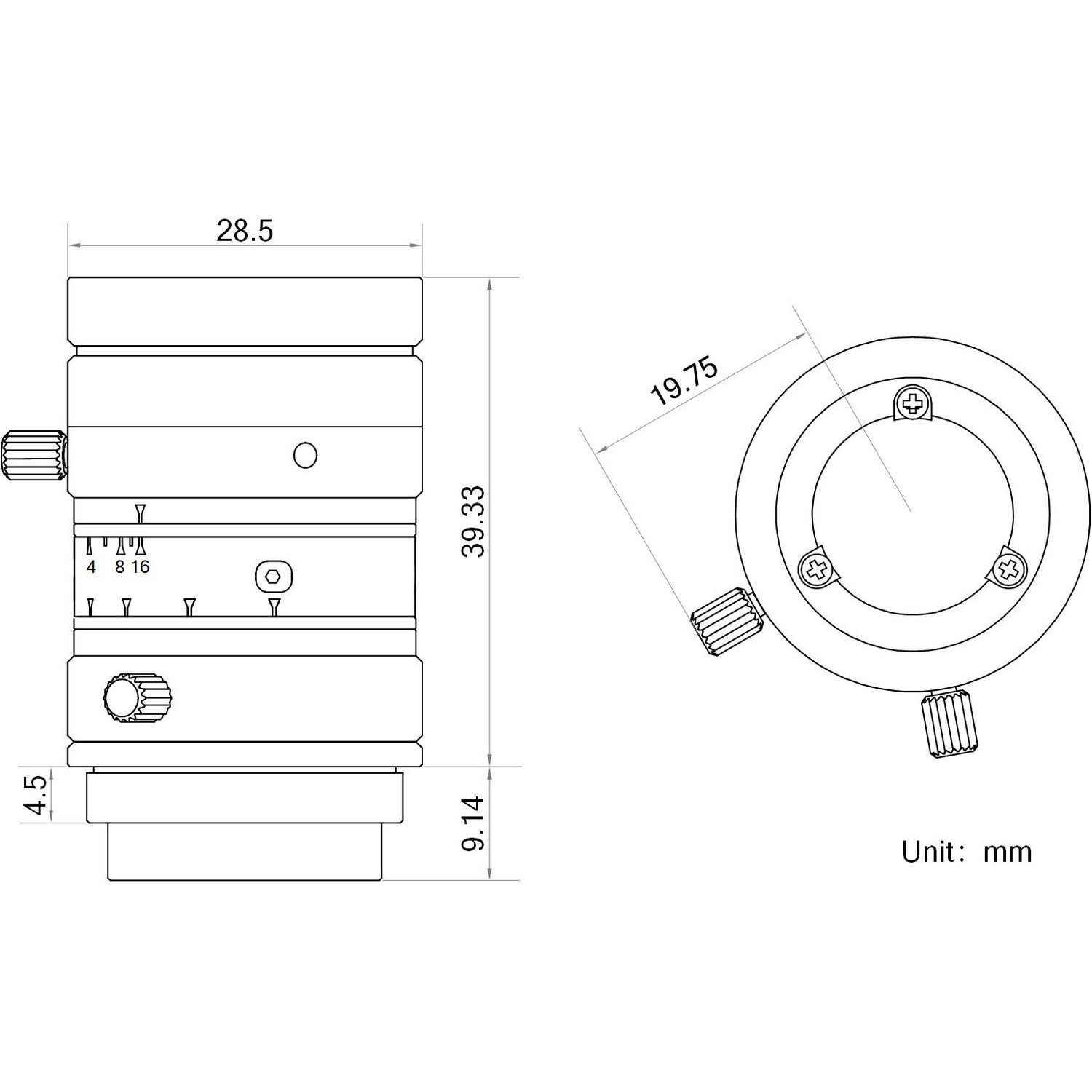

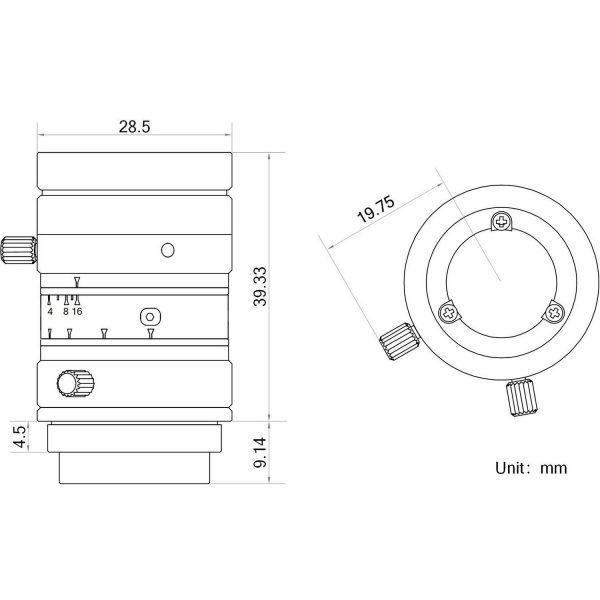

Dimension Φ28.5 × 39.33 mm
Weight 57.1 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
