MVL-HF1628M-6MPE

HIKROBOT Lens, FA Series, HF

16mm, F2.8 ~ F16, Ø 9mm (1/1.8''), C-Mount

HIKROBOT Lens, FA Series, HF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

SKU: MVL-HF1628M-6MPE Categories: , Tags: , , ,
Compare
  • Higher image clarity and contrast ratio
  • Ultra-low distortion and higher relative illumination rate
  • Good optical performance at ultra-short working distance
  • Compact design, convenient for device integration

Model Product Model MVL-HF1628M-6MPE
Type 16mm, F2.8, 1/1.8″, 6MP Lens, C-Mount
Performance Focal length 16 mm
F-Number F2.8 ~ F16
Image Size Φ9 mm(1/1.8”)
Distortion -0.018%
Minimum Operation Distance 0.1 m
Field of View D(8.96mm):31.28° H(7.38mm):25.94° V(4.92mm):17.48°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M27×P0.5
Mount C-Mount
Flange Back Length 17.526 mm

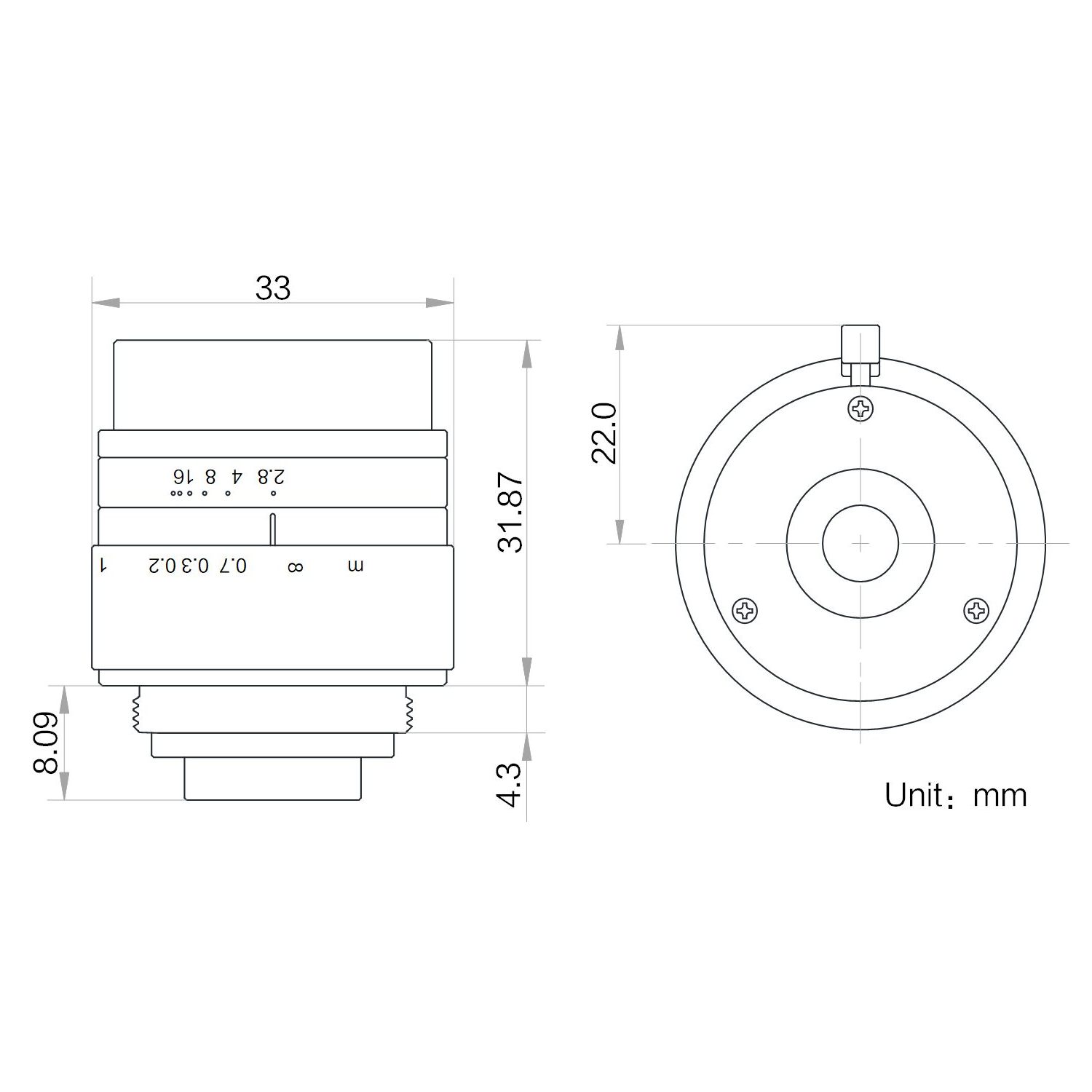

Dimension Φ33×31.9 mm
Weight 56.1 g
Temperature -10 ~ 50℃
General Certification RoHS2.0
